    H05V2V2-F/H05V2V2H2-F

    Application and Description

    These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperature (like lighting system apparatuses) without contact with warm parts and radiations.

    Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools. The maximum conductor temperature in normal use:90°C.While high temperature use, skin contact must be avoided.

    Standard and Approval

    CEI 20-20/12

    CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267)

    CENELEC HD 21.12 S1 / EN50265-2-1

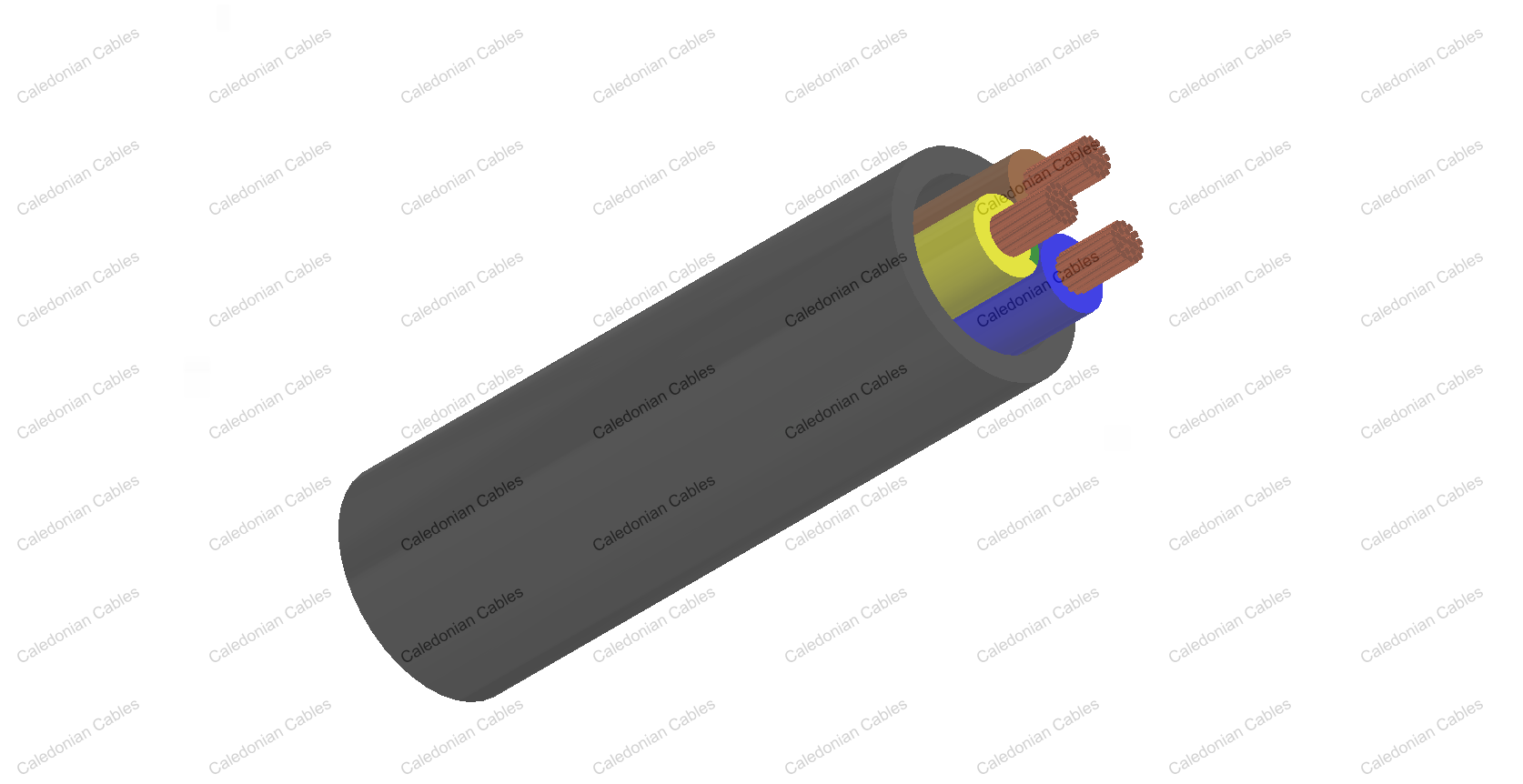

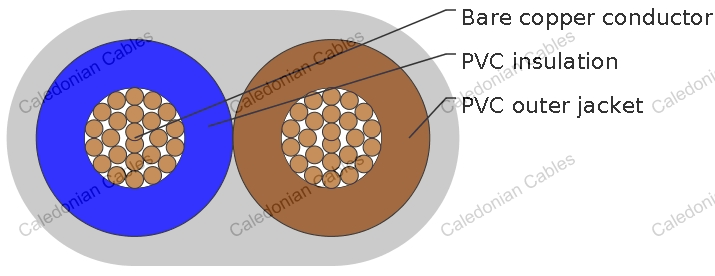

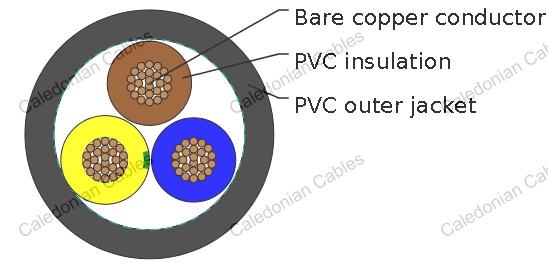

    Cable Construction

    Bare copper fine wire conductor

    Stranded to DIN VDE 0295 cl. 5, IEC 60228 cl. 5 and HD 383

    PVC core insulation TI3 to VDE-0281 Part 1

    Green-yellow grounding (3 conductors and above)

    Color coded to VDE-0293-308

    PVC outer jacket TM3

    Technical Characteristics

    Working voltage 300/500 volts
    Test voltage 2000 volts
    Flexing bending radius 15 x Ø
    Static bending radius 4 x Ø
    Flexing temperature +5°C to +90°C
    Static temperature -40°C to +90°C
    Short circuit temperature +160°C
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores ×Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm mm kg/km kg/km
    H05V2V2-F
    18(24/32) 2 x 0.75 0.6 0.8 6.2 14.4 54.2
    18(24/32) 3 x 0.75 0.6 0.8 6.6 21.6 65
    18(24/32) 4 x 0.75 0.6 0.8 7.1 29 77.7
    18(24/32) 5 x 0.75 0.6 0.9 8 36 97.3
    17(32/32) 2 x 1.00 0.6 0.8 6.4 19 60.5
    17(32/32) 3 x 1.00 0.6 0.8 6.8 29 73.1
    17(32/32) 4 x 1.00 0.6 0.9 7.6 38 93
    17(32/32) 5 x 1.00 0.6 0.9 8.3 48 111.7
    16(30/30) 2 x 1.50 0.7 0.8 7.4 29 82.3
    16(30/30) 3 x 1.50 0.7 0.9 8.1 43 104.4
    16(30/30) 4 x 1.50 0.7 1.0 9 58 131.7
    16(30/30) 5 x 1.50 0.7 1.1 10 72 163.1
    14(50/30) 2 x 2.50 0.8 1.0 9.2 48 129.1
    14(50/30) 3 x 2.50 0.8 1.1 10 72 163
    14(50/30) 4 x 2.50 0.8 1.1 10.9 96 199.6
    14(50/30) 5 x 2.50 0.8 1.2 12.4 120 245.4
    12(56/28) 3 x 4.00 0.8 1.2 11.3 115 224
    12(56/28) 4 x 4.00 0.8 1.2 12.5 154 295
    12(56/28) 5 x 4.00 0.8 1.4 13.7 192 361
    10(84/28) 3 x 6.00 0.8 1.1 13.1 181 328
    10(84/28) 4 x 6.00 0.8 1.3 13.9 230 490
    H05V2V2H2-F
    18(24/32) 2 x 0.75 0.6 0.8 4.2 x 6.8 14.1 48
    17(32/32) 2 x 1.00 0.6 0.8 4.4 x 7.2 19 57
