    H07RN-F

    Application and Description

    These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/ greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also suitable for fixed installations on plaster, temporary buildings and residential barracks and for use in drainage and water treatment, cold environments and severe industrial environments. Max operating voltage in single or three phase system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or protected installation Uo/U is 600/1000 volts. These cables are resistant to flame, acids, and oil penetration.

    Standard and Approval

    HD22.4 S3, VDE-0282 Part-4, CEI 20-19/4 / 20-35 (EN60332-1), IEC 60245-4,
    CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

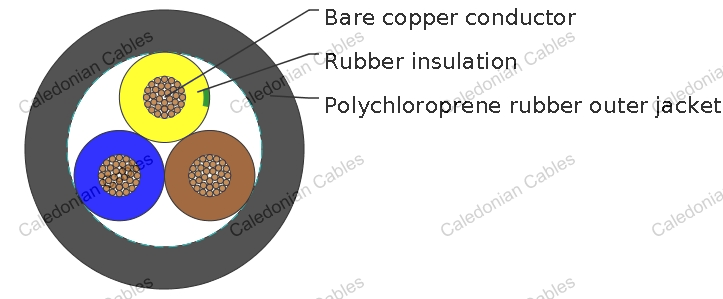

    Cable Construction

    - Fine bare copper strands
    - Strands to VDE-0295 Class-5, IEC 60228 Class-5
    - Rubber core insulation EI4 to VDE-0282 Part-1
    - Color code VDE-0293-308 and HD 186
    - Green-yellow grounding, 3 conductors and above
    - Polychloroprene rubber (neoprene) jacket EM2

    Technical Characteristics

    - Working voltage: 450/750 volts
    - Test voltage: 2500 volts
    - Flexing bending radius: 6 x Ø
    - Fixed bending radius: 4.0 x Ø
    - Flexing Temperature: -25º C to +60º C
    - Fixed Temperature: -40º C to +60º C
    - Short circuit temperature: +200 º C
    - Flame retardant: IEC 60332.1
    - Insulation resistance: 20 MΩ x km

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIAMETER MM MIN-MAX NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
    17(32/32) 2 x 1 0.8 1.3 7.7-10 19 89
    17(32/32) 3 x 1 0.8 1.4 8.3-10.7 29 111
    17(32/32) 4 x 1 0.8 1.5 9.2-11.9 38 146
    16(30/30) 1 x 1.5 0.8 1.4 5.7-7.1 14.4 59
    16(30/30) 2 x 1.5 0.8 1.5 8.5-11.0 29 135
    16(30/30) 3 x 1.5 0.8 1.6 9.2-11.9 43 165
    16(30/30) 4 x 1.5 0.8 1.7 10.2-13.1 58 200
    16(30/30) 5 x 1.5 0.8 1.8 11.2-14.4 72 240
    16(30/30) 7 x 1.5 0.8 2.6 14.5-17.5 101 385
    16(30/30) 12 x 1.5 0.8 2.9 17.6-22.4 173 516
    16(30/30) 19 x 1.5 0.8 3.2 20.7-26.3 274 800
    16(30/30) 24 x 1.5 0.8 3.5 24.3-30.7 346 882
    14(50/30) 1 x 2.5 0.9 1.4 6.3-7.9 24 72
    14(50/30) 2 x 2.5 0.9 1.7 10.2-13.1 48 195
    14(50/30) 3 x 2.5 0.9 1.8 10.9-14.0 72 235
    14(50/30) 4 x 2.5 0.9 1.9 12.1-15.5 96 290
    14(50/30) 5 x 2.5 0.9 2.0 13.3-17.0 120 345
    14(50/30) 7 x 2.5 0.9 2.8 16.5-20.0 168 520
    14(50/30) 12 x 2.5 0.9 3.1 20.6-26.2 288 810
    14(50/30) 19 x 2.5 0.9 3.5 25.5-31.0 456 1200
    14(50/30) 24 x 2.5 0.9 3.9 28.8-36.4 576 1650
    12(56/28) 1 x 4 1.0 1.5 7.2-9.0 38 99
    12(56/28) 2 x 4 1.0 1.8 11.8-15.1 77 270
    12(56/28) 3 x 4 1.0 1.9 12.7-16.2 115 320
    12(56/28) 4 x 4 1.0 2 14.0-17.9 154 395
    12(56/28) 5 x 4 1.0 2.2 15.6-19.9 192 485
    12(56/28) 7 x 4 1.0 3.1 18.2-21.8 269 681
    10(84/28) 1 x 6 1.0 1.6 7.9-9.8 58 130
    10(84/28) 3 x 6 1.0 2.1 14.1-18.0 173 495
    10(84/28) 4 x 6 1.0 2.3 15.7-20.0 230 610
    10(84/28) 5 x 6 1.2 2.5 17.5-22.2 288 760
    8(80/26) 1 x 10 1.2 1.8 9.5-11.9 96 230
    8(80/26) 3 x 10 1.2 3.3 19.1-24.2 288 880
    8(80/26) 4 x 10 1.2 3.4 20.9-26.5 384 1060
    8(80/26) 5 x 10 1.2 3.6 22.9-29.1 480 1300
    6(128/26) 1 x 16 1.2 1.9 10.8-13.4 154 320
    6(128/26) 3 x 16 1.2 3.5 21.8-27.6 461 1090
    6(128/26) 4 x 16 1.2 3.6 23.8-30.1 614 1345
    6(128/26) 5 x 16 1.2 3.9 26.4-33.3 768 1680
    4(200/26) 1 x25 1.4 2.0 12.7-15.8 240 450
    4(200/26) 4 x 25 1.4 4.1 28.9-36.6 960 1995
    4(200/26) 5 x 25 1.4 4.4 32.0-40.4 1200 2470
    2(280/26) 1 x 35 1.4 2.2 14.3-17.9 336 605
    2(280/26) 3 x 35 1.4 4.1 29.3-37.1 1008 1900
    2(280/26) 4 x 35 1.4 4.4 32.5-41.1 1344 2645
    2(280/26) 5 x 35 1.4 4.7 37.0-45.0 1680 2810
    1(400/26) 1 x 50 1.6 2.4 16.5-20.6 480 825
    1(400/26) 4 x 50 1.6 4.8 37.7-47.5 1920 3635
    1(400/26) 5 x 50 1.6 5.1 40.0-50.8 2400 4050
    2/0(356/24) 1 x 70 1.6 2.6 18.6-23.3 672 1090
    2/0(356/24) 4 x 70 1.6 5.2 42.7-54.0 2688 4830
    3/0(485/24) 1 x 95 1.8 2.8 20.8-26.0 912 1405
    3/0(485/24) 4 x 95 1.8 5.9 48.4-61.0 3648 6320
    4/0(614/24) 1x 120 1.8 3 22.8-28.6 1152 1746
    4/0(614/24) 4 x 120 1.8 6 53.0-66.0 4608 6830
    300MCM(765/24) 1 x 150 2 3.2 25.2-31.4 1440 1887
    300MCM(765/24) 4 x 150 2 6.4 58.0-73.0 5760 8320
    350MCM(944/24) 1 x 185 2.2 3.4 27.6-34.4 1776 2274
    350MCM(944/24) 4 x 185 2.2 6.8 64.0-80.0 7104 9800
    500MCM(1221/24) 1x 240 2.4 3.5 30.6-38.3 23.4 2956
    500MCM(1221/24) 4x 240 2.4 7.0 72.0-90.0 9216 12100
    - 1 x 300 2.6 3.6 33.5-41.9 2880 3479
    - 1 x 400 2.8 3.8 - - 4500
    - 1x 500 3 4 - - 5800
