    H05Z-U/H07Z-U/H07Z-R

    Application and Description

    These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts. Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90º C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic quipment is installed.

    Standard and Approval

    • HD 22.9 S2
    • VDE-0282 Part-9
    • BS 7211
    • IEC 60754-2
    • EN 50267
    • VDE 0482-267
    • CE Low Voltage
    • Directive 73/23/EEC and 93/68/EEC
    • ROHS compliant

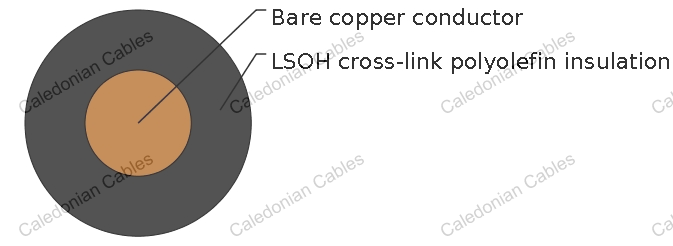

    Cable Construction

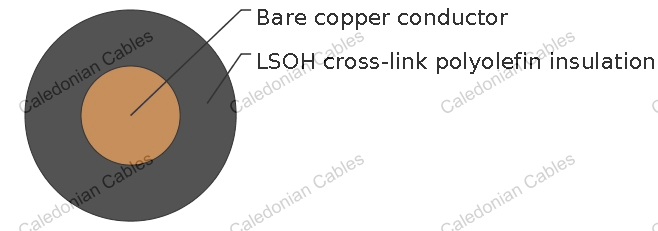

    Solid bare copper single wire to IEC 60228 Cl-1(H05Z-U / H07Z-U)

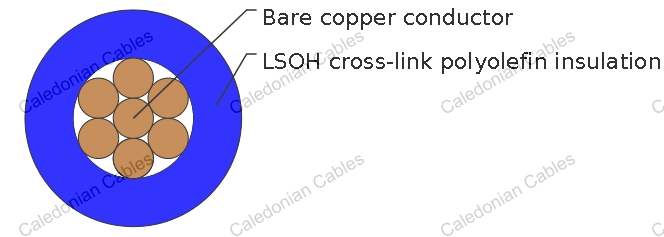

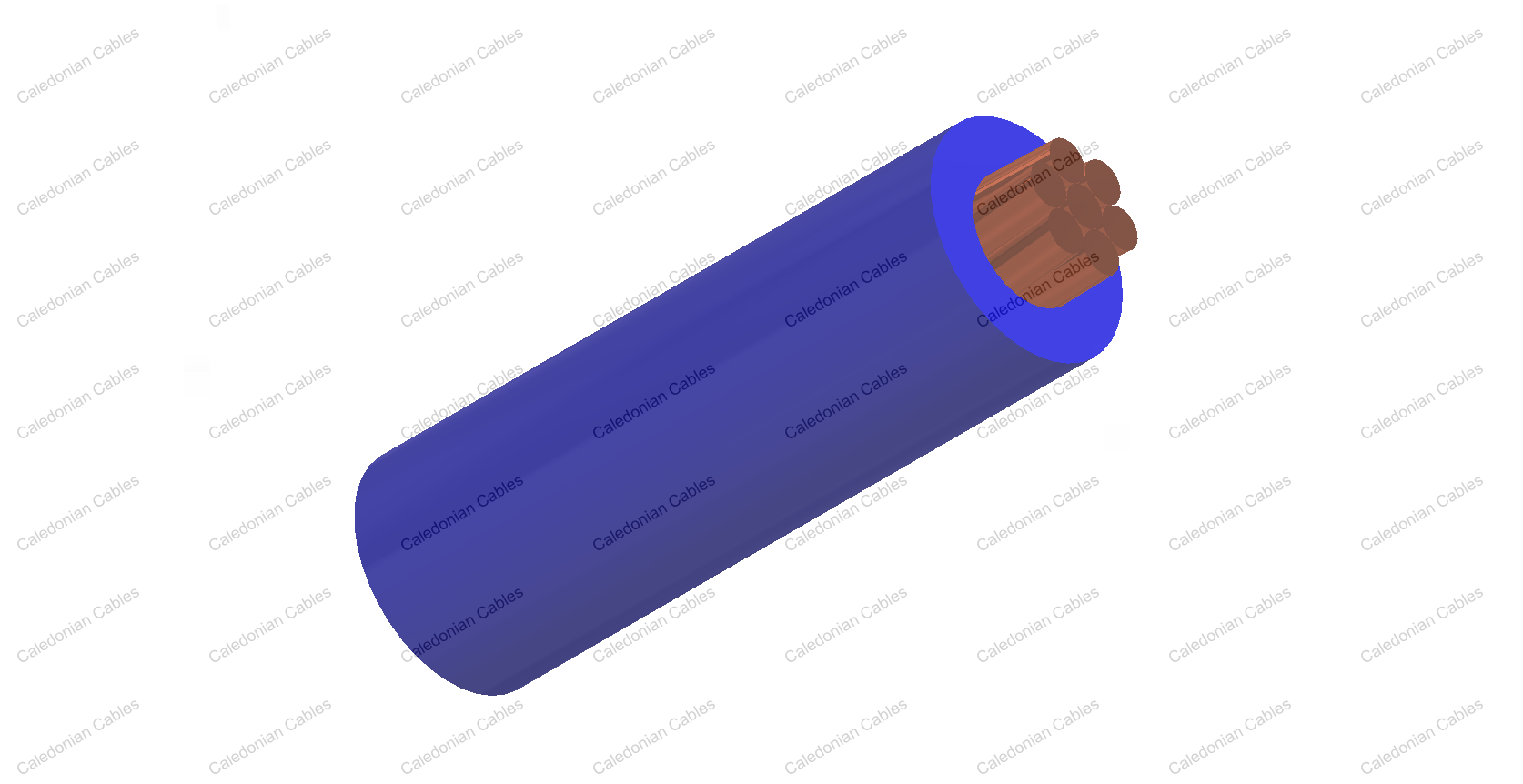

    Bare copper strands to IEC 60228 Cl-2 (H07Z-R)
    Cross-link polyolefin EI5 core insulation
    Cores to VDE-0293 colors
    LSOH - low smoke, zero halogen

    Technical Characteristics

    WORKING VOLTAGE 300/500v (H05Z-U), 450/750v (H07Z-U / H07Z-R)
    TEST VOLTAGE 2500 volts
    FLEXING BENDING RADIUS 15 x Ø
    STATIC BENDING RADIUS 10 x Ø
    FLEXING TEMPERATURE +5 ºC to +90 ºC
    SHORT CIRCUIT TEMPERATURE +250 ºC
    FLAME RETARDANT IEC 60332.1
    INSULATION RESISTANCE 10 MΩ x km

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
    # X MM² MM MM KG/KM KG/KM
    H05Z-U
    20 1 x 0.5 0.6 2.0 4.8 8
    18 1 x 0.75 0.6 2.2 7.2 12
    17 1 x 1 0.6 2.3 9.6 14
    H07Z-U
    16 1 x 1.5 0,7 2.8 14.4 20
    14 1 x 2.5 0,8 3.3 24 30
    12 1 x 4 0,8 3.8 38 45
    10 1 x 6 0,8 4.3 58 65
    8 1 x 10 1,0 5.5 96 105
    H07Z-R
    16(7/24) 1 x 1.5 0.7 3.0 14.4 21
    14(7/22) 1 x 2.5 0.8 3.6 24 33
    12(7/20) 1 x 4 0.8 4.1 39 49
    10(7/18) 1 x 6 0.8 4.7 58 71
    8(7/16) 1 x 10 1 6.0 96 114
    6(7/14) 1 x 16 1 6.8 154 172
    4(7/12) 1 x 25 1.2 8.4 240 265
    2(7/10) 1 x 35 1.2 9.3 336 360
    1(19/13) 1 x 50 1.4 10.9 480 487
    2/0(19/11) 1 x 70 1,4 12.6 672 683
    3/0(19/10) 1 x 95 1,6 14.7 912 946
    4/0(37/12) 1 x 120 1,6 16.0 1152 1174
    300MCM(37/11) 1 x 150 1,8 17.9 1440 1448
    350MCM(37/10) 1 x 185 2,0 20.0 1776 1820
    500MCM(61/11) 1 x 240 2,2 22.7 2304 2371
