The cables are used for applications with medium mechanical stresses and sharp bending in one place. They are suitable for use in dry, damp and wet rooms as power and control cable, especially on hoisting equipment, handling systems, machine tools, etc.

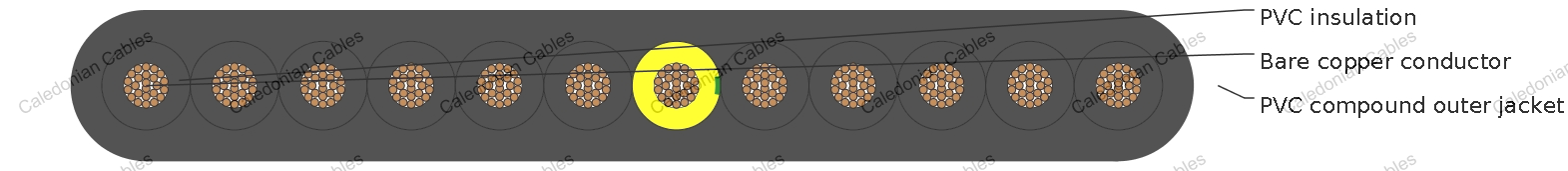

- Fine bare or tinned copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- PVC compound insulation T12 to VDE 0207 part 4
- Color coded to VDE-0293-308
- PVC compound outer jacket TM2 to VDE 0207 part 5
-Working voltage:
H05VVH6-F : 300/500 V
H07VVH6-F: 450/700 V
-Test voltage:
H05VVH6-F : 2 KV
H07VVH6-F: 2.5 KV
-Bending radius: 10 × cable Ø
-Flexing temperature: - 5º C to + 70º C
-Static temperature :-40º C to +70º C
-Flame retardant: test class B according to VDE 0472 part 804, IEC 60332-1
-Insulation resistance: 20 MΩ x km
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² | NOMINAL THICKNESS OF INSULATION MM | NOMINAL THICKNESS OF SHEATH MM | NOMINAL OVERALL DIAMETER MM | NOMINAL COPPER WEIGHT KG/KM | NOMINAL WEIGHT KG/KM | |
|---|---|---|---|---|---|---|---|
| H05VVH6-F | |||||||
| 18(24/32) | 4 x 0.75 | 1.2 | 0.6 | 4.2 x 12.6 | 29 | 90 | |
| 18(24/32) | 8x 0.75 | 1.2 | 0.6 | 4.2 x 23.2 | 58 | 175 | |
| 18(24/32) | 12x 0.75 | 1.2 | 0.6 | 4.2 x 33.8 | 86 | 260 | |
| 18(24/32) | 18x 0.75 | 1.2 | 0.6 | 4.2 x 50.2 | 130 | 380 | |
| 18(24/32) | 24x 0.75 | 1.2 | 0.6 | 4.2 x 65.6 | 172 | 490 | |
| 17(32/32) | 4 x 1.00 | 1.4 | 0.7 | 4.4 x 13.4 | 38 | 105 | |
| 17(32/32) | 5×1.00 | 1.4 | 0.7 | 4.4 x 15.5 | 48 | 120 | |
| 17(32/32) | 8 x 1.00 | 1.4 | 0.7 | 4.4 x 24.8 | 77 | 205 | |
| 17(32/32) | 12x 1.00 | 1.4 | 0.7 | 4.4 x 36.2 | 115 | 300 | |
| 17(32/32) | 18x 1.00 | 1.4 | 0.7 | 4.4 x 53.8 | 208 | 45 | |
| 17(32/32) | 24x 1.00 | 1.4 | 0.7 | 4.4 x 70.4 | 230 | 590 | |
| H07VVH6-F | |||||||
| 16(30/30) | 4 x1.5 | 1.5 | 0.8 | 5.1 x 14.8 | 58 | 130 | |
| 16(30/30) | 5 x1.5 | 1.5 | 0.8 | 5.1 x 17.7 | 72 | 158 | |
| 16(30/30) | 7 x1.5 | 1.5 | 0.8 | 5.1 x 25.2 | 101 | 223 | |
| 16(30/30) | 8 x1.5 | 1.5 | 0.8 | 5.1 x 27.3 | 115 | 245 | |
| 16(30/30) | 10 x1.5 | 1.5 | 0.8 | 5.1 x 33.9 | 144 | 304 | |
| 16(30/30) | 12 x1.5 | 1.5 | 0.8 | 5.1 x 40.5 | 173 | 365 | |
| 16(30/30) | 18 x1.5 | 1.5 | 0.8 | 6.1 x 61.4 | 259 | 628 | |
| 16(30/30) | 24 x1.5 | 1.5 | 0.8 | 5.1 x 83.0 | 346 | 820 | |
| 14(30/50) | 4 x2.5 | 1.9 | 0.8 | 5.8 x 18.1 | 96 | 192 | |
| 14(30/50) | 5 x2.5 | 1.9 | 0.8 | 5.8 x 21.6 | 120 | 248 | |
| 14(30/50) | 7 x2.5 | 1.9 | 0.8 | 5.8 x 31.7 | 168 | 336 | |
| 14(30/50) | 8 x2.5 | 1.9 | 0.8 | 5.8 x 33.7 | 192 | 368 | |
| 14(30/50) | 10 x2.5 | 1.9 | 0.8 | 5.8 x 42.6 | 240 | 515 | |
| 14(30/50) | 12 x2.5 | 1.9 | 0.8 | 5.8 x 49.5 | 288 | 545 | |
| 14(30/50) | 24 x2.5 | 1.9 | 0.8 | 5.8 x 102.0 | 480 | 1220 | |
| 12(56/28) | 4 x4 | 2.5 | 0.8 | 6.7 x 20.1 | 154 | 271 | |
| 12(56/28) | 5 x4 | 2.5 | 0.8 | 6.9 x 26.0 | 192 | 280 | |
| 12(56/28) | 7 x4 | 2.5 | 0.8 | 6.7 x 35.5 | 269 | 475 | |
| 10(84/28) | 4 x6 | 3.0 | 0.8 | 7.2 x 22.4 | 230 | 359 | |
| 10(84/28) | 5 x6 | 3.0 | 0.8 | 7.4 x 31.0 | 288 | 530 | |
| 10(84/28) | 7 x6 | 3.0 | 0.8 | 7.4 x 43.0 | 403 | 750 | |
| 8(80/26) | 4 x10 | 4.0 | 1.0 | 9.2 x 28.7 | 384 | 707 | |
| 8(80/26) | 5 x10 | 4.0 | 1.0 | 11.0 x 37.5 | 480 | 1120 | |
| 6(128/26) | 4 x16 | 5.6 | 1.0 | 11.1 x 35.1 | 614 | 838 | |
| 6(128/26) | 5 x16 | 5.6 | 1.0 | 11.2 x 43.5 | 768 | 1180 | |
