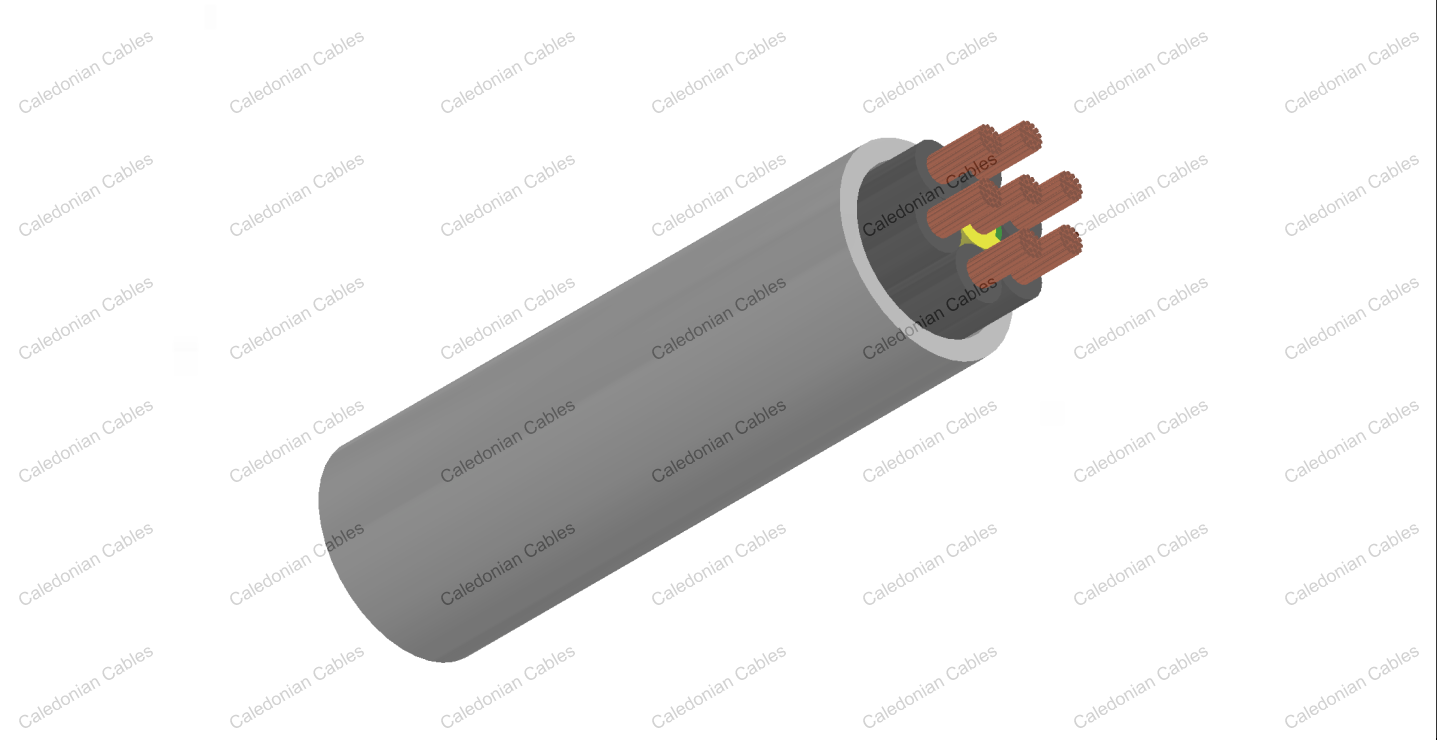

    H05VV5-F(NYSLYÖ-JZ)

    Application and Description

    These cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened termination and connection cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies. Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working processes.

    Standard and Approval

    • HD 21.13 S1
    • VDE-0281 Part-13
    • CEI 20-20/13
    • CEI 20-35 (EN60332-1)
    • CEI 20-52
    • UL 2464

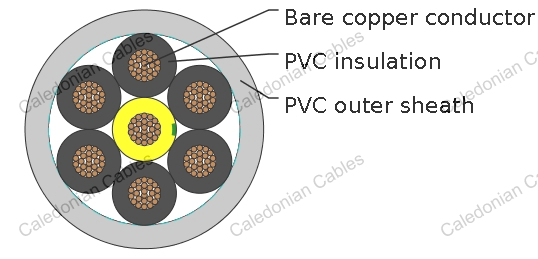

    Cable Construction

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    PVC insulation T12 to DIN VDE 0281 part 1
    Green-yellow grounding (3 conductors and above)
    Cores to VDE-0293 colors
    PVC sheath TM5 to DIN VDE 0281 part 1

    Technical Characteristics

    WORKING VOLTAGE 300/500v
    TEST VOLTAGE 2000volts
    FLEXING BENDING RADIUS 7.5 x Ø
    STATIC BENDING RADIUS 4 x Ø
    FLEXING TEMPERATURE -5 ºC to +70 ºC
    STATIC TEMPERATURE -40 ºC to +70 ºC
    SHORT CIRCUIT TEMPERATURE +150 ºC
    FLAME RETARDANT IEC 60332.1
    INSULATION RESISTANCE 20 MΩ x km

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
    # X MM² MM MM MM KG/KM KG/KM
    20(16/32) 2x0.50 0.6 0.7 5.6 9.7 46
    18(24/32) 2x0.75 0.6 0.8 6.2 14.4 52
    17(32/32) 2x1 0.6 0.8 6.6 19.2 66
    16(30/30) 2x1.5 0.7 0.8 7.6 29 77
    14(50/30) 2x2.5 0.8 0.9 9.2 48 110
    20(16/32) 3x0.50 0.6 0.7 5.9 14.4 54
    18(24/32) 3x0.75 0.6 0.8 6.6 21.6 68
    17(32/32) 3x1 0.6 0.8 7 29 78
    16(30/30) 3x1.5 0.7 0.9 8.2 43 97
    14(50/30) 3x2.5 0.8 1 10 72 154
    20(16/32) 4x0.50 0.6 0.8 6.6 19 65
    18(24/32) 4x0.75 0.6 0.8 7.2 28.8 82
    17(32/32) 4x1 0.6 0.8 7.8 38.4 104
    16(30/30) 4x1.5 0.7 0.9 9.3 58 128
    14(50/30) 4x2.5 0.8 1.1 10.9 96 212
    20(16/32) 5x0.50 0.6 0.8 7.3 24 80
    18(24/32) 5x0.75 0.6 0.9 8 36 107
    17(32/32) 5x1 0.6 0.9 8.6 48 123
    16(30/30) 5x1.5 0.7 1 10.3 72 149
    14(50/30) 5x2.5 0.8 1.1 12.1 120 242
    20(16/32) 6x0.50 0.6 0.9 8.1 28.8 104
    18(24/32) 6x0.75 0.6 0.9 8.7 43.2 132
    17(32/32) 6x1 0.6 1 9.5 58 152
    16(30/30) 6x1.5 0.7 1.1 11.2 86 196
    14(50/30) 6x2.5 0.8 1.2 13.2 144 292
    20(16/32) 7x0.50 0.6 0.9 8.1 33.6 119
    18(24/32) 7x0.75 0.6 1 8.9 50.5 145
    17(32/32) 7x1 0.6 1 9.5 67 183
    16(30/30) 7x1.5 0.7 1.2 11.4 101 216
    14(50/30) 7x2.5 1.3 0.8 13.4 168 350
    20(16/32) 12x0.50 0.6 1.1 10.9 58 186
    18(24/32) 12x0.75 0.6 1.1 11.7 86 231
    17(32/32) 12x1 0.6 1.2 12.8 115 269
    16(30/30) 12x1.5 0.7 1.3 15 173 324
    14(50/30) 12x2.5 1.5 0.8 17.9 288 543
    20(16/32) 18x0.50 0.6 1.2 12.9 86 251
    18(24/32) 18x0.75 0.6 1.3 14.1 130 313
    17(32/32) 18x1 0.6 1.3 15.1 173 400
    16(30/30) 18x1.5 0.7 1.5 18 259 485
    14(50/30) 18x2.5 1.8 0.8 21.6 432 787
    20(16/32) 25x0.50 0.6 1.4 15.4 120 349
    18(24/32) 25x0.75 0.6 1.5 16.8 180 461
    17(32/32) 25x1 0.6 1.5 18 240 546
    16(30/30) 25x1.5 0.7 1.8 21.6 360 671
    14(50/30) 25x2.5 0.8 2.1 25.8 600 1175
    20(16/32) 36x0.50 0.6 1.5 17.7 172 510
    18(24/32) 36x0.75 0.6 1.6 19.3 259 646
    17(32/32) 36x1 0.6 1.7 20.9 346 775
    16(30/30) 36x1.5 0.7 2 25 518 905
    14(50/30) 36x2.5 0.8 2.3 29.8 864 1791
    20(16/32) 50x0.50 0.6 1.7 21.5 240 658
    18(24/32) 50x0.75 0.6 1.8 23.2 360 896
    17(32/32) 50x1 0.6 1.9 24.5 480 1052
    16(30/30) 50x1.5 0.7 2 28.9 720 1381
    14(50/30) 50x2.5 0.8 2.3 35 600 1175
    20(16/32) 61x0.50 0.6 1.8 23.1 293 780
    18(24/32) 61x0.75 0.6 2 25.8 439 1030
    17(32/32) 61x1 0.6 2.1 26 586 1265
    16(30/30) 61x1.5 0.7 2.4 30.8 878 1640
    14(50/30) 61x2.5 0.8 2.4 37.1 1464 2724
