    H05V2-K UL/H07V2-K UL

    Application and Description

    H05V2-K UL / H07V2-K UL are internationally approved harmonized, UL/CSA and AWM/MTW approved PVC European flexible single-conductor wires with increased temperature range for HAR/IEC and higher working voltage for UL-AWM. Due to these increases it is suitable for use in connections and internal wirings of frequency converters. Can be found in appliance wiring and machine tool wiring as well as in control systems. They may also be used in pipes and flexible conduits. Recommended for the internal wiring of apparatus, switchboards and distributor boards in electronic and electrical equipment designed for international use in North American & European countries and for MRO replacement of international made equipment wire.

    Standard and Approval

    HD 21.7 S2, H05V2-K / H07V2-K, VDE-0281 Part-3, UL-Standard and Approval 1063 MTW, UL-AWM Style 10269, CSA TEW, CSA-AWM 1 A/B, FT-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

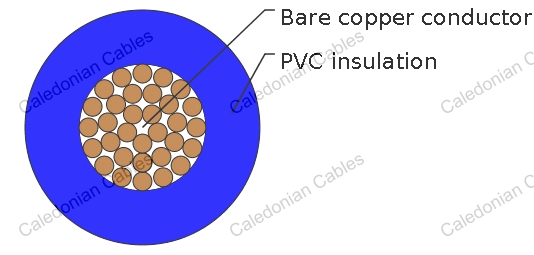

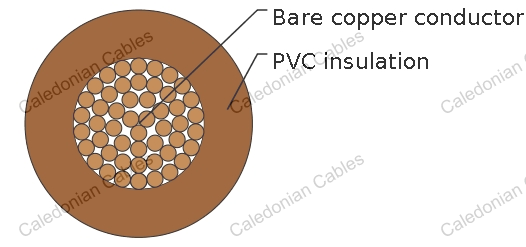

    Cable Construction

    - Fine tinned copper strands
    - Strands to VDE-0295 Class-5, IEC 60228 Class-5
    - Special PVC core insulation
    - Cores to VDE-0293 colors on chart
    - H05V2-K UL (22, 20 & 18 AWG)
    - H07V2-K UL (16 AWG and Larger)
    - X05V2-K UL & X07V2-K UL for non-HAR colors

    Technical Characteristics

    - Working voltage: 300/500v (H05V2-K UL)
    - Working voltage: 450/750v (H07V2-K UL)
    - Working voltage UL(MTW) & CSA: 600v
    - Working voltage UL (AWM): 1000v
    - Test voltage: 2500 volts (4000 volts UL)
    - Flexing/Static bending radius: 10-15 x Ø
    - Temperature HAR/IEC: -40º to +90º C
    - Temperature UL-AWM: -40º to +105º C
    - Temperature UL-MTW: -40º C to +90º C
    - Temperature CSA-TEW: -40º C to +105º C
    - Flame retardant: IEC 60332.1, FT-1, UL VW-1
    - Insulation resistance: 20 MΩ x km

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² NOMINAL THICKNESS OF INSULATION MM NOMINAL OVERALL DIAMETER MM NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
    20(16/32) 1 x 0.5 0.6 2.5 4.8 11
    18(24/32) 1 x 0.75 0.6 2.7 7.2 14
    17(32/32) 1 x 1 0.6 2.9 9.6 16
    16(30/30) 1 x 1.5 0.7 3.1 14.4 20
    14(50/30) 1 x 2.5 0.8 3.7 24 32
    12(56/28) 1 x 4 0.8 4.4 38 50
    10(84/28) 1 x 6 0.8 4.9 58 66
    8(80/26) 1 x 10 1.0 6.8 96 121
    6(128/26) 1 x 16 1.0 8.9 154 211
    4 (200/26) 1 x 25 1.2 10.1 240 303
    2 (280/26) 1 x 35 1.2 11.4 336 407
    1 (400/26) 1 x 50 1.4 14.1 480 600
    2/0 (356/24) 1 x 70 1.4 15.8 672 790
    3/0 (485/24) 1 x 95 1.6 18.1 912 1067
    4/0 (614/24) 1 x 120 1.6 19.5 1115 1277
