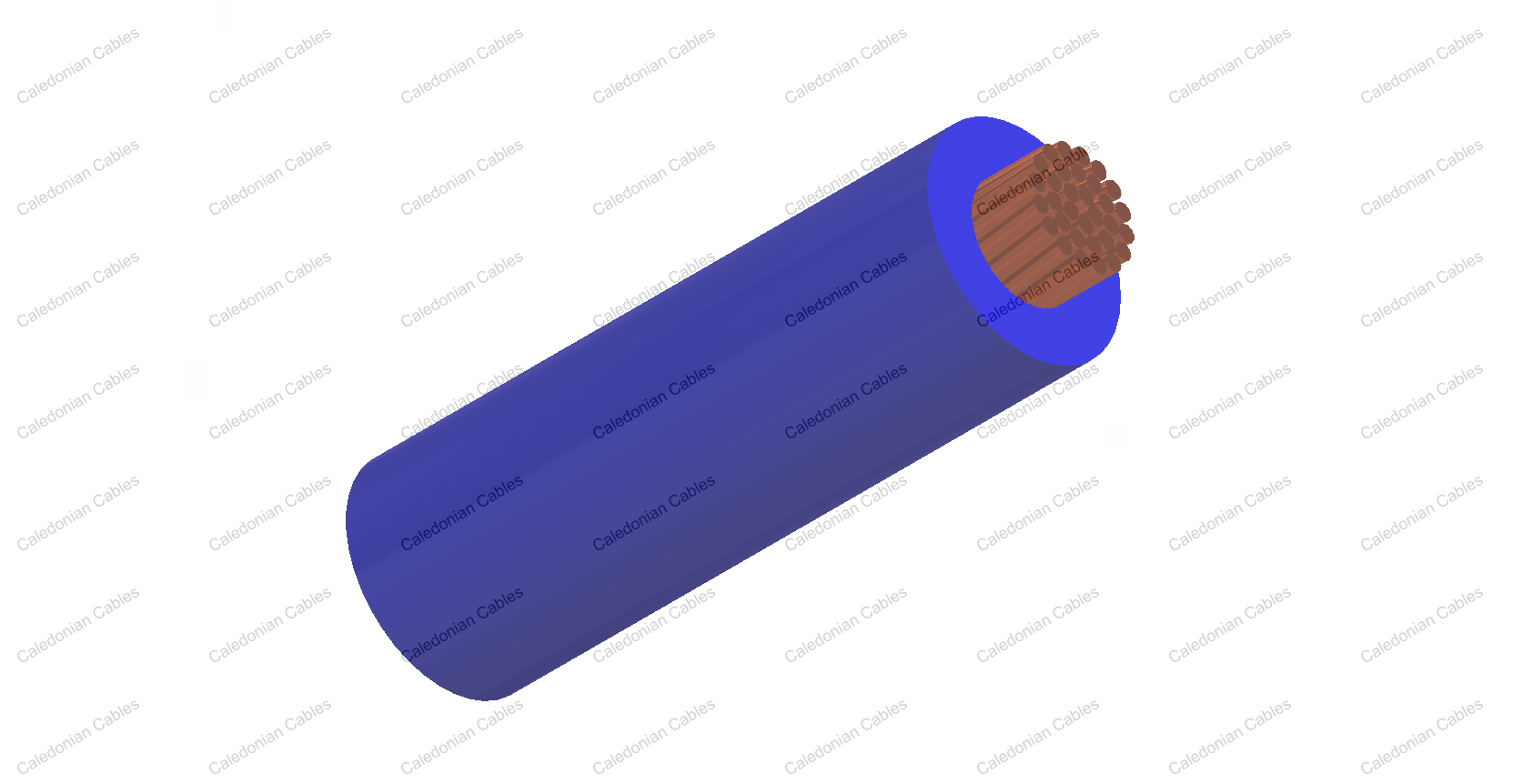

    H05V-K

    Application and Description

    These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.

    Standard and Approval

    • NF C 32-201-3
    • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
    • ROHS compliant

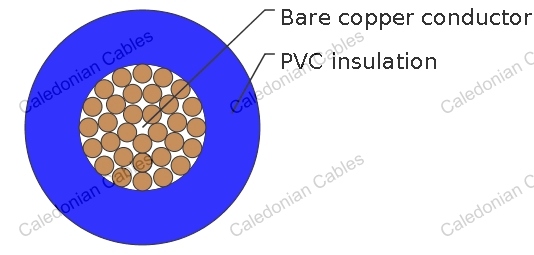

    Cable Construction

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    Special PVC TI1 core insulation
    Cores to VDE-0293 colors on chart

    Technical Characteristics

    WORKING VOLTAGE 300/500v
    TEST VOLTAGE 2000 volts
    FLEXING BENDING RADIUS 12.5 x Ø
    STATIC BENDING RADIUS 12.5 x Ø
    FLEXING TEMPERATURE -5ºC to +70ºC
    STATIC TEMPERATURE -30ºC to +80ºC
    FLAME RETARDANT NF C 32-070
    INSULATION RESISTANCE 10 MΩ x km

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
      # X MM² MM MM KG/KM KG/KM
    20(16/32) 1 x 0.5 0.6 2.1 4.9 10
    18(24/32) 1 x 0.75 0.6 2.4 7.2 13
    17(32/32) 1 x 1 0.6 2.6 9.6 15
