    H05G-K/H07G-K

    Application and Description

    These cables are recommended for the internal wiring of switchboards and distributor boards as well as 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.

    Standard and Approval

    • HD 22.7 S2
    • VDE-0282 Part-7
    • CEI 20-19/7
    • CEI 20-35(EN60332-1)
    • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
    • ROHS compliant

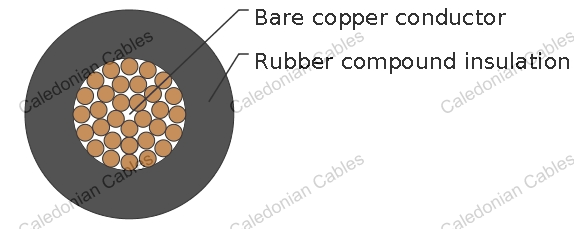

    Cable Construction

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
    Cores to VDE-0293 colors

    Technical Characteristics

    WORKING VOLTAGE 300/500v (H05G-K) ; 450/750v (H07G-K)
    TEST VOLTAGE 2000volts (H05G-K) ; 2500 volts (H07G-K)
    FLEXING BENDING RADIUS 7 x Ø
    STATIC BENDING RADIUS 7 x Ø
    FLEXING TEMPERATURE -25 ºC to +110 ºC
    STATIC TEMPERATURE -40 ºC to +110 ºC
    FLAME RETARDANT IEC 60332.1
    INSULATION RESISTANCE 10 MΩ x km

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
    # X MM² MM MM KG/KM KG/KM
    H05G-K
    20(16/32) 1 x 0.5 0.6 2.3 4.8 13
    18(24/32) 1 x 0.75 0.6 2.6 7.2 16
    17(32/32) 1 x 1 0.6 2.8 9.6 22
    H07G-K
    16(30/30) 1 x 1.5 0.8 3.4 14.4 24
    14(50/30) 1 x 2.5 0.9 4.1 24 42
    12(56/28) 1 x 4 1.0 5.1 38 61
    10(84/28) 1 x 6 1.0 5.5 58 78
    8(80/26) 1 x 10 1.2 6.8 96 130
    6(128/26) 1 x 16 1.2 8.4 154 212
    4(200/26) 1 x 25 1.4 9.9 240 323
    2(280/26) 1 x 35 1.4 11.4 336 422
    1(400/26) 1 x 50 1.6 13.2 480 527
    2/0(356/24) 1 x 70 1.6 15.4 672 726
    3/0(485/24) 1 x 95 1.8 17.2 912 937
    4/0(614/24) 1 x 120 1.8 19.7 1152 1192
