    H05BB-F /H07BB-F

    Application and Description

    These rubbers insulated and sheathed electric cables, with a parallel EPDM tube, joined with a textile braid, are used especially for electric steam generator irons (named usually “vaporellas”). The cables are suitable for the stripping force on automatic machines and for low temperature environments.

    Standard and Approval

    • HD 22.12
    • CEI 20-19/12
    • NF C 32-102-4

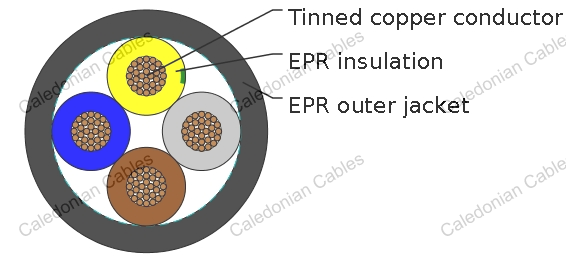

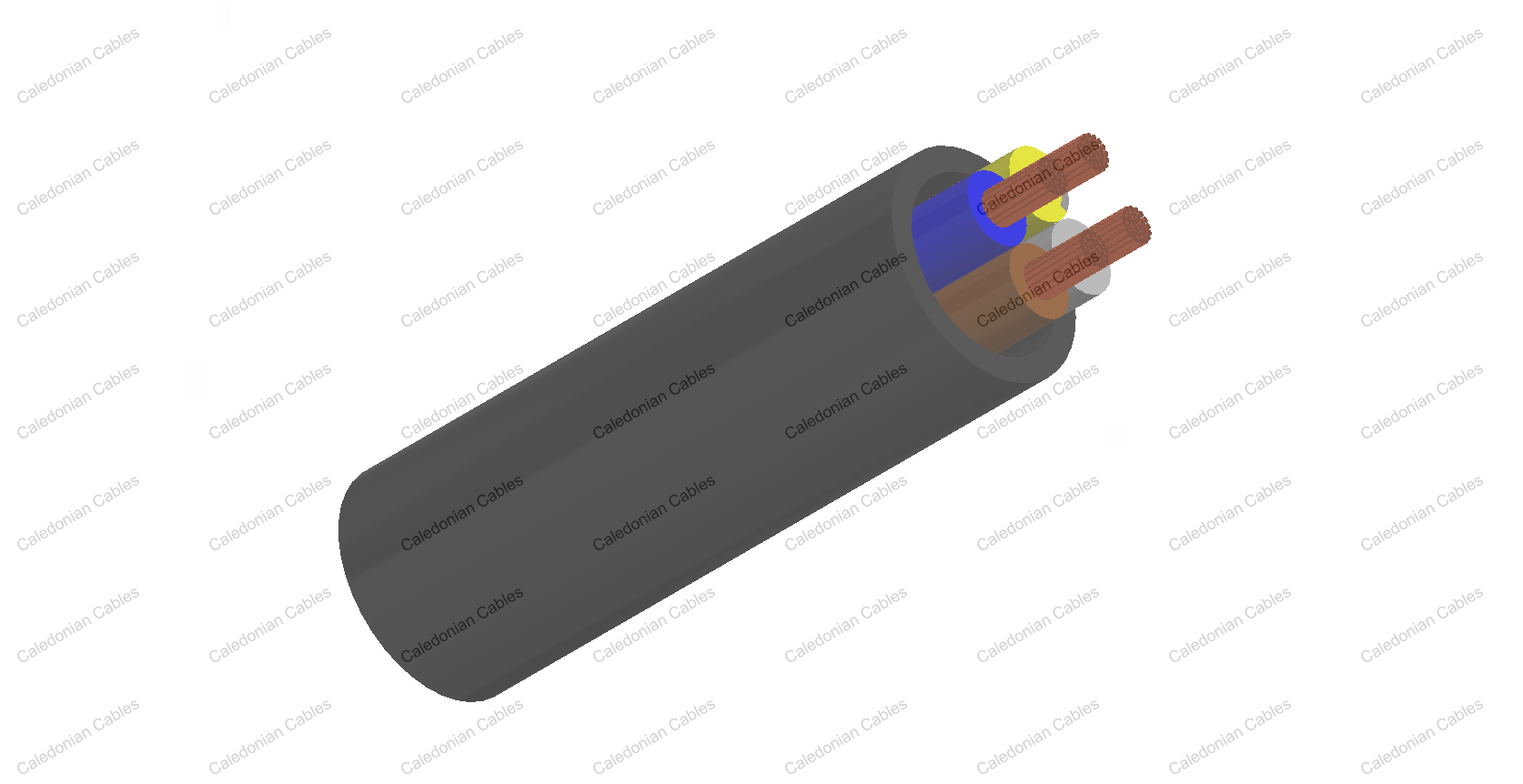

    Cable Construction

    CONDUCTOR Bare/Tinned copper strand conductor
    INSULATION EPR rubber type E17
    SHEATH EPR rubber type EM6
    SHEATH COLOR normally black
      acc. to DIN VDE 0295 class 5. IEC 60228 class 5
      Color coded to VDE 0293-308(3 conductors and above with yellow/green wire)

    Technical Characteristics

    WORKING VOLTAGE 300/500V (H05BB-F) ; 450/750V (H07BB-F)
    TEST VOLTAGE 2000V (H05BB-F) ; 2500V (H07BB-F)
    FLEXING BENDING RADIUS 4 x Ø
    STATIC BENDING RADIUS 3 x Ø
    OPERATING TEMPERATURE - 40ºC to + 60ºC (H05BB-F) ; - 25℃ to + 90ºC (H07BB-F)
    SHORT CIRCUIT TEMPERATURE 250ºC
    FLAME RETARDANT VDE 0482-332-1-2/IEC 60332-1

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    # X MM² MM MM KG/KM KG/KM
    H05BB-F
    18(24/32) 2x0.75 0.6 0.8 6.3 53
    17(32/32) 2x1 0.6 0.9 6.8 64
    16(30/30) 2x1.5 0.8 1.0 8.3 95
    14(50/30) 2x2.5 0.9 1.1 9.8 140
    18(24/32) 3x0.75 0.6 0.9 6.8 65
    17(32/32) 3x1 0.6 0.9 7.2 77
    16(30/30) 3x1.5 0.8 1 8.8 115
    14(50/30) 3x2.5 0.9 1.1 10.4 170
    12(56/28) 3 x 4 1 1.2 12.2 240
    10(84/28) 3 x 6 1 1.4 13.6 320
    18(24/32) 4x0.75 0.6 0.9 7.4 80
    17(32/32) 4x1 0.6 0.9 7.8 95
    16(30/30) 4x1.5 0.8 1.1 9.8 145
    14(50/30) 4x2.5 0.9 1.2 11.5 210
    12(56/28) 4 x 4 1 1.3 13.5 300
    10(84/28) 4 x 6 1 1.5 15.4 405
    18(24/32) 5x0.75 0.6 1 8.3 100
    17(32/32) 5x1 0.6 1 8.7 115
    16(30/30) 5x1.5 0.8 1.1 10.7 170
    14(50/30) 5x2.5 0.9 1.3 12.8 255
    H07BB-F
    17(32/32) 2×1 0.8 1.3 8.20 89
    16(30/30) 2×1.5 0.8 1.5 9.10 113
    14(50/30) 2×2.5 0.9 1.7 10.85 165
    17(32/32) 3×1 0.8 1.4 8.90 108
    16(30/30) 3×1.5 0.8 1.6 9.80 138
    14(50/30) 3×2.5 0.9 1.8 11.65 202
    17(32/32) 4×1 0.8 1.5 9.80 134
    16(30/30) 4×1.5 0.8 1.7 10.85 171
    14(50/30) 4×2.5 0.9 1.9 12.80 248
    17(32/32) 5×1 0.8 1.6 10.80 172
    16(30/30) 5×1.5 0.8 1.8 11.90 218
