    SY Steel Wire Braid Cable

    Application and Description

    SY Steel Wire Braid Cable is supplied to a wide number of industries including building and construction (often in airports), rail and transport infrastructure, transmission, distribution and power networks as well as automation and process control. SY Cable is used as interconnecting cable for measuring, controlling or regulation in signal and control equipment. This braided control cable is found frequently on assembly and production lines, conveyors, in computer units and machine tool manufacture. The SY Cable's flexible and versatile design makes it a great choice for linking fixed and mobile equipment – as well as projects where fixed installations are required. With the right protection (such as keeping it out of direct sunlight), SY Control Cable is useful for outdoor installations. The SY Flex is most suitable, however, for work in dry or moist indoor environments.

    Standard and Approval

    • BS6500, VDE0250

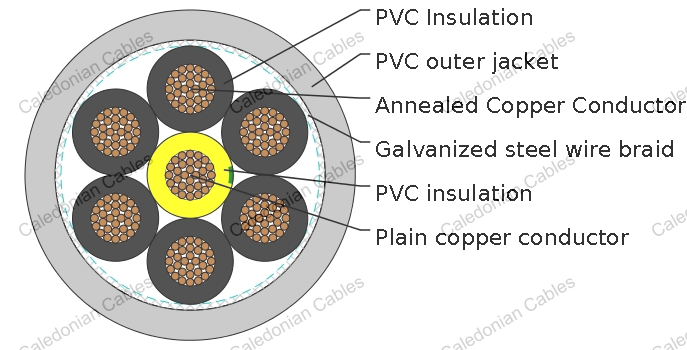

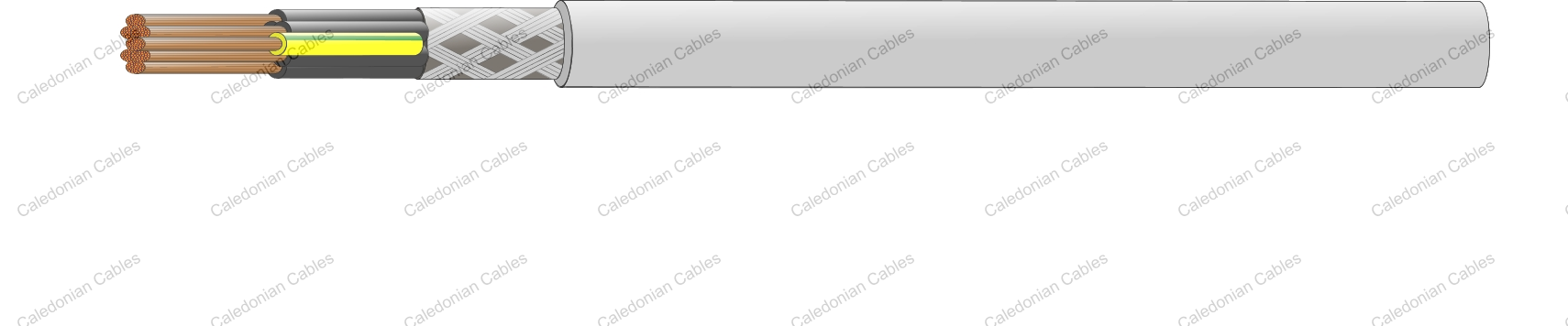

    Cable Construction

     Plain copper conductor
    Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5
    PVC core insulation type Y12
    Black with White numbers
    Green-yellow grounding (3 conductors and above)
    PVC bedding type YM2
    Galvanized Steel Wire Braid
    Transparent PVC outer jacket type YM2

    Technical Characteristics



    Working voltage 300/500 volts
    Test voltage 3000 volts
    Minimum bending radius 10 x Ø
    Flexing Temperature -15º C to +70º C
    Static temperature -35º C to +70º C
    Short circuit temperature +160º C
    Flame retardant IEC 60332.3
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Diameter Over Bedding Diameter over Braid Nominal Overall Diameter Nominal Cable Weight kg/km
      # x mm² mm   kg/km kg/km
    20(16/32) 2 x 0.5 5.5 6.5 8.3 91
    20(16/32) 3 x 0.5 5.7 6.7 8.6 99
    20(16/32) 4 x 0.5 6.2 7.2 9.1 113
    20(16/32) 5 x 0.5 6.7 7.7 9.7 129
    20(16/32) 7 x 0.5 7.3 8.3 10.3 150
    20(16/32) 12 x 0.5 9.7 10.7 12.4 214
    20(16/32) 18 x 0.5 11.2 12.4 14.3 298
    20(16/32) 25 x 0.5 13.7 14.9 16.8 400
    20(16/32) 30 x 0.5 14.2 15.4 17.7 454
    20(16/32) 35 x 0.5 15.9 17.1 19.9 585
    20(16/32) 41 x 0.5 17.5 18.7 21.5 671
    20(16/32) 50 x 0.5 18.4 19.6 21.9 694
    20(16/32) 60 x 0.5 20.0 21.2 24.2 895
    18(24/32) 2 x 0.75 6.1 7.1 9.0 85
    18(24/32) 3 x 0.75 6.4 7.4 9.3 116
    18(24/32) 4 x 0.75 6.9 7.9 9.8 133
    18(24/32) 5 x 0.75 7.6 8.6 10.5 155
    18(24/32) 7 x 0.75 8.3 9.3 11.2 182
    18(24/32) 12 x 0.75 10.8 11.8 13.7 266
    18(24/32) 18 x 0.75 13.1 14.3 16.2 388
    18(24/32) 25 x 0.75 15.6 16.8 19.1 521
    18(24/32) 30 x 0.75 16.1 17.3 19.6 572
    18(24/32) 35 x 0.75 17.9 19.1 21.4 684
    18(24/32) 50 x 0.75 20.9 22.1 24.8 909
    18(24/32) 60 x 0.75 22.3 23.8 26.4 1050
    17(32/32) 2 x 1.0 6.3 7.3 9.3 101
    17(32/32) 3 x 1.0 6.6 7.6 9.5 126
    17(32/32) 4 x 1.0 7.2 8.2 10.1 146
    17(32/32) 5 x 1.0 7.9 8.9 10.8 171
    17(32/32) 7 x 1.0 8.6 9.6 11.5 203
    17(32/32) 12 x 1.0 11.2 12.4 14.3 314
    17(32/32) 18 x 1.0 13.6 14.8 16.7 441
    17(32/32) 25 x 1.0 16.2 17.4 19.7 594
    17(32/32) 30 x 1.0 16.8 18.0 20.3 658
    17(32/32) 35 x 1.0 18.6 19.8 22.1 786
    17(32/32) 50 x 1.0 21.8 23.3 25.9 1070
    17(32/32) 60 x 1.0 23.6 25.1 27.7 1240
    16(30/30) 2 x 1.5 6.8 7.8 9.8 114
    16(30/30) 3 x 1.5 7.2 8.2 10.1 145
    16(30/30) 4 x 1.5 7.9 8.9 10.8 171
    16(30/30) 5 x 1.5 8.7 9.7 11.6 202
    16(30/30) 7 x 1.5 9.5 10.5 12.4 242
    16(30/30) 12 x 1.5 12.8 14.0 15.9 394
    16(30/30) 18 x 1.5 15.1 16.3 18.6 553
    16(30/30) 25 x 1.5 18.4 19.6 21.9 746
    16(30/30) 30 x 1.5 19.1 20.3 23.0 850
    16(30/30) 35 x 1.5 20.7 21.9 24.6 990
    16(30/30) 50 x 1.5 24.7 26.2 29.2 1380
    16(30/30) 60 x 1.5 26.3 27.8 30.8 1570
    14(30/50) 2 x 2.5 8.0 9.0 11.0 143
    14(30/50) 3 x 2.5 8.5 9.5 11.4 193
    14(30/50) 4 x 2.5 9.4 10.4 12.3 232
    14(30/50) 5 x 2.5 10.3 11.3 13.2 277
    14(30/50) 7 x 2.5 11.3 12.5 14.4 353
    14(30/50) 12 x 2.5 15.3 16.5 18.8 575
    14(30/50) 18 x 2.5 18.5 19.7 22.0 818
    14(30/50) 25 x 2.5 22.1 23.6 26.2 1130
    14(30/50) 30 x 2.5 23.4 24.9 27.5 1290
    14(30/50) 35 x 2.5 25.3 26.8 29.8 1540
    14(30/50) 50 x 2.5 29.8 31.3 34.7 2060
    14(30/50) 60 x 2.5 31.7 33.2 36.6 2350
    12(56/28) 2 x 4.0 10.8 11.8 13.8 240
    12(56/28) 3 x 4.0 11.5 12.8 14.8 312
    12(56/28) 4 x 4.0 12.7 13.9 15.8 384
    12(56/28) 5 x 4.0 14.0 15.2 17.5 478
    12(56/28) 7 x 4.0 15.3 16.5 18.8 587
    10(84/28) 2 x 6.0 12.2 13.4 15.4 316
    10(84/28) 3 x 6.0 13.0 14.2 16.2 407
    10(84/28) 4 x 6.0 14.4 15.6 17.9 508
    10(84/28) 5 x 6.0 15.9 17.1 19.4 617
    10(84/28) 7 x 6.0 17.9 19.1 21.4 789
    8(80/26) 2 x 10.0 15.3 16.5 18.9 467
    8(80/26) 3 x 10.0 16.5 17.7 20.1 621
    8(80/26) 4 x 10.0 18.4 19.6 21.9 779
    8(80/26) 5 x 10.0 20.4 21.6 24.3 978
    8(80/26) 7 x 10.0 22.4 23.9 26.5 1250
    6(128/26) 3 x 16.0 19.7 20.8 23.8 857
    6(128/26) 4 x 16.0 21.4 22.7 25.5 1040
    6(128/26) 5 x 16.0 24.1 25.4 28.6 1300
    4(200/26) 3 x 25.0 21.4 22.7 25.5 1110
    4(200/26) 4 x 25.0 23.8 25.1 27.2 1350
    4(200/26) 5 x 25.0 26.4 27.7 31.3 1740
    4(200/26) 5 x 35.0 - - 36 3185
