    N2XFGY/ NA2XFGY

    Application and Description

    N2XFGY/ NA2XFGY cables are for lying in earth, indoors, in ducts, in the open air, in the water, when additional mechanical protection is required when cable is exposed to mechanical tensile strain during laying and use. For use in mines ac-cording to Technical standards for electrical plants, equipments and installations in mines, as well as hori-zontal and vertical installation in places where there is a height difference in mines, including methane holes.

    Standard and Approval

    IEC 60502-1

    VDE 0276-603

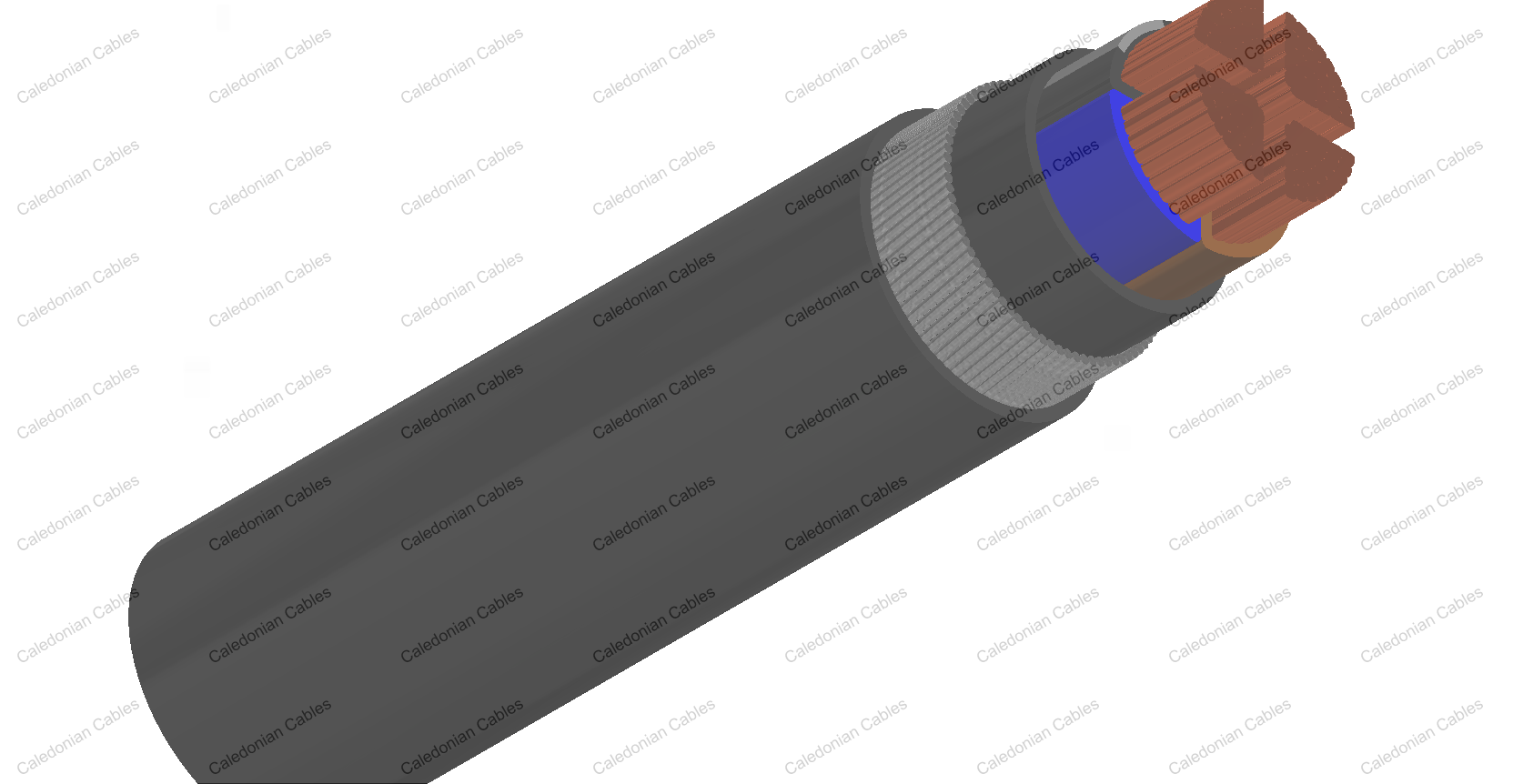

    Cable Construction

    Stranded plain copper/aluminum conductor
    to DIN VDE 0295 cl. 2, IEC 60228 cl. 2
    Cross-linked polyethylene 2XI1 acc. to VDE 0276-603
    Color coded to DIN VDE 0293(HD 308)
    Thermoplastic compound filler
    Flat steel wire with steel tape armour
    PVC outer jacket DMV5 to HD 603.1

    Technical Characteristics

    Working voltage 600/1000 volts
    Test voltage 3500 volts
    Minimum bending radius 12 x Ø
    Flexing Temperature -5º C to +70º C
    Fixed installation temperature - 30º C to +70º C
    Short circuit temperature +250º C
    Flame retardant IEC 60332.1
    Insulation resistance >20 MΩ x km

    Cable Parameter(CU)

    AWG No. of Cores x Nominal Cross Sectional Area Conductor Type Nominal Overall Diameter Copper Weight Copper Cable Weight
      # x mm²   mm kg/km kg/km
    4 3x25 rm 25,5 720 1617
    2 3x35 rm 28,0 1008 2010
    1 3x50 sm 28,0 1440 2210
    2/0 3x70 sm 31,5 2016 2925
    3/0 3x95 sm 35,0 2736 3835
    4/0 3x120 sm 38,0 3456 4662
    300mcm 3x150 sm 42,0 4320 5586
    350mcm 3x185 sm 46,5 5328 6900
    500mcm 3x240 sm 51,5 6912 8732
    4 3x25+16 rm 26,5 874 1807
    2 3x35+16 rm 29,0 1162 2193
    1 3x50+25 sm 31,0 1680 2593
    2/0 3x70+35 sm 35,5 2352 3476
    3/0 3x95+50 sm 38,5 3216 4461
    4/0 3x120+70 sm 42,0 4128 5494
    300mcm 3x150+70 sm 47,0 4992 6586
    350mcm 3x185+95 sm 51,0 6240 8095
    500mcm 3x240+120 sm 58,0 8064 10400
    10 4x6 rm 18,0 230 753
    8 4x10 rm 20,0 384 1006
    6 4x16 rm 23,5 614 1374
    4 4x25 rm 28,0 960 1946
    2 4x35 rm 30,5 1344 2447
    1 4x50 sm 31,0 1920 2780
    2/0 4x70 sm 35,0 2688 3729
    3/0 4x95 sm 38,5 3648 4870
    4/0 4x120 sm 41,5 4608 5949
    300mcm 4x150 sm 47,0 5760 7264
    350mcm 4x185 sm 51,0 7104 8878
    500mcm 4x240 sm 58,0 9216 11436
    10 5x6 rm 19,5 288 837
    8 5x10 rm 21,5 480 1170
    6 5x16 rm 25,5 768 1628
    4 5x25 rm 30,0 1200 2325

    Cable Parameter(AL)

    AWG No. of Cores x Nominal Cross Sectional Area Conductor Type Nominal Overall Diameter AL Weight AL Cable Weight
      # x mm²   mm kg/km kg/km
    4 3x25 rm 25,5 218 1149
    2 3x35 rm 28,0 305 1354
    1 3x50 sm 28,0 435 1309
    2/0 3x70 sm 31,5 609 1628
    3/0 3x95 sm 35,0 827 2023
    4/0 3x120 sm 38,0 1044 2367
    300mcm 3x150 sm 42,0 1305 2787
    350mcm 3x185 sm 46,5 1610 3372
    500mcm 3x240 sm 51,5 2088 4057
    4 3x25+16 rm 26,5 263 1230
    2 3x35+16 rm 29,0 351 1426
    1 3x50+25 sm 31,0 507 1534
    2/0 3x70+35 sm 35,5 711 1958
    3/0 3x95+50 sm 38,5 972 2350
    4/0 3x120+70 sm 42,0 1247 2766
    300mcm 3x150+70 sm 47,0 1508 3339
    350mcm 3x185+95 sm 51,0 1886 3962
    500mcm 3x240+120 sm 58,0 2436 4964
    10 4x6 rm 18,0 70 603
    8 4x10 rm 20,0 116 755
    6 4x16 rm 23,5 186 910
    4 4x25 rm 28,0 290 1319
    2 4x35 rm 30,5 406 1572
    1 4x50 sm 31,0 580 1574
    2/0 4x70 sm 35,0 812 1992
    3/0 4x95 sm 38,5 1102 2440
    4/0 4x120 sm 41,5 1392 2873
    300mcm 4x150 sm 47,0 1740 3513
    350mcm 4x185 sm 51,0 2148 4147
    500mcm 4x240 sm 58,0 2784 5170
    10 5x6 rm 19,5 88 686
    8 5x10 rm 21,5 145 857
    6 5x16 rm 25,5 233 1057
    4 5x25 rm 30,0 363 1570
