These thermal insulated wires are ideal for use in power current installation, switch cabinets, motors and transformers which are subject to direct contact with high temperature (e.g. varnishing machines and drying towers etc.). These are also suitable for inside wiring of electrical equipments such as lighting and heating apparatus.

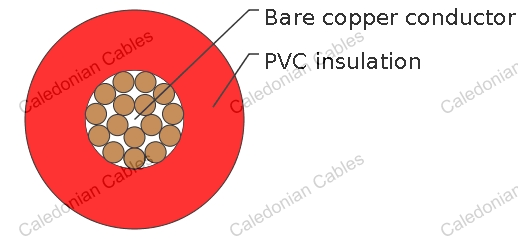

| Bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Cl-5, BS 6360 cl. 5 and HD 383 |
| Special heat-resistant PVC core insulation |
| Cores identification to VDE-0293 |
| Working voltage | 300/500 V |
| Test voltage | 2000 V |
| Flexing bending radius | 12.5 x Ø |
| Static bending radius | 12.5 x Ø |
| Flexing Temperature | -5º C to +105º C |
| Static temperature | -10º C to +105º C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Copper Weight | Nominal Cable Weight kg/km |
|---|---|---|---|---|
| # x mm² | mm | kg/km | kg/km | |
| 26(18/38) | 1 x 0.14 | 1.0 | 1.4 | 3.2 |
| 24(14/34) | 1 x 0.25 | 1.3 | 2.4 | 4.3 |
| 22(19/34) | 1 x 0.34 | 1.4 | 3.6 | 5.3 |
| 20(16/32) | 1 x 0.50 | 1.8 | 4.8 | 7.2 |
