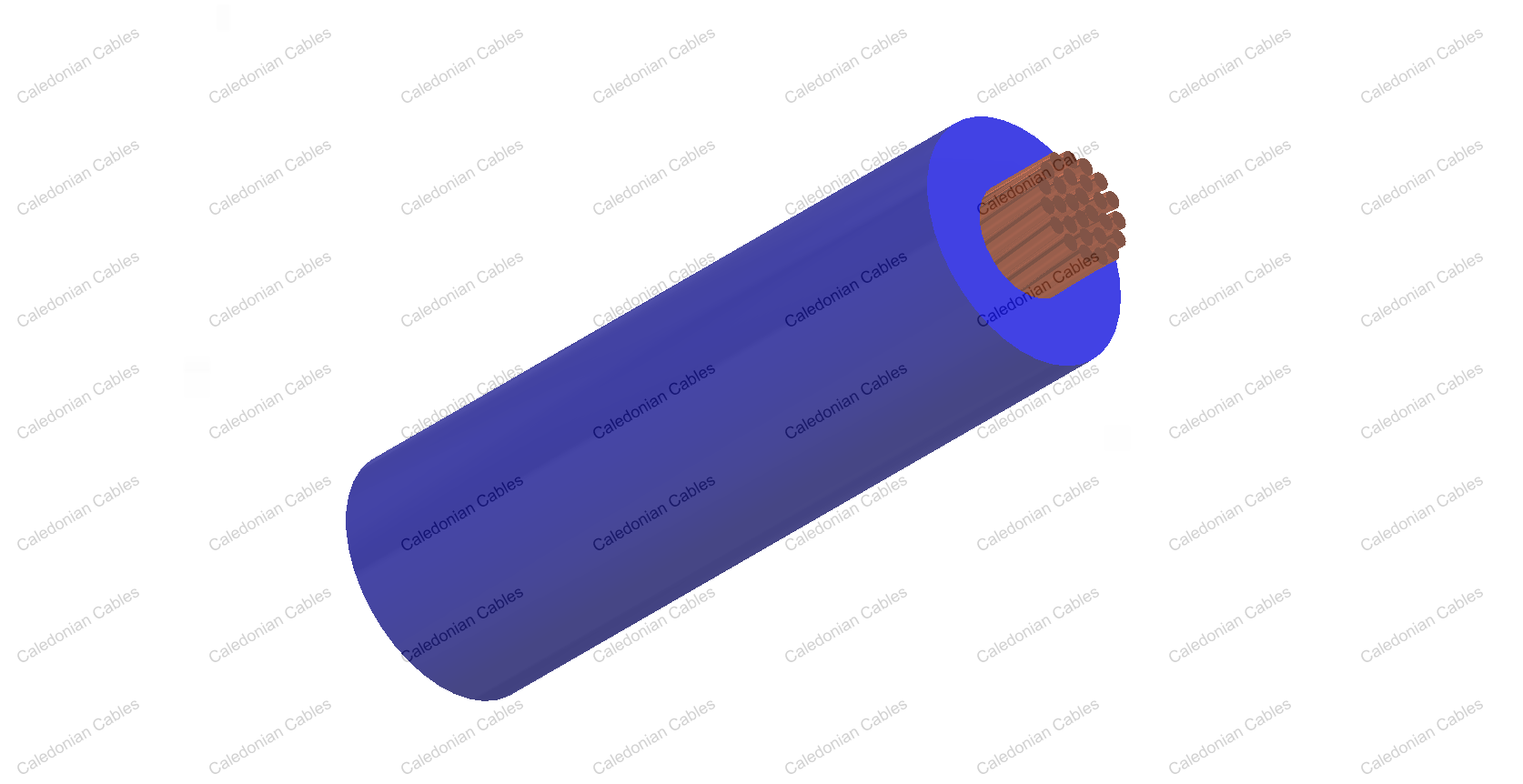

LiFY is highly flexible lead wire, it can be used as super flexible insulated strand wires for switch cabinets, as measuring cable for testing, laboratories, research etc.
VDE 0250,VDE 0281,VDE 0295, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

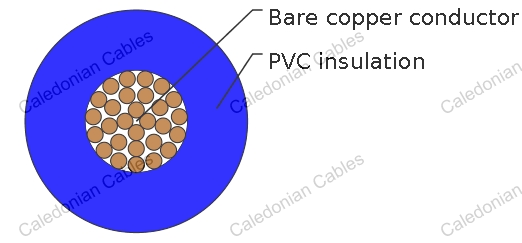

| Super fine bare copper strands |
| Strands to VDE-0295 Class-6, IEC 60228 Cl-6 |
| Special PVC core insulation |
| Cores identification to VDE-0293 |
| Working voltage | 1000 V |
| Test voltage | 3000 V |
| Flexing bending radius | 10 x Ø |
| Static bending radius | 5 x Ø |
| Flexing Temperature | -15º C to +80º C |
| Static temperature | -30º C to +80º C |
| Flame retardant | VDE 0472 part 804, test method B, and IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Copper Weight | Nominal Cable Weight kg/km |
|---|---|---|---|---|
| # x mm² | mm | kg/km | kg/km | |
| 26(72/42) | 1 x 0.14 | 1.1 | 1.4 | 2.6 |
| 24(65/40) | 1 x 0.25 | 1.4 | 2.5 | 4.2 |
| 20(132/40) | 1 x 0.50 | 2.2 | 5.5 | 8 |
| 18(195/40) | 1 x 0.75 | 2.4 | 8 | 12 |
| 17(260/40) | 1 x 1.00 | 2.6 | 10.8 | 18 |
| 16(192/38) | 1 x 1.50 | 3.3 | 15 | 22 |
| 14(320/38) | 1 x 2.50 | 3.9 | 25 | 37 |
| 12(512/38) | 1 x 4.00 | 5.1 | 40 | 50 |
| 10(768/38) | 1 x 6.00 | 6.5 | 60 | 71 |
| 8(1280/38) | 1 x 10.0 | 7.5 | 100 | 130 |
| 6(2048/38) | 1 x 16.0 | 9.1 | 160 | 187 |
| 4(3234/38) | 1 x 25.0 | 10.8 | 240 | 294 |
| 2(4508/38) | 1 x 35.0 | 11.9 | 336 | 380 |
| 1(6468/38) | 1 x 50.0 | 14.9 | 480 | 521 |
| 2/0(8967/38) | 1 x 70.0 | 17.0 | 672 | 740 |
