    H07ZZ-F

    • H07ZZ-F, German Standard Industrial Cables

    Application and Description

    These LSZH cables are flexible, mainly used for mobile service, suitable for installations where is required low smoke and halogen free fumes under fire conditions.

    Suitable for installations where the cable must withstand medium mechanical stress, for machines in industrial and agricultural workshops, for motors and some transportable machines , for wind mills and for agricultural exploitations.

    Standard and Approval

    • CEI 20-19 p.13, IEC 60245-4 , IEC 60754, EN 61034,
    • CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

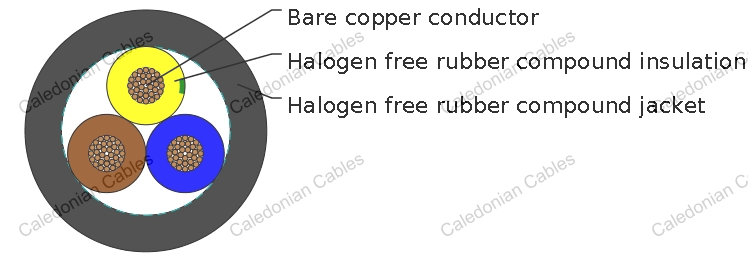

    Cable Construction

    Technical Characteristics

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    Halogen free rubber compound EI 8 acc. to EN 50363-5
    Color code to VDE-0293-308
    Black halogen free rubber compound EM8 jacket



    Flexing voltage 450/750 volts
    Fixed voltage 600/1000 volts
    Test voltage 2500 volts
    Flexing bending radius 6 x O
    Fixed bending radius 4.0 x O
    Flexing Temperature -5oC to +70oC
    Fixed Temperature -40oC to +70oC
    Short circuit temperature +250oC
    Flame retardant IEC 60332.3,C1, NF C 32-070
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm mm (min-max) kg/km kg/km
    17(32/32) 2 x 1 0.8 1.3 7.7-10 19 96
    17(32/32) 3 x 1 0.8 1.4 8.3-10.7 29 116
    17(32/32) 4 x 1 0.8 1.5 9.2-11.9 38 143
    17(32/32) 5 x 1 0.8 1.6 10.2-13.1 46 171
    16(30/30) 1 x 1.5 0.8 1.4 5.7-7.1 14.4 58.5
    16(30/30) 2 x 1.5 0.8 1.5 8.5-11.0 29 120
    16(30/30) 3 x 1.5 0.8 1.6 9.2-11.9 43 146
    16(30/30) 4 x 1.5 0.8 1.7 10.2-13.1 58 177
    16(30/30) 5 x 1.5 0.8 1.8 11.2-14.4 72 216
    16(30/30) 7 x 1.5 0.8 2.5 14.5-17.5 101 305
    16(30/30) 12 x 1.5 0.8 2.9 17.6-22.4 173 500
    16(30/30) 14 x 1.5 0.8 3.1 18.8-21.3 196 573
    16(30/30) 18 x 1.5 0.8 3.2 20.7-26.3 274 755
    16(30/30) 24 x 1.5 0.8 3.5 24.3-30.7 346 941
    16(30/30) 36 x 1.5 0.8 3.8 27.8-35.2 507 1305
    14(50/30) 1 x 2.5 0.9 1.4 6.3-7.9 24 72
    14(50/30) 2 x 2.5 0.9 1.7 10.2-13.1 48 173
    14(50/30) 3 x 2.5 0.9 1.8 10.9-14.0 72 213
    14(50/30) 4 x 2.5 0.9 1.9 12.1-15.5 96 237
    14(50/30) 5 x 2.5 0.9 2.0 13.3-17.0 120 318
    14(50/30) 7 x 2.5 0.9 2.7 16.5-20.0 168 450
    14(50/30) 12 x 2.5 0.9 3.1 20.6-26.2 288 729
    14(50/30) 14 x 2.5 0.9 3.2 22.2-25.0 337 866
    14(50/30) 18 x 2.5 0.9 3.5 24.4-30.9 456 1086
    14(50/30) 24 x 2.5 0.9 3.9 28.8-36.4 576 1332
    14(50/30) 36 x 2.5 0.9 4.3 33.2-41.8 1335 1961
    12(56/28) 1 x 4 1 1.5 7.2-9.0 38 101
    12(56/28) 3 x 4 1 1.9 12.7-16.2 115 293
    12(56/28) 4 x 4 1 2.0 14.0-17.9 154 368
    12(56/28) 5 x 4 1 2.2 15.6-19.9 192 450
    12(56/28) 12 x 4 1 3.5 24.2-30.9 464 1049
