    H05VVC4V5-K

    • H05VVC4V5-K German Standard Industrial Cables

    Application and Description

    These cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened termination and connection cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies. Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working processes.

    Standard and Approval

    • HD 21.13 S1
    • VDE-0281 Part-13
    • CEI 20-20/13
    • CEI 20-35 (EN60332-1)
    • CEI 20-52
    • UL 2464

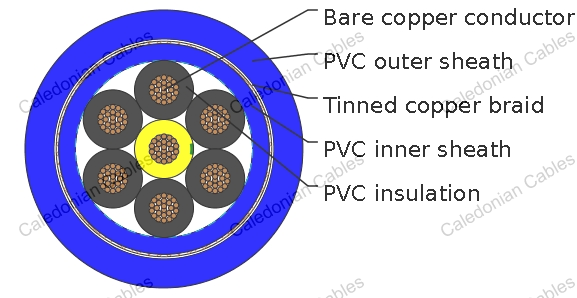

    Cable Construction

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    PVC insulation T12 to DIN VDE 0281 part 1
    Green-yellow grounding (3 conductors and above)
    Cores to VDE-0293 colors
    PVC inner sheath TM2 to DIN VDE 0281 part 1
    Tinned copper braided shielding, covering approx. 85%
    PVC outer jacket TM5 to DIN VDE 0281 part 1

    Technical Characteristics

    WORKING VOLTAGE 300/500v
    TEST VOLTAGE 2000volts
    FLEXING BENDING RADIUS 10 x Ø
    STATIC BENDING RADIUS 5 x Ø
    FLEXING TEMPERATURE -5 ºC to +70 ºC
    STATIC TEMPERATURE -40 ºC to +70 ºC
    FLAME RETARDANT IEC 60332.1
    INSULATION RESISTANCE 20 MΩ x km

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL THICKNESS OF INNER SHEATH NOMINAL THICKNESS OF OUTER SHEATH NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
    # X MM² MM MM MM MM KG/KM KG/KM
    20(16/32) 2 x 0,50 0.6 0.7 0.9 7,7 35 105
    18(24/32) 2 x 0,75 0.6 0.7 0.9 8 39 115
    17(32/32) 2 x 1,0 0.6 0.7 0.9 8,2 44 125
    16(30/30) 2 x 1,50 0.7 0.7 1.0 9,3 58 160
    14(50/30) 2 x 2,50 0.8 0.7 1.1 10,7 82 215
    20(16/32) 3 x 0,50 0.6 0.7 0.9 8 40 115
    18(24/32) 3 x 0,75 0.6 0.7 0.9 8,3 47 125
    17(32/32) 3 x 1,0 0.6 0.7 1.0 8,8 54 145
    16(30/30) 3 x 1,50 0.7 0.7 1.0 9,7 73 185
    14(50/30) 3 x 2,50 0.8 0.7 1.1 11,3 106 250
    20(16/32) 4 x 0,50 0.6 0.7 0.9 8,5 44 125
    18(24/32) 4 x 0,75 0.6 0.7 1.0 9,1 58 155
    17(32/32) 4 x 1,0 0.6 0.7 1.0 9,4 68 170
    16(30/30) 4 x 1,50 0.7 0.7 1.1 10,7 93 220
    14(50/30) 4 x 2,50 0.8 0.8 1.2 12,6 135 305
    20(16/32) 5 x 0,50 0.6 0.7 1.0 9,3 55 155
    18(24/32) 5 x 0,75 0.6 0.7 1.1 9,7 66 175
    17(32/32) 5 x 1,0 0.6 0.7 1.1 10,3 78 200
    16(30/30) 5 x 1,50 0.7 0.8 1.2 11,8 106 265
    14(50/30) 5 x 2,50 0.8 0.8 1.3 13,9 181 385
    20(16/32) 7 x 0,50 0.6 0.7 1.1 10,8 69 205
    18(24/32) 7 x 0,75 0.6 0.7 1.2 11,5 84 250
    17(32/32) 7 x 1,0 0.6 0.8 1.2 12,2 107 275
    16(30/30) 7 x 1,50 0.7 0.8 1.3 14,1 162 395
    14(50/30) 7 x 2,50 0.8 0.8 1.5 16,5 238 525
    20(16/32) 12 x 0,50 0.6 0.8 1.3 13,3 98 285
    18(24/32) 12 x 0,75 0.6 0.8 1.3 13,9 125 330
    17(32/32) 12 x 1,0 0.6 0.8 1.4 14,7 176 400
    16(30/30) 12 x 1,50 0.7 0.8 1.5 16,7 243 525
    14(50/30) 12 x 2,50 0.8 0.8 1.7 19,9 367 745
    20(16/32) 18 x 0,50 0.6 0.9 1.3 18,6 147 385
    18(24/32) 18 x 0,75 0.6 0.8 1.5 19,9 200 475
    17(32/32) 18 x 1,0 0.6 0.8 1.5 20,8 243 525
    16(30/30) 18 x 1,50 0.7 0.8 1.7 24,1 338 720
    14(50/30) 18 x 2,50 0.8 0.9 2.0 28,5 555 1075
    20(16/32) 25 x 0,50 0.6 0.8 1.6 22,1 199 505
    18(24/32) 25 x 0,75 0.6 0.9 1.7 23,7 273 625
    17(32/32) 25 x 1,0 0.6 0.9 1.7 24,7 351 723
    16(30/30) 25 x 1,50 0.7 0.9 2.0 28,6 494 990
    14(50/30) 25 x 2,50 0.8 1.0 2.3 34,5 792 1440
    20(16/32) 36 x 0.50 0.6 0.9 1.7 24.7 317 620
    18(24/32) 36 x 0.75 0.6 0.9 1.8 26.2 358 889
    17(32/32) 36 x 1,0 0.6 0.9 1.9 27,6 438 910
    16(30/50) 36 x 1,50 0.7 1.0 2.2 32,5 662 1305
    14(30/32) 36 x 2,50 0.8 1.0 2.4 38,5 1028 1850
    20(16/32) 48 x 0,50 0.6 0.9 1.9 28,3 353 845
    18(24/32) 48 x 0,75 0.6 1.0 2.1 30,4 490 1060
    17(32/32) 48 x 1,0 0.6 1.0 2.1 31,9 604 1210
    16(30/30) 48 x 1,50 0.7 1.1 2.4 37 855 1665
    14(50/30) 48 x 2,50 0.8 1.2 2.4 43,7 1389 2390
    20(16/32) 60 x 0,50 0.6 1.0 2.1 31,1 432 1045
    18(24/32) 60 x 0,75 0.6 1.0 2.3 329 576 1265
    17(32/32) 60 x 1,0 0.6 1.0 2.3 34,7 720 1455
    16(30/30) 60 x 1,50 0.7 1.1 2.4 39,9 1050 1990
    14(50/30) 60 x 2,50 0.8 1.2 2.4 47,2 1706 2870
