    H05VV-F/SJT

    Application and Description

    These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences or heat. The cables are suitable for fixed installation in furniture, partition walls, decoration covering and in hollow spaces of prefabricated building parts. They are not suitable for use in open air, in industries (also permitted to tailor workshops and of that kind) and in agriculture plants and for connecting commercial electrical tools.

    Standard and Approval

    HD21.5 S3, VDE-0281 Part-5 & Part-2, UL Style 62 (SJT), VW-1, CSA 22.2 No 49, FT-1, CE low voltage directive 73/23/EEC & 93/68/EEC., IEC 60227-5, ROHS compliant

    Cable Construction

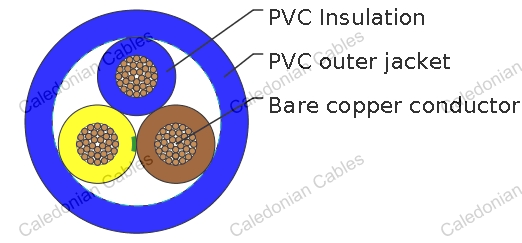

    • - Bare copper fine wire conductor
    • - Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
    • - PVC core insulation TI2 to VDE-0281 Part 1
    • - Color coded to VDE-0293-308
    • - Green-yellow grounding (3 conductors and above)
    • - PVC outer jacket TM2

    Technical Characteristics

    • - Working voltage VDE: 300/500 volts
    • - Working Voltage UL/CSA: 300 volts
    • - Test voltage: 2000 volts
    • - Flexing bending radius: 7.5 x Ø
    • - Static bending radius: 4 x Ø
    • - Flexing temperature: -5º C to +70º C
    • - Static temperature: -40º C to +70º C
    • - Flame retardant: IEC 60332.1, VW-1
    • - Insulation resistance: 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Thickness of Insulation mm Nominal Thickness of Sheath mm Nominal Overall Diameter mm Nominal Copper Weight kg/Km NominaWeight kg/Km
    17(32/32) 2 x 1 0.6 0.8 7.2 19.2 56
    17(32/32) 3 x 1 0.6 0.8 7.6 28.8 73
    17(32/32) 4 x 1 0.6 0.9 8.6 38.4 86
    17(32/32) 5 x 1 0.6 0.9 9.4 48 105
    16(30/30) 2 x 1.5 0.7 0.8 7.6 28 82
    16(30/30) 3 x 1.5 0.7 0.9 8.3 44 96
    16(30/30) 4 x 1.5 0.7 1 9.3 58 117
    16(30/30) 5 x 1.5 0.7 1.1 10.4 72 144
    14(30/50) 2 x 2.5 0.8 1 9.2 48 118
    14(30/50) 3 x 2.5 0.8 1.1 10 72 152
    14(30/50) 4 x 2.5 0.8 1.1 10.9 96 192
    14(30/50) 5 x 2.5 0.8 1.2 12.2 120 243
    12(56/28) 2 x 4 0.8 1.1 10.6 76 195
    12(56/28) 3 x 4 0.8 1.2 11.5 115 235
    12(56/28) 4 x 4 0.8 1.2 12.4 154 300
    12(56/28) 5 x 4 0.8 1.4 14.1 192 361
