    H05RR-F

    • H05RR-F, German Standard Industrial Cables

    Application and Description

    These cables are flexible rubber insulated; rubber jacketed harmonized cord, recommended for use in equipment, which is subject to light and medium stresses in both dry and damp environments.

    For use with electronics and electrical equipment such as appliances, small hand tools and office equipment They can be found in flat irons, soldering irons, kitchen aids, toasters, stoves and in connections with light commercial electric tools. Also suitable for fixed installation in furniture, decorative coverings, wall partitions and prefabricated building parts.

    Max operating voltage in single or three phase system is Uo/U 300/500 volts. In a direct current system max operating voltage is Uo/U 413/825 volts. Outdoor use is permitted only for a short time. They are ozone resistant, oil & fat resistant.

    Standard and Approval

    • CEI 20-19/4, CEI 20-35 (EN60332-1),
    • CE low voltage directive 73/23/EEC & 93/68/EEC., IEC 60245-4, ROHS compliant

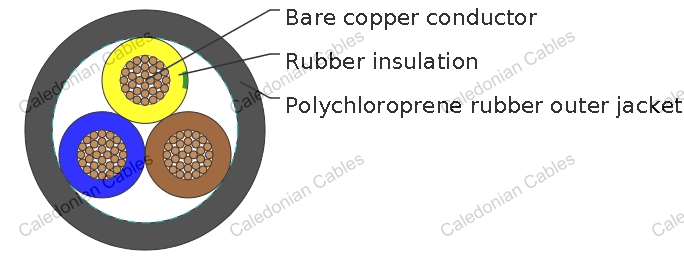

    Cable Construction

    Technical Characteristics

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    Rubber core insulation EI4 to VDE-0282 Part-1
    Color code VDE-0293-308 and HD 186
    Green-yellow grounding, 3 conductors and above
    Polychloroprene rubber (neoprene) jacket EM3



    Working voltage 300/500 volts
    Test voltage 2000 volts
    Flexing bending radius 8 x O
    Fixed bending radius 6 x O
    Temperature range -30oC to +60oC
    Short circuit temperature +200 oC
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm mm(min-max) kg/km kg/km
    18(24/32) 2 x 0.75 0.6 0.8 5.7-7.4 14.4 61
    18(24/32) 3 x 0.75 0.6 0.9 6.2-8.1 21.6 75
    18(24/32) 4 x 0.75 0.6 0.9 6.8-8.8 28.8 94
    18(24/32) 5 x 0.75 0.6 1.0 7.6-9.9 36.0 110
    17(32/32) 2 x 1 0.6 0.9 6.1-8.0 19.0 73
    17(32/32) 3 x 1 0.6 0.9 6.5-8.5 29.0 86
    17(32/32) 4 x 1 0.6 0.9 7.1-9.3 38.4 105
    17(32/32) 5 x 1 0.6 1.0 8.0-10.3 48.0 130
    16(30/30) 2 x 1.5 0.8 1.0 7.6-9.8 29.0 115
    16(30/30) 3 x 1.5 0.8 1.0 8.0-10.4 43.0 135
    16(30/30) 4 x 1.5 0.8 1.1 9.0-11.6 58.0 165
    16(30/30) 5 x 1.5 0.8 1.1 9.8-12.7 72.0 190
    14(50/30) 2 x 2.5 0.9 1.1 9.0-11.6 48.0 160
    14(50/30) 3 x 2.5 0.9 1.1 9.6-12.4 72.0 191
    14(50/30) 4 x 2.5 0.9 1.2 10.7-13.8 96.0 235
    14(50/30) 5 x 2.5 0.9 1.3 11.9-15.3 120.0 285
