    H05GG-F

    • H05GG-F, German Standard Industrial Cables

    Application and Description

    For general use in domestic premises, kitchens and offices and for supplying appliances where the cables are subjected to low mechanical stresses. Also for low temperature uses.(eg., cooking appliances, soldering irons, toasters)

    Standard and Approval

    • HD 22.11 S1
    • VDE 0282 part 11
    • CEI 20-19/11
    • NFC 32-102-11

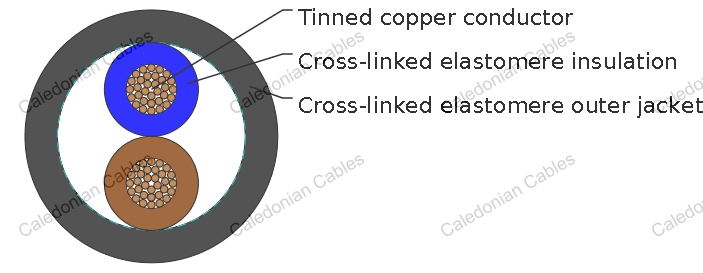

    Cable Construction

    Fine tinned copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Cl-5
    Cross-linked elastomere E13 insulation
    Color code VDE-0293-308
    Cross-linked elastomere EM 9 outer jacket - black

    Technical Characteristics

    WORKING VOLTAGE 300/500V
    TEST VOLTAGE 2000V
    FLEXING BENDING RADIUS 4 x Ø
    STATIC BENDING RADIUS 3 x Ø
    TEMPERATURE RANGE -15 ºC to +110 ºC
    SHORT CIRCUIT TEMPERATURE 200 ºC
    FLAME RETARDANT IEC 60332 -1
    HALOGEN-FREE IEC 60754-1
    LOW SMOKE IEC 60754-2
    SMOKE DENSITY IEC 61034

    Cable Parameter

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    # X MM² MM MM MM KG/KM
    18(24/32) 2x0.75 0.6 0.8 6.3 53
    17(32/32) 2x1 0.6 0.9 6.8 64
    16(30/30) 2x1.5 0.8 1 8.3 95
    14(50/30) 2x2.5 0.9 1.1 9.8 140
    18(24/32) 3x0.75 0.6 0.9 6.8 65
    17(32/32) 3x1 0.6 0.9 7.2 77
    16(30/30) 3x1.5 0.8 1 8.8 115
    14(50/30) 3x2.5 0.9 1.1 10.4 170
    12(56/28) 3 x 4 1 1.2 12.2 240
    10(84/28) 3 x 6 1 1.4 13.6 320
    18(24/32) 4x0.75 0.6 0.9 7.4 80
    17(32/32) 4x1 0.6 0.9 7.8 95
    16(30/30) 4x1.5 0.8 1.1 9.8 145
    14(50/30) 4x2.5 0.9 1.2 11.5 210
    12(56/28) 4 x 4 1 1.3 13.5 300
    10(84/28) 4 x 6 1 1.5 15.4 405
    18(24/32) 5x0.75 0.6 1 8.3 100
    17(32/32) 5x1 0.6 1 8.7 115
    16(30/30) 5x1.5 0.8 1.1 10.7 170
    14(50/30) 5x2.5 0.9 1.3 12.8 255
