    H05BN4-F

    • H05BN4-F, German Standard Industrial Cables

    Application and Description

    These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc.

    They are also suitable for caravans and camping equipment... The maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.

    Standard and Approval

    • CEI 20-19/12, CEI 20-35 (EN 60332-1), BS6500, BS7919,
    • ROHS compliant, VDE 0282 Part-12, IEC 60245-4, CE Low-Voltage

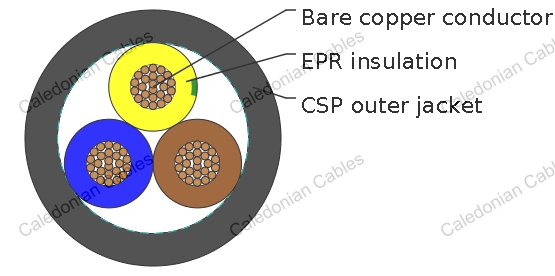

    Cable Construction

    Technical Characteristics

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    EPR(Ethylene Propylene Rubber) rubber EI7 insulation
    Color code VDE-0293-308
    CSP(Chlorosulphonated Polyethylene) outer jacket EM7



    Working voltage 300/500 volts
    Test voltage 2000 volts
    Flexing bending radius 6.0 x O
    Fixed bending radius 4.0 x O
    Temperature Range -20oC to +90oC
    Maximum Short Circuit Temperature +250oC
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm mm kg/km kg/km
    18(24/32) 2 x 0.75 0.6 0.8 6.1 29 54
    18(24/32) 3 x 0.75 0.6 0.9 6.7 43 68
    18(24/32) 4 x 0.75 0.6 0.9 7.3 58 82
    18(24/32) 5 x 0.75 0.6 1.0 8.1 72 108
    17(32/32) 2 x 1 0.6 0.9 6.6 19 65
    17(32/32) 3 x 1 0.6 0.9 7.0 29 78
    17(32/32) 4 x 1 0.6 0.9 7.6 38 95
    17(32/32) 5 x 1 0.6 1.0 8.5 51 125
