    H03VV-F/H03VVH2-F

    • H03VV-F/H03VVH2-F, German Standard Industrial Cables

    Application and Description

    These cable types are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, etc. As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus.

    Cables with cross section 0.75 mm^2 are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.

    Standard and Approval

    • CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,
    • CE low voltage directive 73/23/EEC & 93/68/EEC.ROHS compliant

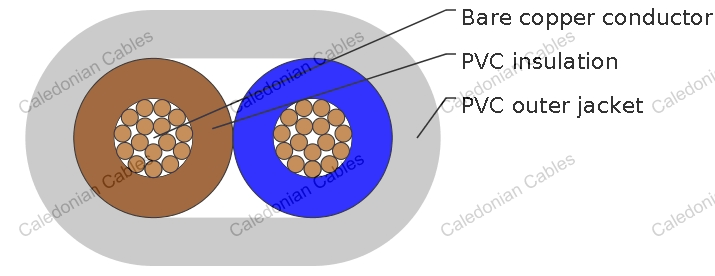

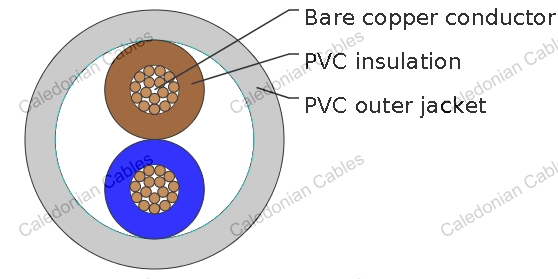

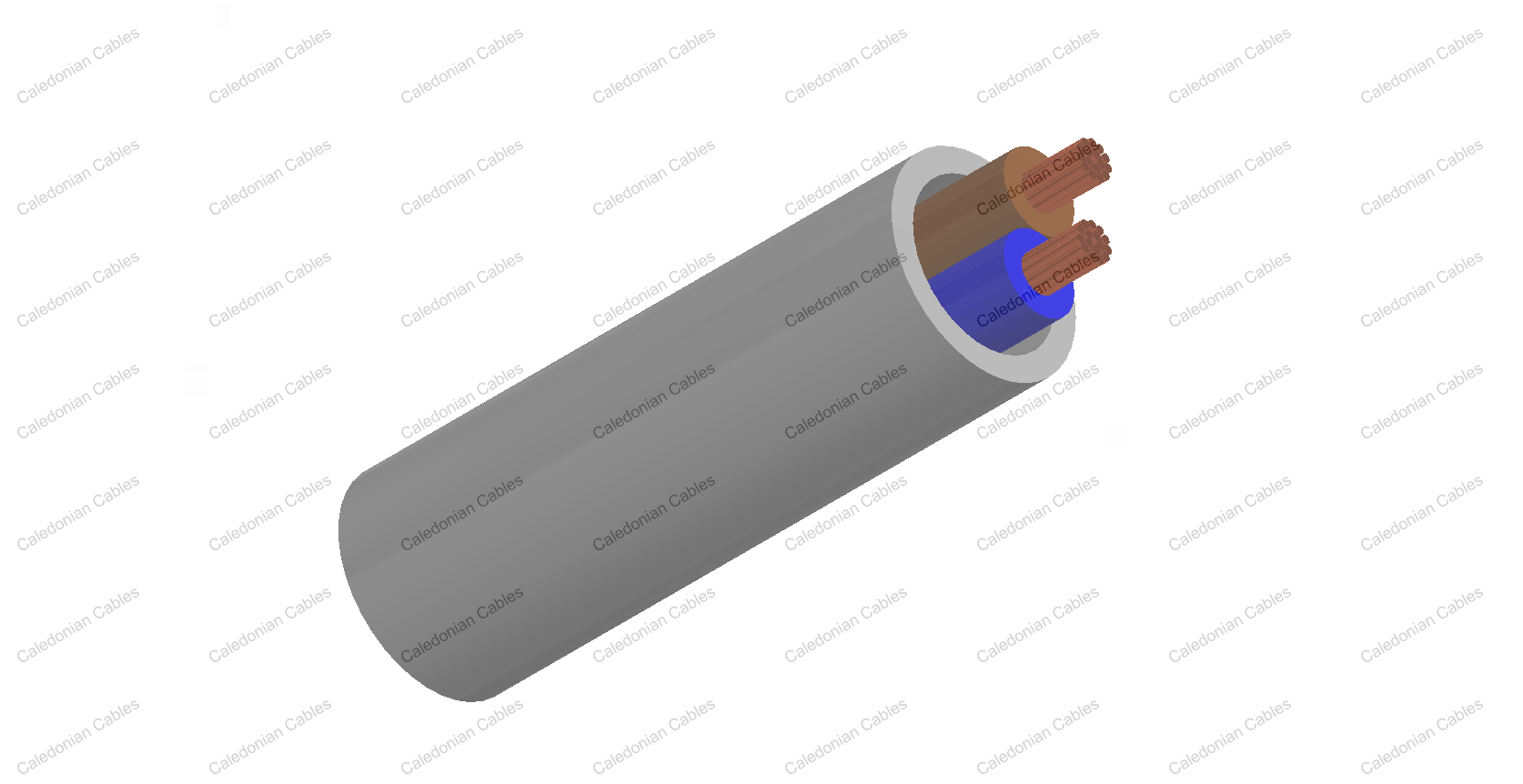

    Cable Construction


    Technical Characteristics

    Bare copper fine wire conductor
    Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
    PVC core insulation TI2 to VDE-0281 Part 1
    Color coded to VDE-0293-308
    Green-yellow grounding (3 conductors and above)
    PVC outer jacket TM2



    Working voltage 300/300 volts
    Test voltage 2000 volts
    Flexing bending radius 7.5 x O
    Static bending radius 4 x O
    Flexing temperature -5o C to +70o C
    Static temperature -40o C to +70o C
    Short circuit temperature +160o C
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm mm kg/km kg/km
    H03VV-F
    20(16/32) 2 x 0.50 0.5 0.6 5 9.6 38
    20(16/32) 3 x 0.50 0.5 0.6 5.4 14.4 45
    20(16/32) 4 x 0.50 0.5 0.6 5.8 19.2 55
    18(24/32) 2 x 0.75 0.5 0.6 5.5 14.4 46
    18(24/32) 3 x 0.75 0.5 0.6 6 21.6 59
    18(24/32) 4 x 0.75 0.5 0.6 6.5 28.8 72
    18(24/32) 5 x 0.75 0.5 0.6 7.1 36.0 87
    H03VVH2-F
    20(16/32) 2 x 0.50 0.5 0.6 3.2 x 5.2 9.7 32
    18(24/32) 2 x 0.75 0.5 0.6 3.4 x 5.6 14.4 35
