    H00V-D

    • H00V-D, German Standard Industrial Cables

    Application and Description

    These high flexible earth conductors are used for earthing of portable equipment and short circuiting.

    These cables perform a protective function in the live repair of high voltage power supply in railway systems, failing current equipment, alternating current systems and in networks of transmission and distribution.

    Because of that these are designated as safety cables. These earthing cables offer special characteristics with low weights, high flexibility to a wide temperature range and the behavior in high temperature.

    The protective overall PVC jacket assure essential function for proper protection against mechanical and chemical stresses.

    Standard and Approval

    • EN61138
    • VDE-0283 Part-3
    • DIN 46438 & DIN 46440
    • CE low voltage directive 73/23/EEC & 93/68/EEC
    • ROHS compliant

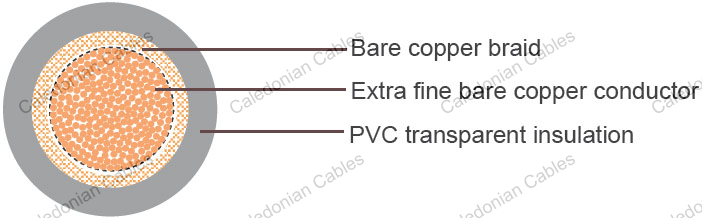

    Cable Construction

    Extra fine bare copper strands
    Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
    Overall bare copper wire braid (for ESUY type)
    PVC transparent jacket TM2
    High stress resistance
    Spark Test 6, 4 & 2 AWG: 5000V
    Spark Test 1 & 2/0 AWG: 6000V
    Spark Test 3/0 - 500 MCM: 8000V

    Technical Characteristics

    WORKING VOLTAGE N/A - earthing only
    TEST VOLTAGE 2000 volts
    MINIMAL BENDING RADIUS 12.0 x Ø
    TEMPERATURE RANGE -5 ºC to +70 ºC
    FLAME RETARDANT IEC 60332.1
    INSULATION RESISTANCE 20 MΩ x km

    Cable Parameter

    H00V-D (ESEU TYPE)

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
    # X MM² MM KG/KM KG/KM
    6(4200/41) 1 x 16 9.1 194 230
    4(3192/38) 1 x 25 10.5 280 335
    2(4480/38) 1 x 35 12.5 415 475
    1(6383/38) 1 x 50 14.2 585 670
    2/0(8918/38) 1 x 70 16.8 820 905
    3/0(12100/38) 1 x 95 19.8 1090 1220
    4/0(15300/38) 1 x 120 21.5 1360 1505
    300MCM(19152/38) 1 x 150 24 1650 1940
    350MCM(23580/38) 1 x 185 27.6 2150 2390
    500MCM(30600/38) 1 x 240 31 2750 3090

    H00V-D (ESY TYPE)

    AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
    # X MM² MM KG/KM KG/KM
    6(525/32) 1 x 16 8.5 155 185
    4(798/32) 1 x 25 10.0 240 270
    2(1120/32) 1 x 35 12.5 336 390
    1(1617/32) 1 x 50 14.0 480 575
    2/0(2254/32) 1 x 70 17.2 672 810
    3/0(3087/32) 1 x 95 19.5 912 1080
    4/0(3822/32) 1 x 120 22.8 1152 1320
    300MCM(4802/32) 1 x 150 25.4 1440 1680
