    U-1000 ARVFV

    Application and Description

    With a sheath and armor, U-1000 ARVFV is an enhanced version of the cables and U-1000 AR2V. They can be used in all industrial installations requiring mechanical protection.

    These cables can be provided in hard and SH C1 (NF C 32-323) and HR (resistant to aliphatic hydrocarbons). The design and characteristics of the materials comply with IEC 60502-1.

    Standard and Approval

    • NF C 32-322

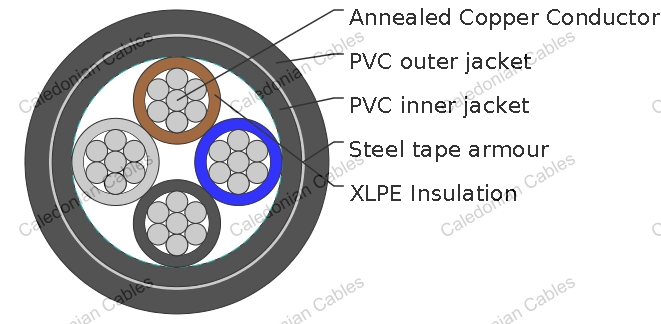

    Cable Construction

    Technical Characteristics

    Aluminum conductor
    Strands to IEC 60228 class 2
    XLPE insulation according to XP C 32-321
    Color codes to HD 308 S2 (XP C 32-321)
    Not fibrous and not hygroscopic filler
    Not fibrous and not hygroscopic filler
    Two steel tapes helically wraped armour
    Flexible black PVC outer jacket



    Working Voltage 600/1000 volts
    Test voltage 1000 volts
    Minimum bending radius 6 x O
    Operation temperature rage -10 °C to 60 °C
    Short-circuit temperature 250 °C
    Flame retardant NF C 32-070 C2
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG Cross Section Insulation thickness Amour thickness Minimum Sheath thickness Maximum Overall diameter Approx Cable weight
      mm^2 mm mm mm mm kg/km
    8 2x10 0.7 0.2 1.4 18.5 420
    6 2x16 0.7 0.2 1.5 20.5 540
    4 2x25 0.9 0.2 1.6 24.5 760
    2 2x35 0.9 0.2 1.7 27 930
    8 3x10 0.7 0.2 1.5 19 470
    6 3x16 0.7 0.2 1.5 22 590
    4 3x25 0.9 0.2 1.6 26 830
    2 3x35 0.9 0.2 1.7 29 1030
    1 3x50 0.9 0.2 1.8 32.5 1290
    2/0 3x70 1.1 0.2 2 37.5 1710
    3/0 3x95 1.1 0.5 2.1 43.5 2610
    4/0 3x120 1.2 0.5 2.3 47.5 3110
    300MCM 3x150 1.4 0.5 2.4 53 3770
    500MCM 3x185 1.6 0.5 2.5 58 4540
    750MCM 3x240 1.7 0.5 2.7 65.5 5620
    - 3x300 1.8 0.5 2.9 72 6830
    1 3x50+35 1.0/09 0.2 1.9 34.5 1500
    2/0 3x70+50 1.1/0.9 0.2 2 40 2000
    3/0 3x95+50 1.1/1.0 0.5 2.2 45 2870
    4/0 3x120+70 1.2/1.1 0.5 2.3 50 3460
    300MCM 3x150+70 1.4/1.1 0.5 2.5 54 4090
    500MCM 3x185+70 1.6/1.1 0.5 2.6 59 4980
    750MCM 3x240+95 1.7/1.1 0.5 2.8 66 6210
    8 4x10 0.7 0.2 1.5 20.5 540
    6 4x16 0.7 0.2 1.6 23.5 700
    4 4x25 0.9 0.2 1.7 28 1000
    2 4x35 0.9 0.2 1.8 31.5 1230
    1 4x50 1 0.2 1.9 35.5 1550
    2/0 4x70 1.1 0.5 2.1 42.5 2490
    3/0 4x95 1.1 0.5 2.3 47.5 3120
    4/0 4x120 1.2 0.5 2.4 53 3780
    300MCM 4x150 1.4 0.5 2.6 58.5 4550
    500MCM 4x185 1.6 0.5 2.7 64.5 5490
    750MCM 4x240 1.7 0.5 2.9 72.5 6860
    - 4x300 1.8 0.5 3.1 79.5 8250
    8 5x10 0.7 0.2 1.6 22.5 640
    6 5x16 0.7 0.2 1.8 26 820
    4 5x25 0.9 0.2 1.8 31 1190
