    H07V-K

    Application and Description

    These are not suitable to be installed for laying in tubes, under and surface mounting of plaster and also in closed installation conduits.

    These are not allowed to install for direct laying on cable trays, channel or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth.

    Standard and Approval

    • CEI 20-20, CEI20-52, HD 21.3 S3
    • CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

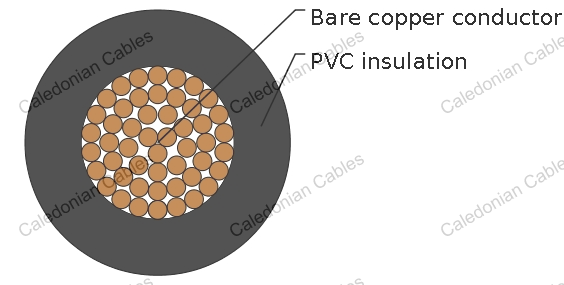

    Cable Construction

    Technical Characteristics

    Fine bare copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    Special PVC TI1 core insulation
    Cores to VDE-0293 colors on chart



    Working voltage 450/750V
    Test voltage 2500 volts
    Flexing bending radius 12.5 x O
    Static bending radius 12.5 x O
    Flexing temperature -5o C to +70o C
    Static temperature -30o C to +80o C
    Short circuit temperature +160o C
    Flame retardant IEC 60332.1
    Insulation resistance 10 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm kg/km kg/km
    16(30/30) 1 x 1.5 0,7 3.1 14.4 20
    14(50/30) 1 x 2.5 0,8 3.6 24.0 31
    12(56/28) 1 x 4 0,8 4.3 38.0 48
    10(84/28) 1 x 6 0,8 4.9 58.0 69
    8(80/26) 1 x 10 1,0 6.4 96.0 121
    6(128/26) 1 x 16 1,0 8.1 154.0 211
    4(200/26) 1 x 25 1,2 9.8 240 303
    2 (280/26) 1 x 35 1,2 11.1 336 417
    1 (400/26) 1 x 50 1,4 13.1 480 539
    2/0 (356/24) 1 x 70 1,4 15.5 672 730
    3/0 (485/24) 1 x 95 1,6 17.2 912 900
    4/0 (614/24) 1 x 120 1,6 19.7 1152 1135
    300 MCM (765/24) 1 x 150 1,8 21.3 1440 1410
    350 MCM (944/24) 1 x 185 2,0 23.4 1776 1845
    500MCM(1225/24) 1 x 240 2,2 27.1 2304 2270
