    H05V2-U / H07V2-U

    Application and Description

    These cables are for fixed protected installation inside appliances and in, or on, lighting fittings. Suitable for installation in surface mounted or embedded conduits, only for signalling and control circuits. Maximum conductor temperature in normal use 90°C. Not to be used in contact with object higher then 85°C. Not suitable for fixed distribution system.

    Standard and Approval

    • CEI20-20/7, HD 21.7 S2, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

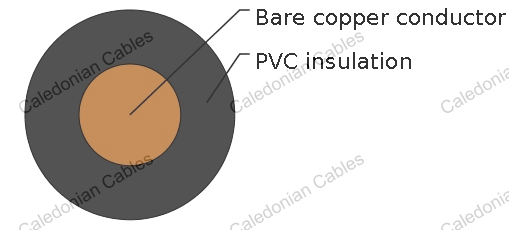

    Cable Construction

    Technical Characteristics

    Solid bare copper single wire
    Solid to DIN VDE 0281-3,NF C 32-201-3 and IEC 60227-3
    Special PVC TI3 ore insulation
    Cores to VDE-0293 colors on chart
    H05V-U (20, 18 & 17 AWG)
    H07V-U (16 AWG and Larger)



    Working voltage 300/500v (H05V-U)
    Working voltage 450/750v (H07V-U)
    Test voltage 2000V(H05V-U)/2500V (H07V-U)
    Flexing bending radius 15 x O
    Static bending radius 15 x O
    Flexing temperature -5oC to +70oC
    Static temperature -30oC to +80oC
    Short circuit temperature +160oC
    Flame retardant IEC 60332.1
    Insulation resistance 10 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm kg/km kg/km
    20 1 x 0.5 0.6 2.1 4.8 9
    18 1 x 0.75 0.6 2.2 7.2 11
    17 1 x 1 0.6 2.4 9.6 14
    16 1 x 1.5 0.7 2.9 14.4 21
    14 1 x 2.5 0.8 3.5 24.0 33
    12 1 x 4 0.8 3.9 38.0 49
    10 1 x 6 0.8 4.5 58.0 69
    8 1 x 10 1.0 5.7 96.0
