    H05V2-K UL / H07V2-K UL

    Application and Description

    H05V2-K UL / H07V2-K UL are internationally approved harmonized, UL/CSA and AWM/MTW approved PVC European flexible single-conductor wires with increased temperature range for HAR/IEC and higher working voltage for UL-AWM.

    Due to these increases it is suitable for use in connections and internal wirings of frequency converters. Can be found in appliance wiring and machine tool wiring as well as in control systems.

    They may also be used in pipes and flexible conduits. Recommended for the internal wiring of apparatus, switchboards and distributor boards in electronic and electrical equipment designed for international use in North American & European countries and for MRO replacement of international made equipment wire.

    Standard and Approval

    • NF C 32-201-7
    • HD 21.7 S2
    • H05V2-K / H07V2-K
    • VDE-0281 Part-3
    • UL-Standard and Approval 1063 MTW
    • UL-AWM Style 10269
    • CSA TEW
    • CSA-AWM 1 A/B
    • FT-1
    • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
    • ROHS compliant

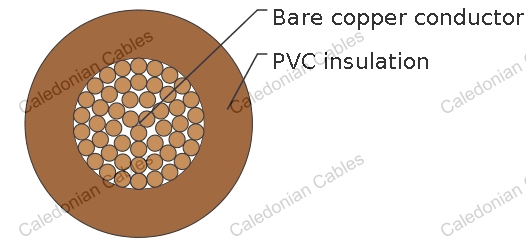

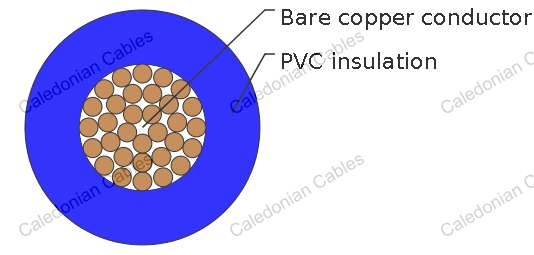

    Cable Construction

    Technical Characteristics

    Fine tinned copper strands
    Strands to VDE-0295 Class-5, IEC 60228 Class-5
    Special PVC core insulation
    Cores to VDE-0293 colors on chart
    H05V2-K UL (22, 20 & 18 AWG)
    H07V2-K UL (16 AWG and Larger)
    X05V2-K UL & X07V2-K UL for non-HAR colors



    Working voltage 300/500v (H05V2-K UL)
    Working voltage 450/750v (H07V2-K UL)
    Working voltage UL(MTW) & CSA 600v
    Working voltage UL (AWM) 1000v
    Test voltage 2500 volts (4000 volts UL)
    Flexing/Static bending radius 10-15 x O
    Temperature HAR/IEC -40oC to +90oC
    Temperature UL-AWM -40oC to +105oC
    Temperature UL-MTW -40oC to +90oC
    Temperature CSA-TEW -40oC to +105oC
    Flame retardant NF C 32-070, FT-1, UL VW-1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
      # x mm^2 mm mm kg/Km kg/Km
    20(16/32) 1 x 0.5 0.6 2.5 4.8 11
    18(24/32) 1 x 0.75 0.6 2.7 7.2 14
    17(32/32) 1 x 1 0.6 2.9 9.6 16
    16(30/30) 1 x 1.5 0,7 3.1 14.4 20
    14(50/30) 1 x 2.5 0,8 3.7 24 32
    12(56/28) 1 x 4 0,8 4.4 38 50
    10(84/28) 1 x 6 0,8 4.9 58 66
    8(80/26) 1 x 10 1,0 6.8 96 121
    6(128/26) 1 x 16 1,0 8.9 154 211
    4(200/26) 1 x 25 1,2 10.1 240 303
    2(280/26) 1 x 35 1,2 11.4 336 407
    1(400/26) 1 x 50 1,4 14.1 480 600
    2/0(356/24) 1 x 70 1,4 15.8 672 790
    3/0(485/24) 1 x 95 1,6 18.1 912 1067
    4/0(614/24) 1 x 120 1,6 19.5 1115 1277
