    6491B to BS 7211 (New BS EN 50525-3-41)

    • 6491B to BS 7211 (New BS EN 50525-3-41)
    • 6491B to BS 7211 (New BS EN 50525-3-41)
    • 6491B to BS 7211 (New BS EN 50525-3-41)
    • 6491B to BS 7211 (New BS EN 50525-3-41)
    • 6491B to BS 7211 (New BS EN 50525-3-41)

    Application and Description

    These cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. They can be used in trunking or conduit, or may be surface mounted when used for earthing. and they are generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt and which is particularly important where electronic equipment is installed. 6491B is equivalent to harmonized code H07Z-U/ H07Z-R/H07Z-K.

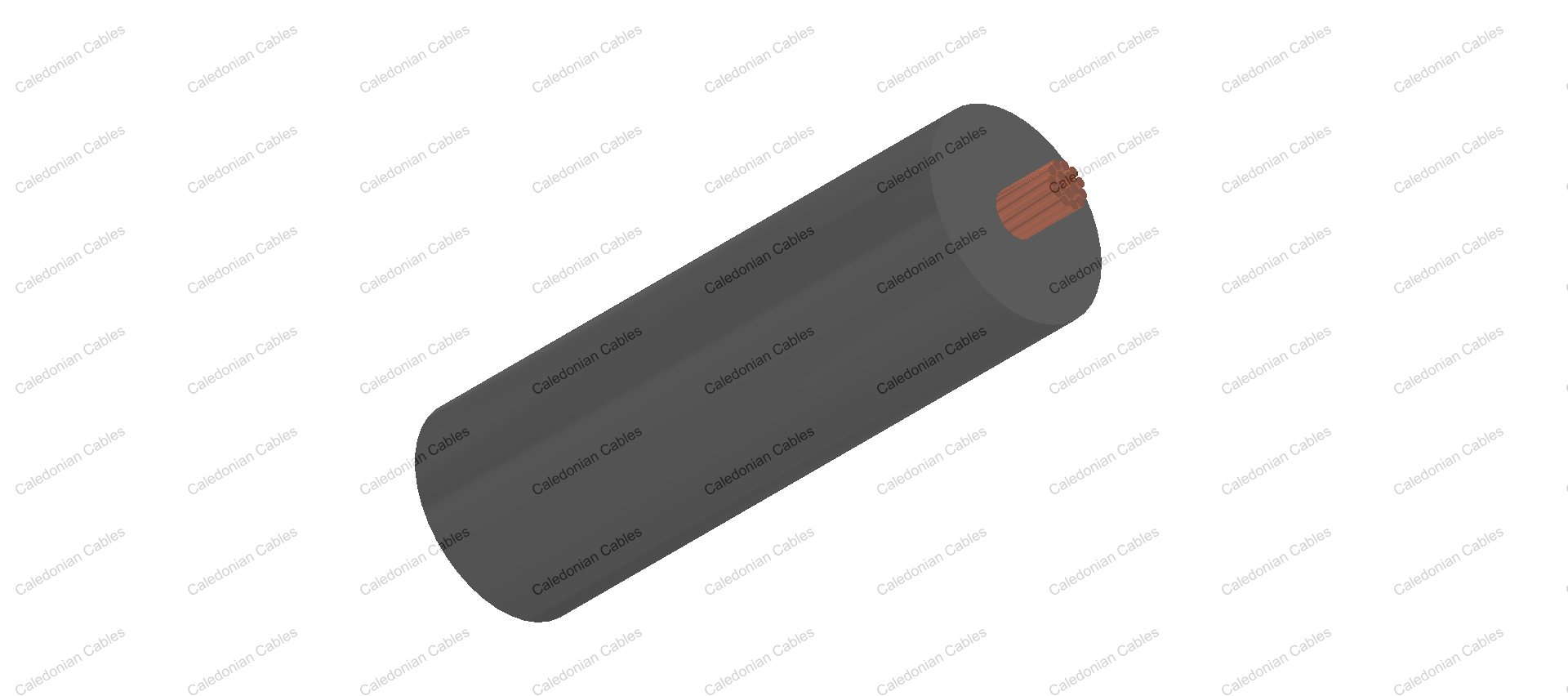

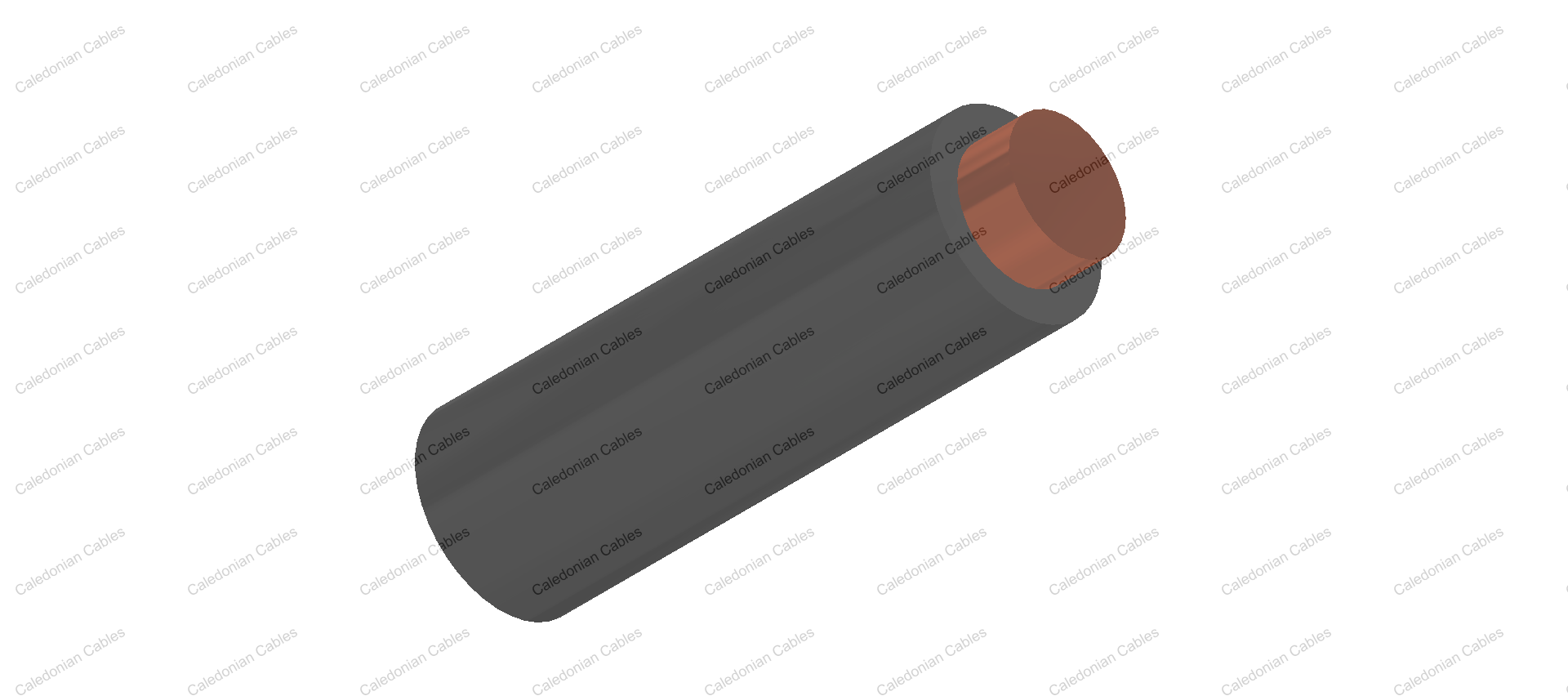

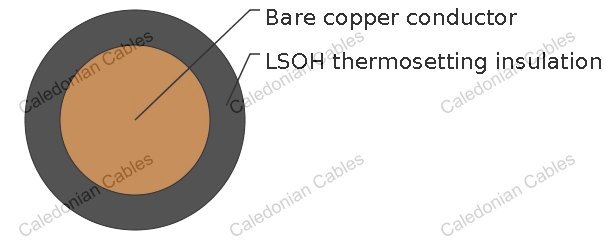

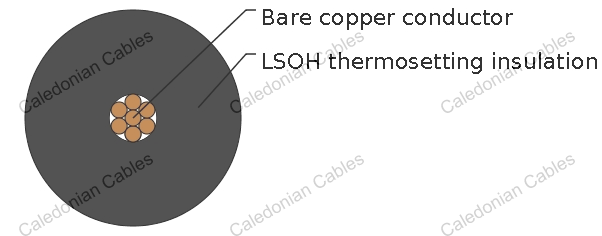

    Cable Construction

    • - Bare copper made of solid/strands conductor
    • - Solid to BS 6360 CL-1 or IEC 60228 CL-1(H07Z-U)
    • - Stranding to BS 6360 CL-2 or IEC 60228 CL-2(H07Z-R)
    • - Stranding to BS 6360 CL-5 or IEC 60228 CL-5(H07Z-K)
    • - LSOH thermosetting core insulation type EI5

    Core Identification

    Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink

    Technical Characteristics

    • - Working voltage: 450/750v
    • - Test voltage: 2500 volts
    • - Minimum bending radius: up to 10 mm^2 - 3xoverall diameter; above 25 mm^2 - 6xoverall diameter
    • - Operating temperature: +0o C to +90o C
    • - Short circuit temperature: +250o C
    • - Insulation resistance: 10 MΩxkm
    • - Halogen free acc. to EN 50267-2-1 / IEC 60754-1
    • - Smoke density acc. to EN 50268-2 / IEC 61034-2
    • - Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2
    • - Flame retardancy acc. to EN 50265-2-1, IEC 60332-1

    Cable Parameter

    AWG
    (No of Strands/
    Strand Diameter)
    No. of Cores x
    Nominal Cross
    Sectional Area
    #xmm^2
    Nominal
    Thickness of
    Insulation
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Copper
    Weight
    kg/km
    Nominal
    Weight
    kg/km
    16(solid) 1x1.5 7 2.8 14.4 20
    14(solid) 1x2.5 8 3.3 24 30
    12(solid) 1x4 8 3.8 38 45
    10(solid) 1x6 8 4.3 58 65
    8(solid) 1x10 10 5.5 96 105
    16(7/24) 1x1.5 0.7 3.0 14.4 21
    14(7/22) 1x2.5 0.8 3.6 24 33
    12(7/20) 1x4 0.8 4.1 39 49
    10(7/18) 1x6 0.8 4.7 58 71
    8(7/16) 1x10 1 6 96 114
    6(7/14) 1x16 1 6.8 154 172
    4(7/12) 1x25 1.2 8.4 240 265
    2(7/10) 1x35 1.2 9.3 336 360
    1(19/13) 1x50 1.4 10.9 480 487
    2/0(19/11) 1x70 1.4 12.6 672 683
    3/0(19/10) 1x95 1.6 14.7 912 946
    4/0(37/12) 1x120 1.6 16 1152 1174
    300MCM(37/11) 1x150 1.8 17.9 1440 1448
    350MCM(37/10) 1x185 2.0 20.0 1776 1820
    500MCM(61/11) 1x240 2.2 22.7 2304 2371
    -(61/10) 1x300 2.4 25.4 2980 3050
    -(61/9) 1x400 2.6 28.8 3765 3842
    -(61/8) 1x500 2.8 32.8 4725 4900
    -(127/10) 1x630 2.8 36.5 6205 6334
    16(30/30) 1 x 1.5 7 3.5 14.4 24
    14(50/30) 1 x 2.5 8 4 24 35
    12(56/28) 1 x 4 8 4.8 38 51
    10(84/28) 1 x 6 8 6 58 71
    8(80/26) 1 x 10 10 6.7 96 118
    6(128/26) 1 x 16 10 8.2 154 180
    4(200/26) 1 x 25 12 10.2 240 278
    2(280/26) 1 x 35 12 11.5 336 375
    1(400/26) 1 x 50 14 13.6 480 560
    2/0(356/24) 1 x 70 14 16 672 780
    3/0(485/24) 1 x 95 16 18.4 912 952
    4/0(614/24) 1 x 120 16 20.3 1152 1200
    300 MCM (765/24) 1 x 150 18 22.7 1440 1505
    350 MCM (944/24) 1 x 185 20 25.3 1776 1845
    500MCM(1225/24) 1 x 240 22 28.3 2304 2400
