    6241B/6242B/ 6243B to BS 7211

    Application and Description

    These cables are suitable for fixed installation particularly for situations in which low emission smoke and domestic wiring cable for the surface wiring of sockets and lighting where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Can be installed in fixed installations in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. Suitable for laying in conduit or trunking where mechanical protection is required.

    Cable Construction

    • - Fine bare copper strands
    • - Stranding to IEC 60228 CL-1 or 2
    • - Thermosetting core insulation type EI5 or GP 8

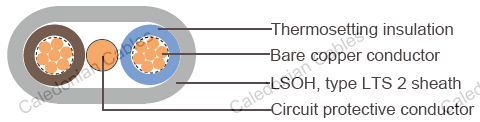

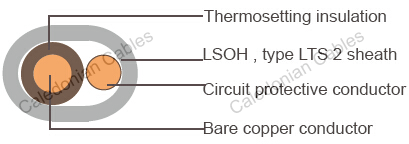

    • - The core or cores shall be laid parallel with the uninsulated circuit protective conductor
    • - For twin cores, the protective conductor centrally placed between cores in same plane

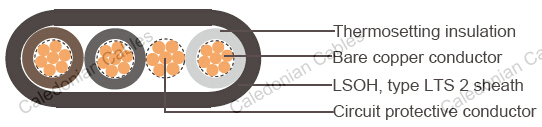

    • - For 3 cores, the protective conductor centrally placed between black and grey cores in same plane
    • - LSOH sheath, type LTS 2, white

    Core Identification

    • 2 cores: brown and blue, or, for 2 × 1.0 and 2 × 1.5 cables, brown and brown
    • 3 cores: brown, black (centre core) and grey

    Technical Characteristics

    • - Working voltage: 300/500 volts
    • - Test voltage: 2000 volts
    • - Flexing bending radius: 15xOverall diameter
    • - Static bending radius: 10xOverall diameter
    • - Flexing temperature: +5o C to +90o C
    • - Short circuit temperature: +250o C
    • - Insulation resistance: 10 MΩxkm
    • - Halogen free acc. to EN 50267-2-1 / IEC 60754-1
    • - Smoke density acc. to EN 50268-2 / IEC 61034-2
    • - Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2
    • - Flame retardancy acc. to EN 50265-2-1, IEC 60332-1

    Cable Parameter

    AWG
    (No of Strands/
    Strand Diameter)
    No. of Cores x
    Nominal Cross
    Sectional Area
    #xmm^2
    Nominal
    Thickness of
    Insulation
    mm
    Nominal
    Thickness of
    Sheath
    mm
    Nominal overall
    dimensions
    Circuit
    protective
    conductor
    AWG
    Nominal
    Weight
    kg/km
    lower limit
    mm
    upper limit
    mm
    6241B
    17 1 × 1.0 0.7 0.9 4.1 × 5.2 5.0 × 6.3 17 45
    16 1 × 1.5 0.7 0.9 4.4 × 5.4 5.3 × 6.6 17 55
    6242B
    17 2 × 1.0 0.7 0.9 4.1 × 7.6 5.0 × 9.1 17 68
    17(7/26) 2 × 1.0 0.7 0.9 4.2 × 7.8 5.1 × 9.4 17 73
    16 2 × 1.5 0.7 0.9 4.4 × 8.1 5.3 × 9.7 17 85
    16(7/24) 2 × 1.5 0.7 0.9 4.5 × 8.3 5.4 × 10 17 90
    14 2 × 2.5 0.7 1.0 4.9 × 9.3 6 × 11.2 16 120
    14(7/22) 2 × 2.5 0.7 1.0 5.0 × 9.5 6.1 × 11.4 16 125
    12(7/20) 2 × 4 0.7 1.0 5.5 × 10.4 6.7 × 12.6 16 175
    10(7/18) 2 × 6 0.7 1.1 6.2 × 12.0 7.5 × 14.6 14 240
    8(7/16) 2 × 10 0.7 1.2 7.3 × 14.5 8.8 × 17.6 12(7/20) 390
    6(7/14) 2 × 16 0.7 1.3 8.4 × 17.0 10.1 × 20.5 10(7/18) 560
    6243B
    17 3 × 1.0 0.7 0.9 4.1 × 10 5.1 × 12.1 17 91
    16 3 × 1.5 0.7 0.9 4.4 × 10.7 5.3 × 12.9 17 115
    14 3 × 2.5 0.7 1.0 4.9 × 12.0 6 × 14.6 17 170
    12(7/20) 3 × 4 0.7 1.0 5.5 × 14 6.7 × 16.9 16 196
    10(7/18) 3 × 6 0.7 1.1 6.2 × 16.2 7.5 × 19.5 14 291
    8(7/16) 3 × 10 0.7 1.2 7.3 × 19.5 8.8 × 23.6 12(7/20) 440
    6(7/14) 3 × 16 0.7 1.3 8.4 × 22.8 10.1 × 27.6 10(7/18) 670
