    0361TQ to BS 683

    Application and Description

    These cables are used for the transmission of high currents from the electric welding machine to the welding tool. they are suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.

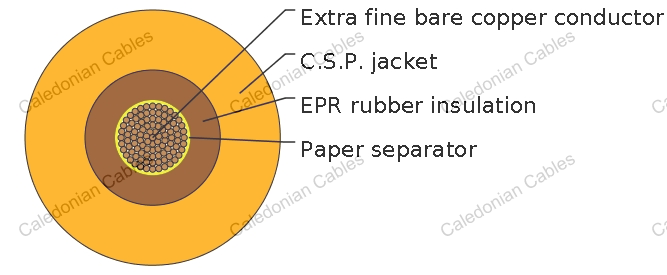

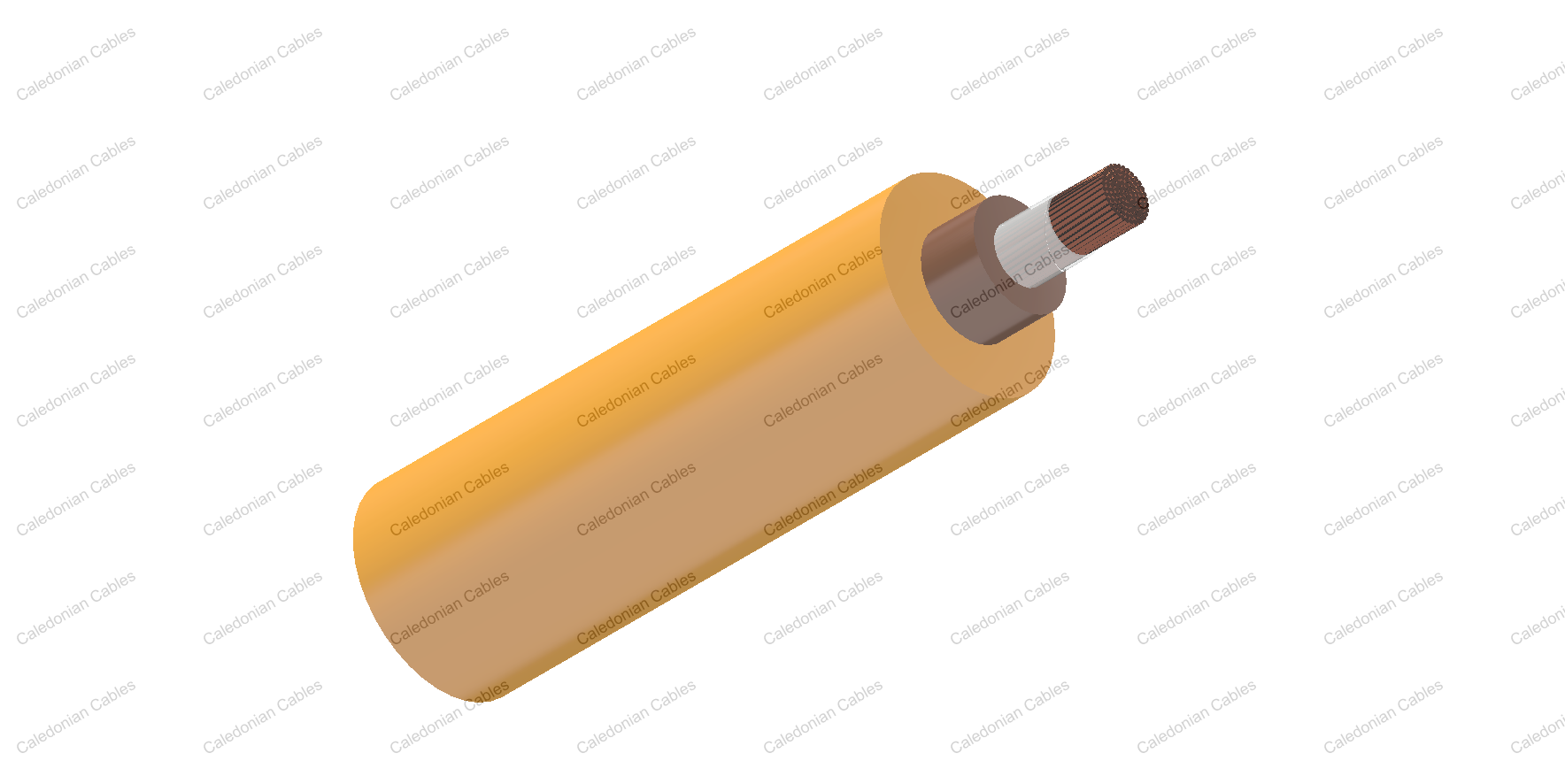

    Cable Construction

    • - Extra fine bare/tinned copper strands
    • - Stranding to BS 6360 CL-6,or CL-5 (120mm^2 and above)
    • - Synthetic or paper separator over core
    • - EPR GP4(Ethylene Propylene Rubber) to BS7655
    • - Polychloroprene rubber (neoprene) sheath EM5, HOFR (Heat and Oil Resistant and Flame Retardant) to BS7655 , black/ orange

    Technical Characteristics

    • - Working voltage: 100/100 volts
      (450V for non-welding applications if suitably protected from mechanical damage)
    • - Test voltage: 1000 volts
    • - Minimum bending radius: 6xOverall diameter
    • - Operating temperature: -25o C to +85o C
    • - Flame retardant: IEC 60332.1

    Cable Parameter

    AWG
    (No of Strands/
    Strand Diameter)
    No. of Cores x
    Nominal Cross
    Sectional Area
    #xmm^2
    Nominal
    Thickness of
    Insulation
    mm
    Nominal
    Thickness of
    Sheath
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    6(903/35) 1x16 1.2 2 11.0±0.5 230
    4(1407/35) 1x25 1.4 2 12.5±0.5 325
    2(1974/35) 1x35 1.4 2 14±0.5 440
    1(2830/35) 1x50 1.6 2.2 16.5±0.5 600
    2/0(3952/35) 1x70 1.6 2.4 18.5±0.5 830
    3/0(5370/35) 1x95 1.8 2.6 21.0±0.5 1110
    4/0(614/24) 1x120 1.8 2.8 23.5±0.5 1375
    300 MCM (765/24) 1x150 2 3 26±0.5 1680
    350 MCM (944/24) 1x185 2.2 3.2 27.5±0.5 2050
    500MCM(1225/24) 1x240 2.4 3.2 30.5±0.5 2630
