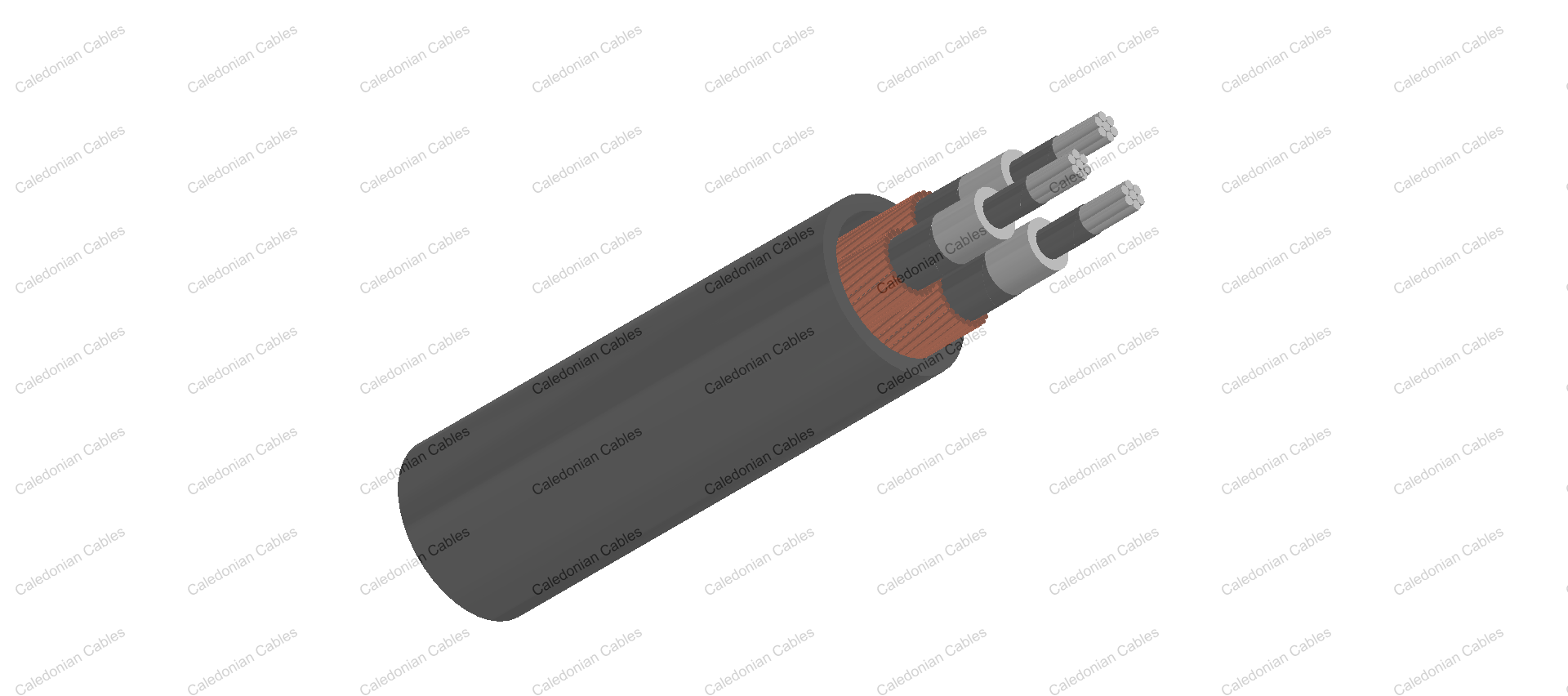

    3.8/6.6kV Three Core Individual Screened & PVC Sheathed (Al Conductor)

    • 3.8/6.6kV Three Core Individual Screened & PVC Sheathed (Al Conductor)
    • 3.8/6.6kV Three Core Individual Screened & PVC Sheathed (Al Conductor)

    Application

    These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

    Standard

    AS/NZS 1429.1

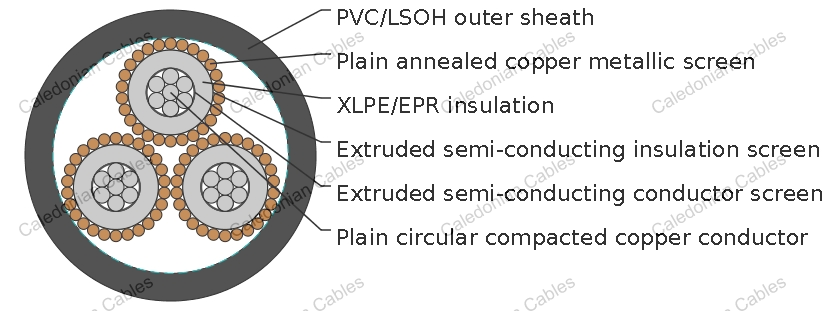

    Cable Construction

    • CONDUCTOR: Plain circular compacted aluminium to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
    • CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
    • INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
    • INSULATION SCREEN: Extruded semi-conducting compound
    • METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper ire: 10kA for nominal 1 second(HEAVY DUTY)
    • SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
    • Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative

    Technical Characteristics

    LIGHT DUTY

    NOMINAL CONDUCTOR AREA MAXIMUM CONDUCTOR DC RESISTANCE AT 20°C COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPACITANCE MAXIMUM DIAELECTRIC STRESS CURRENT RATINGS
    UNENCLOSED IN AIR UNENCLOSED IN AIR UNENCLOSED IN AIR
    MM2 OHM/KM OHM/KM OHM/KM MEGOHM.KM ΜF X KM KV X MM A A A
    35 0.868 1.11 0.12 8700 0.278 1.92 122 137 114
    50 0.641 0.822 0.115 7800 0.309 1.87 95 166 137
    70 0.443 0.569 0.106 6800 0.353 1.82 185 193 176
    95 0.32 0.41 0.101 6000 0.4 1.77 222 238 198
    120 0.253 0.325 0.0976 5500 0.439 1.74 257 270 225
    150 0.206 0.265 0.0948 5100 0.477 1.72 293 306 254
    185 0.164 0.211 0.0923 4700 0.518 1.7 333 342 292
    240 0.125 0.162 0.0896 4300 0.561 1.62 390 394 331
    300 0.1 0.13 0.0885 4100 0.582 1.5 447 447 378

    Cable Parameter

    LIGHT DUTY

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON EACH CORE NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. OVERALL DIAMETER APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM KG/100M
    35 6.9 2.5 13 6.8 ? 14.5 39.5 123
    50 8.1 2.5 14.2 6.8 ? 15.6 42.1 141
    70 9.6 2.5 15.8 7.9 ? 17.3 45.9 174
    95 11.4 2.5 17.5 8.5 ? 18.9 49.6 209
    120 12.8 2.5 18.9 9.1 ? 20.5 53.2 241
    150 14.2 2.5 20.3 9.6 ? 21.9 56.4 276
    185 15.7 2.5 21.8 10.2 ? 23.5 60.1 320
    240 18 2.6 24.3 10.8 ? 26.1 66.2 392
    300 20.1 2.8 27 11.9 ? 29.0 72.7 473

    Technical Characteristics

    HEAVY DUTY

    NOMINAL CONDUCTOR AREA MAXIMUM CONDUCTOR DC RESISTANCE AT 20°C COND. AC RESISTANCE AT 50HZ AND 90°C INDUCTIVE REACTANCE AT 50HZ INSULATION RESISTANCE AT 20°C CONDUCTOR TO SCREEN CAPACITANCE MAXIMUM DIAELECTRIC STRESS CURRENT RATINGS
    UNENCLOSED IN AIR UNENCLOSED IN AIR UNENCLOSED IN AIR
    MM2 OHM/KM OHM/KM OHM/KM MEGOHM.KM ΜF X KM KV X MM A A A
    35 0.868 1.11 0.12 8700 0.278 1.92 122 137 114
    50 0.641 0.822 0.115 7800 0.309 1.87 95 166 137
    70 0.443 0.569 0.106 6800 0.353 1.82 185 193 176
    95 0.32 0.41 0.101 6000 0.4 1.77 222 238 198
    120 0.253 0.325 0.0976 5500 0.439 1.74 257 270 225
    150 0.206 0.265 0.0948 5100 0.477 1.72 293 306 254
    185 0.164 0.211 0.0923 4700 0.518 1.7 333 342 292
    240 0.125 0.162 0.0896 4300 0.561 1.62 390 394 331
    300 0.1 0.13 0.0885 4100 0.582 1.5 447 447 378
    400 0.0778 0.102 0.0857 3900 0.613 1.39 ? ? ?

    Cable Parameter

    HEAVY DUTY

    SECTIONAL AREA OF CONDUCTOR NOM. CONDUCTOR DIAMETER NOM. INSULATION THICKNESS NOM. DIAMETE OVER INSULATION SCREEN AREA ON EACH CORE NO. AND DIAMTER OF SCREENED WIRES NOM. DIAMETE OVER SCREENED WIRES NOM. OVERALL DIAMETER APPROX. MASS
    MM2 MM MM MM MM2 NO X MM MM MM KG/100M
    35 6.9 2.5 13 7.9 14 x 0.85 16.3 40.5 140
    50 8.1 2.5 14.2 10.8 19 x 0.85 17.5 43.1 170
    70 9.6 2.5 15.8 15.3 27 x 0.85 19.1 46.8 210
    95 11.4 2.5 17.5 20.4 36 x 0.85 20.8 50.8 270
    120 12.8 2.5 18.9 22.7 40 x 0.85 22.2 54.1 305
    150 14.2 2.5 20.3 22.7 40 x 0.85 23.6 57.3 340
    185 15.7 2.5 21.8 22.7 40 x 0.85 25.1 60.8 385
    240 18 2.6 24.3 22.7 40 x 0.85 27.6 66.6 465
    300 20.1 2.8 27 22.7 40 x 0.85 30.3 72.8 550
    400 23 3 30.3 22.7 40 x 0.85 33.6 80.3 660
