    XLPE Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV

    • XLPE Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV
    • XLPE Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV

    Application

    These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

    Standard

    • AS/NZS 5000.1
    • AS/NZS 3008
    • AS1125

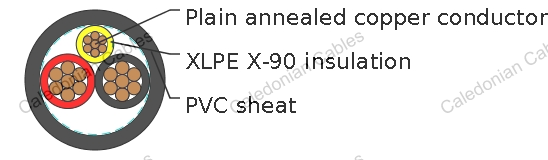

    Construction

    Conductor Plain annealed copper.
    Insulation XLPE X-90.
    Insulation colour: 2C + E - Red, Black, Green/yellow
    Sheath: Polyvinylchloride compound PVC 5V-90
    Sheath colour: Black, other colors are available upon request

    Technical Characteristics

    Conductor Current Ratings Electrical Characteristics
    Nominal Area mm^2 Unenclosed  In Air A Buried Direct A Buried In Ducts A Maximum DC Resistance @20°C
    Ohm/km
    Maximum AC Resistance @90°C
    Ohm/km
    Reactance
    Ohm/km
    Single Phase Voltage Drop
    @90°C
    mV/Am
    10 80 107 82 1.83 2.33 0.084 1.68
    16 107 139 107 1.51 1.47 0.081 2.95
    25 143 182 139 0.727 0.927 0.081 1.86
    35 160 130 160 0.524 0.669 0.0786 1.35
    50 195 160 190 0.387 0.494 0.0751 1.00
    70 250 200 235 0.268 0.343 0.0741 0.703
    95 310 240 285 0.193 0.248 0.0725 0.520
    120 360 285 325 0.153 0.197 0.0713 0.423

    Cable Parameter

    Nom. conductor area
    mm^2
    Conductor
    No./ OD
    Nom. insulation thickness mm Nom. earth conductor area
    mm^2
    Nom. earth conductor insulation thickness
    mm
    Nom. sheath thickness mm Nom. overall diameter mm Approx. mass kg/km
    10 7/1.35 0.7 4 0.7 1.4 14.9 380
    16 7/1.70 0.7 6 0.7 1.4 16.6 520
    25 7/2.14 0.9 6 0.7 1.4 20.2 750
    35 7/2.65 0.9 10 0.7 1.4 23.0 985
    50 19/1.89 1.0 16 0.7 1.4 24.1 1310
    70 19/2.24 1.1 25 0.9 1.4 29.8 1860
    95 19/2.65 1.1 25 0.9 1.5 31.6 2415
    120 19/2.94 1.2 35 0.9 1.6 35.5 3055
