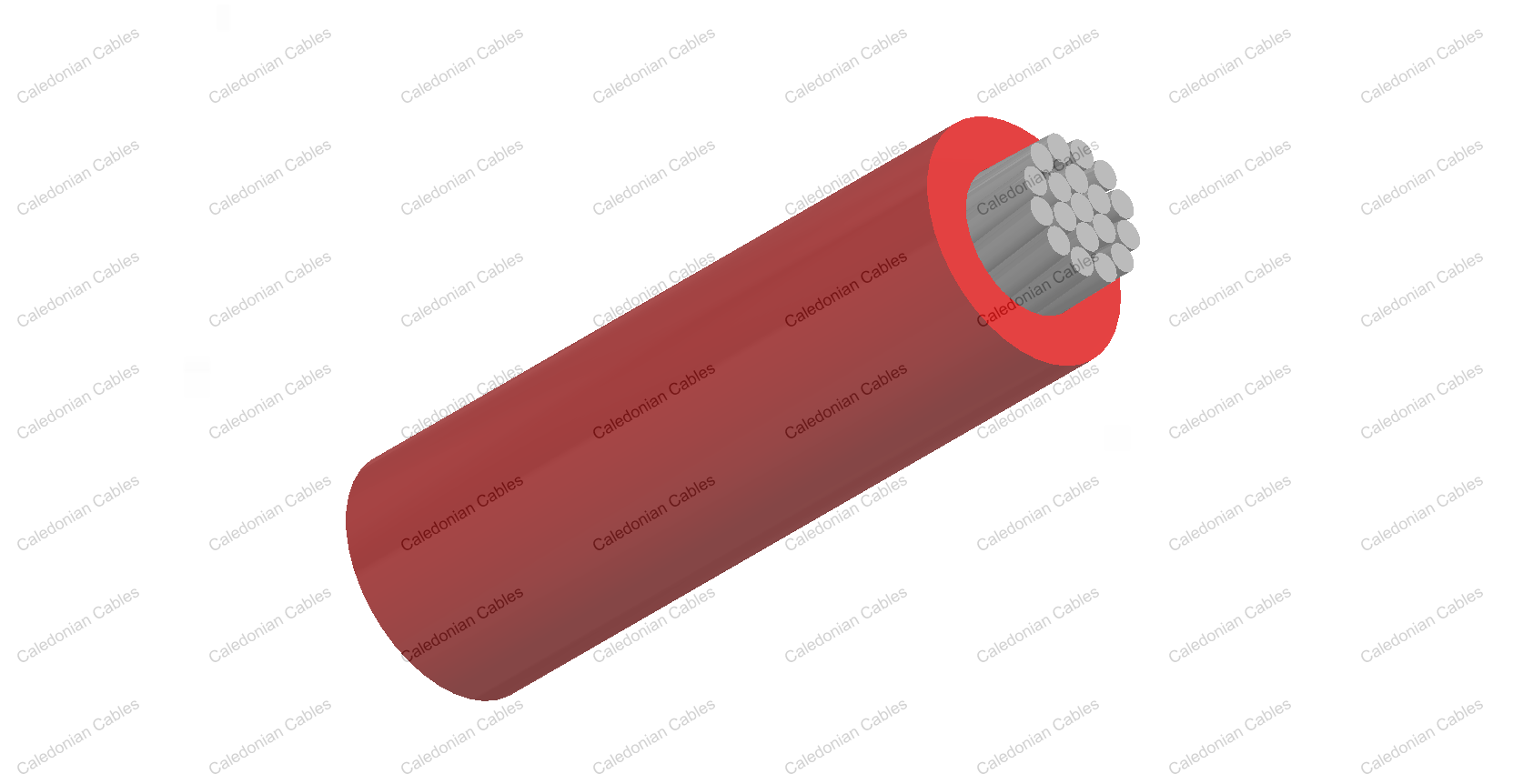

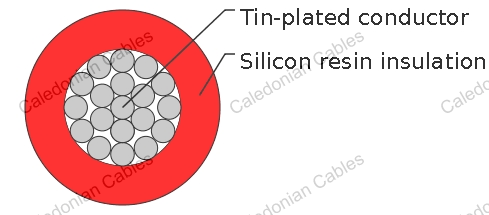

Silicon resin high-temperature cable

SDA-1526 is applied to high temperature situation such as electrons , family machines, lighting lamps, inner of burning machinery, and so on

Outstanding insulation property, high-and-low-temperature resistance, corona and electric arc resistance, water-proof.
Outstanding resistance to weather-aging, ozone and chemicals.
With silicone resin, the H-grade motor, other electric appliances would be size-small, weight-light, last-long and could be used under harsh environment.
When over loaded, the motor or other electric appliance would not go out of order and would not burn heavily. The gasses giving off are not poisonous. The remains after burning is silicon dioxide.

Conductor			Isolation			Max conductor resistance in 20oC Ω/km	Gross Weight kg/km
AWG	Nominal cross section mm^2	Conductor construction No./mm	Nominal thickness mm	Nominal O.D. mm	Max O.D. mm	Max conductor resistance in 20oC Ω/km	Gross Weight kg/km
26	0.128	7/0.16	0.78	2.1	2.3	143	4.6
24	0.205	7/0.20	0.78	2.2	2.4	92	5.7
22	0.324	7/0.26	0.78	2.4	2.6	56.8	8.3
20	0.519	7/0.32	0.78	2.5	2.7	40.1	10.4
18	0.823	7/0.40	0.78	2.8	3	23	14.6
16	1.31	7/0.50	0.78	3.1	3.3	14.6	20
14	2.08	41/0.254	0.78	3.6	3.8	9.9	27
12	3.31	19/0.50	0.78	4.1	4.3	5.4	36
24	0.2	1/0.50	0.78	2.2	2.4	95	5.9
24	0.2	12/0.15	0.78	2.2	2.4	95	5.9
22	0.3	1/0.62	0.78	2.3	2.5	71.2	7.2
22	0.3	17/0.15	0.78	2.3	2.5	71.2	7.2
20	0.5	1/0.80	0.78	2.5	2.7	40.1	10.1
20	0.5	28/0.15	0.78	2.5	2.7	40.1	10.1
18	0.75	1/1.0	0.78	2.8	3	26.7	13.2
