    10KV Silicone Rubber Insulation High Voltage Lead Wire

    Product application

    Applicable for electronics or electrical appliance, lighting etc. high temperature high voltage power.

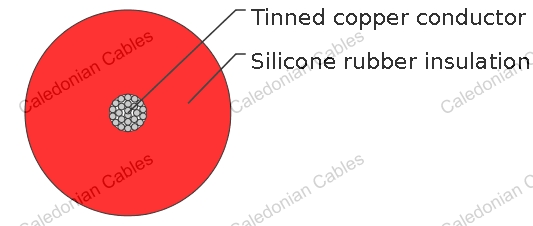

    Construction

    • Conductor: Tinned copper wire
    • Insulation: silicone rubber

    Technical

    • Working voltage: 10kV
    • Spark test: AC25KV/ 0.15 S
    • Vol. test: 30KV/5 min
    • Temp range: -60 ℃ ~ +200 ℃
    • Tensile strength(Before aging): ≥5.0N/mm2
    • Elongation at break(Before aging): ≥150%
    • Tensile strength(After aging): ≥4.0N/mm2
    • Elongation at break(After aging): ≥120%

    Product specification

    No of Cores Section Conductor Structure Nominal Insulation thickness Nominal Wire OD
    mm2 No./mm mm mm
    1 0.75 24/0.20 2.8 6.75
    1 1.0 32/0.20 2.8 6.95
    1 1.5 30/0.25 3.0 7.60
    1 2.0 41/0.25 3.0 7.90
    1 2.5 49/0.25 3.2 8.40
    1 4 56/0.30 3.2 9.10
    1 6 84/0.30 3.4 10.10
    1 10 84/0.40 3.4 11.40
    1 16 126/0.40 3.6 13.00
    1 25 196/0.40 3.6 14.5
    1 35 276/0.40 3.8 16.2
    1 50 396/0.40 3.8 18.3
    1 70 360/0.50 4.0 20.4
    1 95 475/0.50 4.0 22.5
    1 120 608/0.50 5.0 26.0
    1 150 756/0.50 5.0 28.0
    1 185 925/0.50 5.2 30.4
    1 240 1221/0.50 5.5 34.0
