    GKW-RW/S 300/500V Thin Wall Multicore

    • GKW-RW/S 300/500V Thin Wall Multicore, Railway GKW Cables
    • GKW-RW/S 300/500V Thin Wall Multicore
    • GKW-RW/S 300/500V Thin Wall Multicore

    Application

    Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

    Standards

    • EN45545-2
    • BS 6853 -1a
    • DIN 5510-2 1-4
    • NFF 16-101 F0

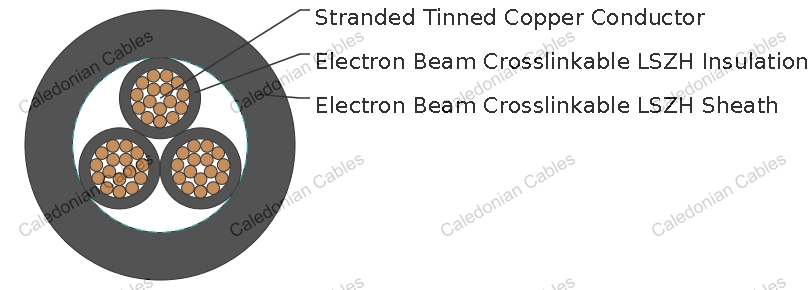

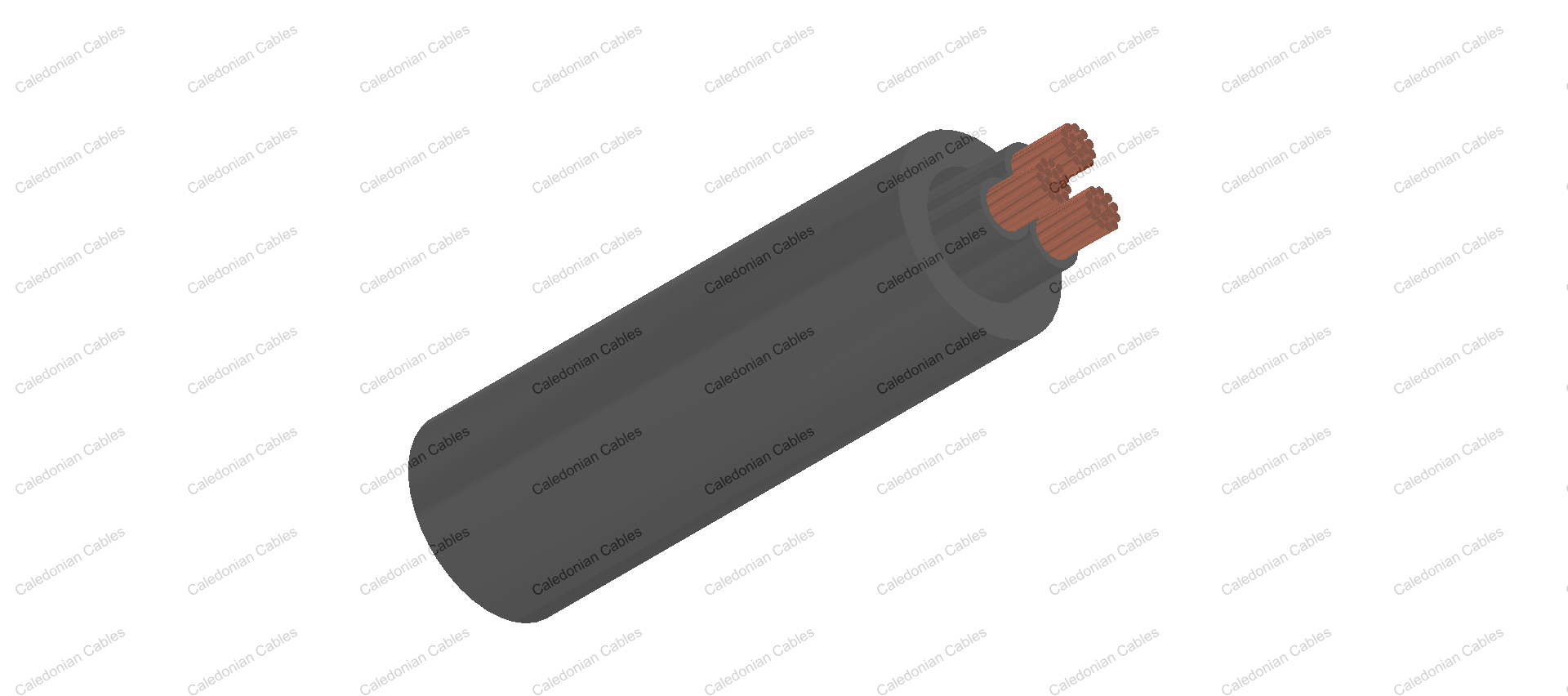

    Cable Construction

    Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.

    Insulation : Electron beam crosslinkable LSZH compound.

    Sheath : Electron beam crosslinkable LSZH compound.

    Electrical Characteristics at 20 °C

    Nominal Conductor Cross Section mm² 0.5 0.75 1 1.5 2.5
    Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21
    Voltage Rating KV 0.3/0.5

    Mechanical and Thermal Properties

    Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing)

    Temperature Range : -40℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)

    Short Circuit Temperature : +280℃

    Dimensions and Weight

    No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
    No.×mm² No./mm mm mm kg/km
    2×0.5 16/0.20 0.18 4.5 29
    3×0.5 16/0.20 0.18 4.6 36
    4×0.5 16/0.20 0.18 5.0 44
    5×0.5 16/0.20 0.18 5.4 52
    6×0.5 16/0.20 0.18 5.9 59
    7×0.5 16/0.20 0.18 6.4 71
    8×0.5 16/0.20 0.18 6.8 81
    2×0.75 24/0.20 0.18 4.8 37
    3×0.75 24/0.20 0.18 5.1 48
    4×0.75 24/0.20 0.18 5.6 58
    5×0.75 24/0.20 0.18 6.1 69
    6×0.75 24/0.20 0.18 6.7 81
    7×0.75 24/0.20 0.18 7.1 93
    8×0.75 24/0.20 0.18 7.7 108
    16×0.75 24/0.20 0.18 9.5 175
    18×0.75 24/0.20 0.18 10.1 198
    2×1.0 32/0.20 0.18 5.2 45
    3×1.0 32/0.20 0.18 5.5 59
    4×1.0 32/0.20 0.18 6.2 73
    5×1.0 32/0.20 0.18 6.7 87
    12×1.0 32/0.20 0.18 9.4 174
    2×1.5 30/0.25 0.22 6.0 59
    3×1.5 30/0.25 0.22 6.4 81
    4×1.5 30/0.25 0.22 7.1 99
    5×1.5 30/0.25 0.22 7.7 123
    6×1.5 30/0.25 0.22 8.5 143
    7×1.5 30/0.25 0.22 9.1 163
    8×1.5 30/0.25 0.22 9.8 192
    10×1.5 30/0.25 0.22 10.5 215
    12×1.5 30/0.25 0.22 11.1 244
    16×1.5 30/0.25 0.22 12.3 326
    2×2.5 50/0.25 0.28 7.1 89
    3×2.5 50/0.25 0.28 7.4 117
    4×2.5 50/0.25 0.28 8.3 150
    5×2.5 50/0.25 0.28 9.1 182
