    3GKW-DW/S EMC 0.6/1KV Dual Wall Screened Multicore

    • 3GKW-DW/S EMC 0.6/1KV Dual Wall Screened Multicore
    • 3GKW-DW/S EMC 0.6/1KV Dual Wall Screened Multicore

    Application

    Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

    Standards

    • EN45545-2
    • BS 6853 -1a
    • DIN 5510-2 1-4
    • NFF 16-101 F0

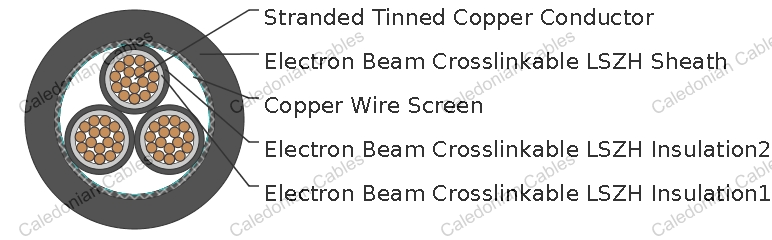

    Cable Construction

    Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.

    Insulation1 : Electron beam crosslinkable LSZH compound.

    Insulation2 : Electron beam crosslinkable LSZH compound.

    Screen : Copper wire screen

    Sheath : Electron beam crosslinkable LSZH compound.

    Electrical Characteristics at 20 °C

    Nominal Conductor Cross Section mm² 0.25 0.5 0.75 1 1.5 2.5
    Maximum Conductor Resistance Ω/km 88.5 40.1 26.7 20.0 13.7 8.21
    Voltage Rating KV 0.6/1

    Mechanical and Thermal Properties

    Minimum Bending Radius : 4xOD (Static); 8xOD (Flexing)

    Temperature Range : -60℃ ~ +120℃ (Static); -40℃ ~ +90℃ (Flexing)

    Short Circuit Temperature : +280℃

    Dimensions and Weight

    No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
    No.×mm² No./mm mm mm kg/km
    2×0.5 19/0.18 16/0.20 0.2 4.0 24
    3×0.5 19/0.18 16/0.20 0.2 4.2 30
    5×0.5 19/0.18 16/0.20 0.2 5.0 43
    6×0.5 19/0.18 16/0.20 0.2 5.4 51
    9×0.5 19/0.18 16/0.20 0.2 6.7 64
    12×0.5 19/0.18 16/0.20 0.2 6.9 89
    16×0.5 19/0.18 16/0.20 0.2 7.8 115
    25×0.5 19/0.18 16/0.20 0.2 9.5 170
    30×0.5 19/0.18 16/0.20 0.2 10.1 204
    2×2×0.5 19/0.18 16/0.20 0.2 5.8 50
    2×0.75 19/0.22 24/0.20 0.2 4.4 32
    4×0.75 19/0.22 24/0.20 0.2 5.0 49
    9×0.75 19/0.22 24/0.20 0.2 7.7 106
    14×0.75 19/0.22 24/0.20 0.2 8.4 140
    27×0.75 19/0.22 24/0.20 0.2 11.3 268
    36×0.75 19/0.22 24/0.20 0.2 12.8 360
    3×1.0 19/0.25 32/0.20 0.2 5.0 45
    4×1.0 19/0.25 32/0.20 0.2 5.5 60
    6×1.0 19/0.25 32/0.20 0.2 6.6 88
    12×1.0 19/0.25 32/0.20 0.2 8.6 160
    14×1.0 19/0.25 32/0.20 0.2 9.1 174
    20×1.0 19/0.25 32/0.20 0.2 11.2 255
    50×1.0 19/0.25 32/0.20 0.2 16.8 620
    2×1.5 37/0.22 30/0.25 0.3 5.4 55
    5×1.5 37/0.22 30/0.25 0.3 7.1 110
    7×1.5 37/0.22 30/0.25 0.3 8.4 150
    10×1.5 37/0.22 30/0.25 0.3 9.9 170
    16×1.5 37/0.22 30/0.25 0.3 11.7 310
    18×1.5 37/0.22 30/0.25 0.3 12.4 350
    24×1.5 37/0.22 30/0.25 0.3 14.4 450
    30×1.5 37/0.22 30/0.25 0.3 15.6 560
    50×1.5 37/0.22 30/0.25 0.3 20.1 868
    3×2.5 37/0.29 50/0.25 0.3 7.0 105
    6×2.5 37/0.29 50/0.25 0.3 9.6 200
    12×2.5 37/0.29 50/0.25 0.3 12.6 360
    18×2.5 37/0.29 50/0.25 0.3 15.3 545
    24×2.5 37/0.29 50/0.25 0.3 17.8 695
    27×2.5 37/0.29 50/0.25 0.3 18.2 780
    30×2.5 37/0.29 50/0.25 0.3 19.3 870
    36×2.5 37/0.29 50/0.25 0.3 21.0 1050
    5×0.75 19/0.22 24/0.20 0.2 6.1 75
    6×0.75 19/0.22 24/0.20 0.2 6.6 85
    7×0.75 19/0.22 24/0.20 0.2 7.2 100
    8×0.75 19/0.22 24/0.20 0.2 7.7 113
    10×0.75 19/0.22 24/0.20 0.2 8.1 130
    12×0.75 19/0.22 24/0.20 0.2 8.4 150
    14×0.75 19/0.22 24/0.20 0.2 9.1 169
    16×0.75 19/0.22 24/0.20 0.2 9.7 206
    18×0.75 19/0.22 24/0.20 0.2 10.1 230
    20×0.75 19/0.22 24/0.20 0.2 11.1 256
    24×0.75 19/0.22 24/0.20 0.2 12.0 294
    25×0.75 19/0.22 24/0.20 0.2 12.3 300
    2×2×0.75 19/0.22 24/0.20 0.2 7.1 85
    3×2×0.75 19/0.22 24/0.20 0.2 7.6 109
    4×2×0.75 19/0.22 24/0.20 0.2 9.9 143
    5×2×0.75 19/0.22 24/0.20 0.2 10.7 182
    6×2×0.75 19/0.22 24/0.20 0.2 11.9 226
    7×2×0.75 19/0.22 24/0.20 0.2 13.2 279
    8×2×0.75 19/0.22 24/0.20 0.2 13.4 291
    10×2×0.75 19/0.22 24/0.20 0.2 14.8 333
    3×3×0.75 19/0.22 24/0.20 0.2 8.9 151
    5×4×0.75 19/0.22 24/0.20 0.2 12.8 288
    2×1.0 19/0.25 32/0.20 0.2 5.0 50
    3×1.0 19/0.25 32/0.20 0.2 5.5 60
    4×1.0 19/0.25 32/0.20 0.2 5.8 72
    5×1.0 19/0.25 32/0.20 0.2 6.6 88
    6×1.0 19/0.25 32/0.20 0.2 7.3 114
    7×1.0 19/0.25 32/0.20 0.2 7.9 133
    8×1.0 19/0.25 32/0.20 0.2 8.5 150
    9×1.0 19/0.25 32/0.20 0.2 8.9 160
    10×1.0 19/0.25 32/0.20 0.2 8.9 168
    12×1.0 19/0.25 32/0.20 0.2 9.2 188
    16×1.0 19/0.25 32/0.20 0.2 10.5 250
    18×1.0 19/0.25 32/0.20 0.2 11.2 275
    25×1.0 19/0.25 32/0.20 0.2 12.7 355
    27×1.0 19/0.25 32/0.20 0.2 13.3 395
    30×1.0 19/0.25 32/0.20 0.2 13.8 450
    36×1.0 19/0.25 32/0.20 0.2 15.1 530
    42×1.0 19/0.25 32/0.20 0.2 16.3 604
    50×1.0 19/0.25 32/0.20 0.2 17.8 690
    2×2×1.0 19/0.25 32/0.20 0.2 7.8 107
    4×2×1.0 19/0.25 32/0.20 0.2 9.4 128
    6×2×1.0 19/0.25 32/0.20 0.2 11.6 239
    12×2×1.0 19/0.25 32/0.20 0.2 14.3 400
    4×3×1.0 19/0.25 32/0.20 0.2 11.5 230
    3×4×1.0 19/0.25 32/0.20 0.2 11.3 245
    4×4×1.0 19/0.25 32/0.20 0.2 12.5 265
    2×1.5 37/0.22 30/0.25 0.3 5.8 70
    3×1.5 37/0.22 30/0.25 0.3 6.1 81
    4×1.5 37/0.22 30/0.25 0.3 6.7 100
    5×1.5 37/0.22 30/0.25 0.3 7.7 134
    6×1.5 37/0.22 30/0.25 0.3 8.3 153
    7×1.5 37/0.22 30/0.25 0.3 9.1 184
    8×1.5 37/0.22 30/0.25 0.3 10.3 222
    9×1.5 37/0.22 30/0.25 0.3 10.5 234
    10×1.5 37/0.22 30/0.25 0.3 10.5 240
    12×1.5 37/0.22 30/0.25 0.3 10.9 268
    16×1.5 37/0.22 30/0.25 0.3 12.5 364
    18×1.5 37/0.22 30/0.25 0.3 13.2 405
    25×1.5 37/0.22 30/0.25 0.3 15.8 562
    48×1.5 37/0.22 30/0.25 0.3 20.7 988
    2×2×1.5 37/0.22 30/0.25 0.3 9.2 153
    3×2×1.5 37/0.22 30/0.25 0.3 9.8 205
    7×2×1.5 37/0.22 30/0.25 0.3 12.6 330
    2×2.5 37/0.29 50/0.25 0.3 7.0 105
    3×2.5 37/0.29 50/0.25 0.3 7.6 130
    4×2.5 37/0.29 50/0.25 0.3 8.4 170
    5×2.5 37/0.29 50/0.25 0.3 9.4 190
    6×2.5 37/0.29 50/0.25 0.3 10.3 225
    7×2.5 37/0.29 50/0.25 0.3 11.4 270
    8×2.5 37/0.29 50/0.25 0.3 12.6 343
    10×2.5 37/0.29 50/0.25 0.3 13.2 370
    12×2.5 37/0.29 50/0.25 0.3 13.6 420
    16×2.5 37/0.29 50/0.25 0.3 15.6 560
    18×2.5 37/0.29 50/0.25 0.3 16.6 620
    25×2.5 37/0.29 50/0.25 0.3 19.3 834
    27×2.5 37/0.29 50/0.25 0.3 20.5 870
    48×2.5 37/0.29 50/0.25 0.3 25.6 1560
