    LSZH Flame Retardant CAT6 Data Cables

    FTX-CAT6U/UTP4P23LH

    FTX-CAT6F/UTP4P23LH

    FTX-CAT6SF/UTP4P23LH

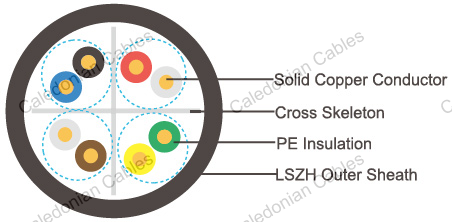

    • FTX-CAT6 U/UTP
    • U/UTP CAT6
    • F/UTP CAT6
    • SF/UTP CAT6

    APPLICATION

    Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

    STANDARDS

    ISO/IEC 11801 , EN 50173 , ANSI/TIA/EIA 568

    FIRE PERFORMANCE

    Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2

    CABLE CONSTRUCTION

    Conductors : 23AWG solid bare copper.

    Insulation : PE.

    Twinning : Two coloured insulated conductors twisted together to form a pair.

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

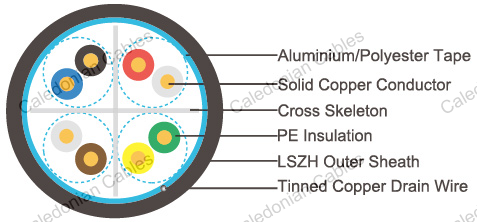

    Cat6 F/UTP : These cables have collective shielding of Aluminium/polyester tape with drain wire.

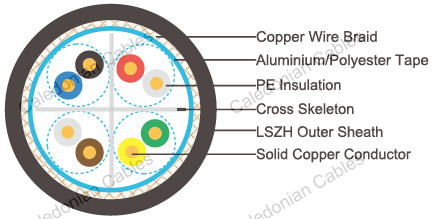

    Cat6 SF/UTP : These cables have double collective shielding of Aluminium/polyester tape & copper wire braid with drain wire.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range : -30°C - +75°C

    Minimum bending radius during installation (mobile state) : 8 x Overall Diameter

    Minimum bending radius during operation (fixed state) : 4 x Overall Diameter

    ELECTRICAL PROPERTIES

    AWG   23
    Nominal Conductor Diameter mm 0.56/0.57/0.58
    Maximum DC Resistance@20°C Ω/100m 9.38
    Maximum DCR Unbalance % 3
    Maximum Mutual Capacitance pF/m 5.8
    Maximum Capacitance Unbalance pF/100m 30
    Characteristic Impedance@1-100MHz Ω 100±15
    Maximum Propagation Delay Skew ns/100m 18

    TRANSMISSION PROPERTIES

    FREQ Attenuation NEXT PSNEXT ELFEXT PSELFEXT RL
    MHz dB/100m dB dB dB/100m dB/100m dB
    0.772 1.8 76.0 74. 70.0 67.0
    1 2.0 74.3 72.3 67.8 64.8 20.0
    4 3.8 65.3 63.3 55.7 52.7 23.0
    8 5.3 60.8 58.8 49.7 46.7 24.5
    10 6.0 59.3 57.3 47.8 44.8 25.0
    16 7.6 56.3 54.3 43.7 40.7 25.0
    20 8.5 54.8 52.8 41.7 38.7 25.0
    25 9.5 53.3 51.3 39.8 36.8 24.3
    31.25 10.7 51.9 49.9 37.9 34.9 23.6
    62.5 15.4 47.4 45.4 31.8 28.8 21.5
    100 19.8 44.3 42.3 27.8 24.8 20.1
    155 25.2 41.5 39.5 23.9 20.9 18.8
    200 29.0 39.8 37.8 21.7 18.7 18.0
    250 32.8 38.3 36.3 19.8 16.8 17.3

    CONSTRUCTION PARAMETERS

    Cable Code Conductor Diameter Diameter Over Insulation Pairs Screen Aprrox. Overall Diameter
    mm mm mm
    FTX-CAT6U/UTP4P23LH 0.56/0.57 1.02 4 Nil 6.0
    FTX-CAT6F/UTP4P23LH 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.3
    FTX-CAT6SF/UTP4P23LH 0.57/0.58 1.02 4 Overall Aluminum Tape Screen& Copper Wire Braid 6.6
