    600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to BS 6346 (2-5 Cores)

    FGD400 1VVMV-R (CU/PVC/PVC/SWA/PVC 600/1000V Class 2)

    i

    Application

    The cables are intended for use in fixed installations in industrial areas, buildings and similar applications.

    Standards

    Basic design to BS 6346

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) BS EN 50265-2-1

    Voltage Rating

    600/1000V

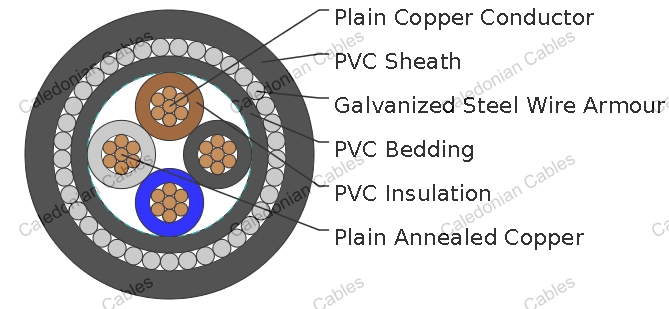

    Cable Construction

    Conductor Annealed copper wire, stranded according to BS 6360 class 2.
    Insulation PVC TI 1 according to BS 7655-3.1.
    Bedding Extruded PVC or taped bedding comprising two or more layers of PVC tape or other synthetic tape (for cables having a nominal conductor area of 16mm² and above).
    Armouring Galvanized steel wire
    Outer Sheath PVC TM 1 according to BS 7655-4.1.
    Outer Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    Colour Code

    Insulation Colour Two-core: Brown, blue
    Three-core: Brown, black, grey
    Four-core: Blue, brown, black, grey
    Five-core: Green-and-yellow, blue, brown, black, grey
    Sheath Colour Black (other colours upon request)

    Physical AND THERMAL PROPERTIES

    Maximum temperature range during operation (PVC) 70°C
    Maximum short circuit temperature (5 Seconds) 160°C
    Minimum bending radius
    Circular copper conductors 6 x Overall Diameter
    Shaped copper conductors 8 x Overall Diameter

    Construction Parameters

    Conductor FGD400 1VVMV-R
    No. of Cores x Cross Section Class of Conductor Nominal Insulation Thickness Nominal Bedding Thickness Nominal Armour Wire Diameter Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    Extruded Bedding Taped Bedding
    No.xmm²   mm mm mm mm mm mm kg/km
    2 Cores
    2x1.5a 2 0.6 0.8 0.9 1.4 12.3 - 278
    2x2.5a 2 0.7 0.8 0.9 1.4 13.6 - 355
    2x4.0a 2 0.8 0.8 0.9 1.4 15.1 - 437
    2x6.0a 2 0.8 0.8 0.9 1.5 16.5 - 524
    2x10a 2 1.0 0.8 1.25 1.6 20.1 - 835
    2x16a 2 1.0 0.8 1.25 1.6 21.9 21.9 1045
    2x25b 2 1.2 1.0 1.6 1.7 23.0 22.6 1535
    2x25a 2 1.2 1.0 1.6 1.7 26.7 26.3 1608
    2x35b 2 1.2 1.0 1.6 1.8 24.8 24.4 1839
    2x35a 2 1.2 1.0 1.6 1.8 29.2 28.8 1941
    2x50b 2 1.4 1.0 1.6 1.9 27.8 27.4 1364
    2x70b 2 1.4 1.0 1.6 1.9 30.4 30.0 2328
    2x95b 2 1.6 1.2 2.0 2.1 35.5 34.7 3759
    2x120b 2 1.6 1.2 2.0 2.2 38.0 37.2 3217
    2x150b 2 1.8 1.2 2.0 2.3 41.3 40.5 3732
    2x185b 2 2.0 1.4 2.5 2.4 46.4 45.2 6669
    2x240b 2 2.2 1.4 2.5 2.5 51.2 50.0 6432
    2x300b 2 2.4 1.6 2.5 2.7 56.4 54.8 7680
    2x400b 2 2.6 1.6 2.5 2.9 61.9 60.3 12535
    3 Cores
    3x1.5a 2 0.6 0.8 0.9 1.4 12.8 - 311
    3x2.5a 2 0.7 0.8 0.9 1.4 14.1 - 405
    3x4.0a 2 0.8 0.8 0.9 1.4 15.8 - 510
    3x6.0a 2 0.8 0.8 1.25 1.5 18.0 - 727
    3x10a 2 1.0 0.8 1.25 1.6 21.2 - 998
    3x16a 2 1.0 0.8 1.25 1.6 23.1 23.1 1291
    3x25b 2 1.2 1.0 1.6 1.7 25.0 24.6 1879
    3x25a 2 1.2 1.0 1.6 1.7 28.2 27.8 1989
    3x35b 2 1.2 1.0 1.6 1.8 27.1 26.7 2286
    3x35a 2 1.2 1.0 1.6 1.8 30.8 30.4 2439
    3x50b 2 1.4 1.0 1.6 1.9 30.5 30.1 1638
    3x70b 2 1.4 1.2 2.0 2.0 35.0 34.2 3272
    3x95b 2 1.6 1.2 2.0 2.1 39.3 38.5 4789
    3x120b 2 1.6 1.2 2.0 2.2 42.2 41.4 4068
    3x150b 2 1.8 1.4 2.5 2.4 47.5 46.3 5231
    3x185b 2 2.0 1.4 2.5 2.5 51.9 50.7 8660
    3x240b 2 2.2 1.6 2.5 2.6 57.8 56.2 8395
    3x300b 2 2.4 1.6 2.5 2.8 63.2 61.6 10006
    3x400b 2 2.6 1.6 2.5 3.0 69.6 68.0 16856
    4 Cores
    4x1.5a 2 0.6 0.8 0.9 1.4 13.5 - 353
    4x2.5a 2 0.7 0.8 0.9 1.4 15.0 - 466
    4x4.0a 2 0.8 0.8 1.25 1.5 17.8 - 708
    4x6.0a 2 0.8 0.8 1.25 1.5 19.2 - 850
    4x10a 2 1.0 0.8 1.25 1.6 22.8 - 1186
    4x16a 2 1.0 1.0 1.6 1.7 26.3 25.9 1751
    4x25b 2 1.2 1.0 1.6 1.8 27.8 27.4 2254
    4x25a 2 1.2 1.0 1.6 1.8 30.7 30.3 2401
    4x35b 2 1.2 1.0 1.6 1.9 30.3 29.9 2769
    4x35a 2 1.2 1.0 1.6 1.9 33.7 33.3 2972
    4x50b 2 1.4 1.2 2.0 2.0 35.4 34.6 2198
    4x70b 2 1.4 1.2 2.0 2.1 39.2 38.4 3961
    4x95b 2 1.6 1.2 2.0 2.2 44.3 43.5 5891
    4x120b 2 1.6 1.4 2.5 2.4 49.3 48.1 5437
    4x150b 2 1.8 1.4 2.5 2.5 53.6 52.4 6357
    4x185b 2 2.0 1.6 2.5 2.6 59.0 57.4 10827
    4x240b 2 2.2 1.6 2.5 2.8 65.7 64.1 10363
    4x300b 2 2.4 1.6 2.5 3.0 72.0 70.4 12420
    4x400b 2 2.6 1.8 3.15 3.3 81.3 79.3 22477
    5 Cores
    5x1.5a 2 0.6 0.8 0.9 1.4 14.3 - 396
    5x2.5a 2 0.7 0.8 0.9 1.5 16.3 - 538
    5x4.0a 2 0.8 0.8 1.25 1.5 19.0 - 807
    5x6.0a 2 0.8 0.8 1.25 1.6 20.9 - 987
    5x10a 2 1.0 1.0 1.6 1.7 25.8 - 1581
    5x16a 2 1.0 1.0 1.6 1.7 28.4 28.0 2039
    5x25a 2 1.2 1.0 1.6 1.9 33.5 33.1 2840
    5x35a 2 1.2 1.0 1.6 1.9 36.6 36.2 3518
    5x50a 2 1.4 1.2 2.0 2.1 43.0 42.2 4881
    5x70a 2 1.4 1.2 2.0 2.2 48.1 47.3 6325

    a Circular or compacted circular stranded conductor (class 2)
    b Shaped stranded conductor (class 2)

    ELECTRICAL PROPERTIES

    Conductor Operating Temperature 70°C
    Ambient Temperature 30°C

    Current-Carrying Capacities (Amp) according to BS 7671: 2008 table 4D4A

    Conductor crosssectional
    area
    Reference Method C (clipped direct) Reference Method E (in free air
    or on a perforated cable tray,
    horizontal or vertical)
    Reference Method D (direct in in
    groud or in ducting in groud. in or
    around buildings)
    1 two-core cable*,
    single-phase a.c.
    or d.c.
    1 three-or four
    core cable*,
    three-phase a.c.
    1 two-core
    cable*, singlephase
    a.c. or
    d.c.
    1 three-or four
    core cable*,
    three-phase a.c.
    1 two-core cable*,
    single-phase a.c.
    or d.c.
    1 three-or four
    core cable*, threephase
    a.c.
    1 2 3 4 5 6 7
    mm2 A A A A A A
    1.5 21 18 22 19 22 18
    2.5 28 25 31 26 29 24
    4.0 38 33 41 35 37 30
    6.0 49 42 53 45 46 38
    10 67 58 72 62 60 50
    16 89 77 97 83 78 64
    25 118 102 128 110 99 82
    35 145 125 157 135 119 98
    50 175 151 190 163 140 116
    70 222 192 241 207 173 143
    95 269 231 291 251 204 169
    120 310 267 336 290 231 192
    150 356 306 386 332 261 217
    185 405 348 439 378 292 243
    240 476 409 516 445 336 280
    300 547 469 592 510 379 316
    400 621 540 683 590 - -

    Voltage Drop (Per Amp Per Meter) according to BS 7671: 2008 table 4D4B

    Nominal Cross Section  Area Two-core cables d.c. Two-core cable, single-phase a.c. Three- or four-core cable, three-phase a.c.
    1 2 3 4
    mm2 mV/A/m mV/A/m mV/A/m
    1.5 29 29 25
    2.5 18 18 15
    4.0 11 11 9.5
    6.0 7.3 7.3 6.4
    10 4.4 4.4 3.8
    16 2.8 2.8 2.4
        r x z r x z
    25 1.75 1.75 0.170 1.75 1.50 0.145 1.50
    35 1.25 1.25 0.165 1.25 1.10 0.145 1.10
    50 0.93 0.93 0.165 0.94 0.80 0.140 0.81
    70 0.63 0.63 0.160 0.65 0.55 0.140 0.57
    95 0.46 0.47 0.155 0.50 0.41 0.135 0.43
    120 0.36 0.38 0.155 0.41 0.33 0.135 0.35
    150 0.29 0.30 0.155 0.34 0.26 0.130 0.29
    185 0.23 0.25 0.150 0.29 0.21 0.130 0.25
    240 0.180 0.190 0.150 0.24 0.165 0.130 0.21
    300 0.145 0.155 0.145 0.21 0.135 0.130 0.185
    400 0.105 0.115 0.145 0.185 0.100 0.125 0.160

    Note: *Spacings larger than one cable diameter will result in a large voltage drop.
    r = conductor resistance at operating temperature
    x = reactance
    z = impedance
