    Flame Retardant CAT5E Data Cables

    FGD-CAT5EU/UTP4P24

    FGD-CAT5EF/UTP4P24

    FGD-CAT5ESF/UTP4P24

    i
    • Flame Retardant CAT5E Data Cable

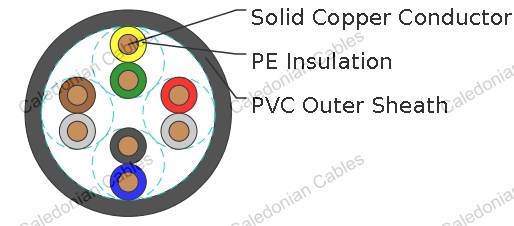

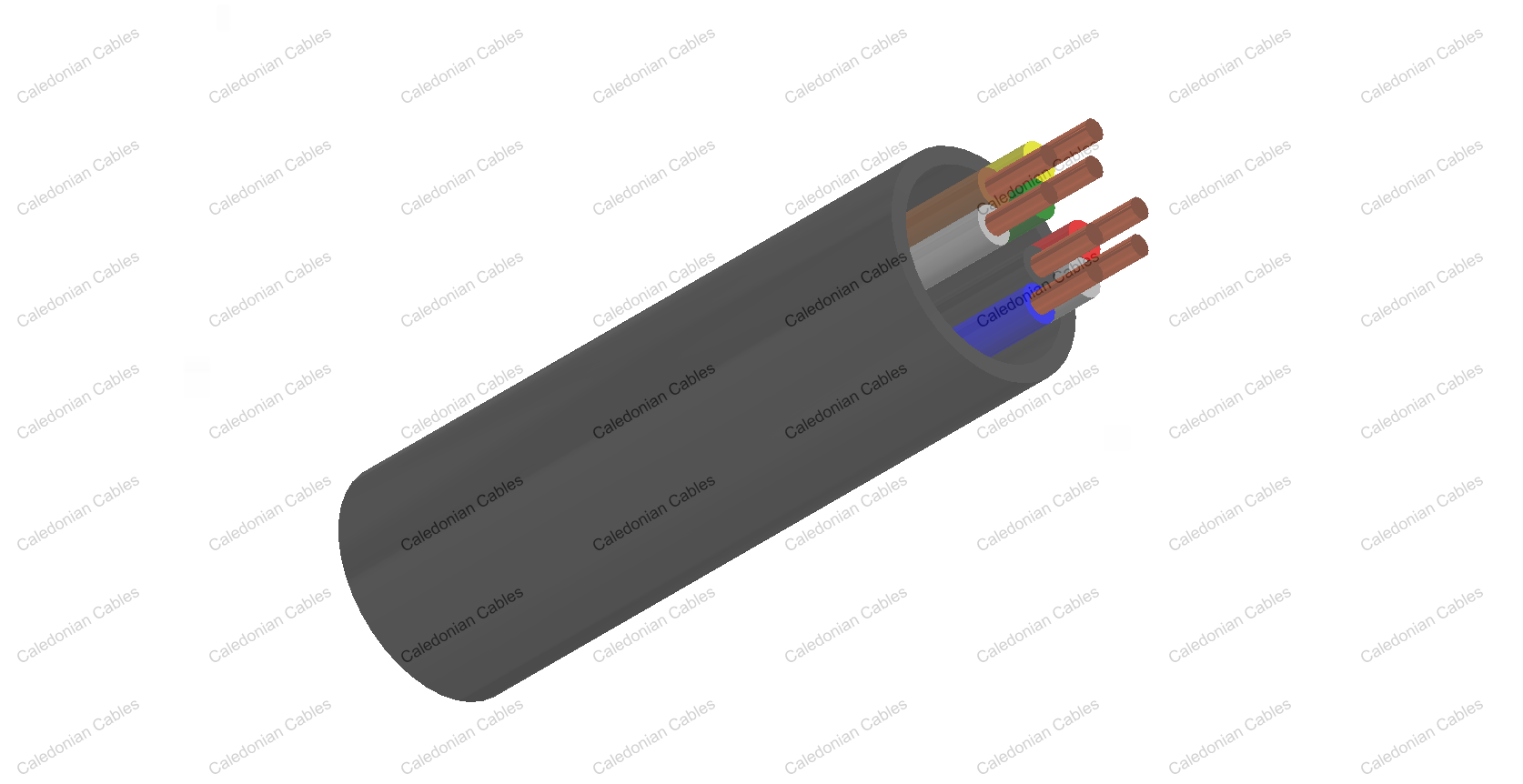

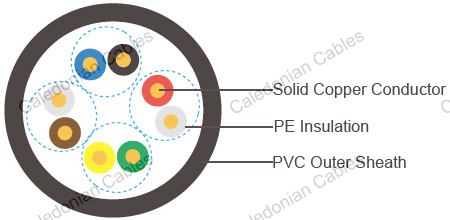

    • U/UTP CAT5E
    • F/UTP CAT5E
    • SF/UTP CAT5E

    APPLICATION

    Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

    STANDARDS

    ISO/IEC 11801 , EN 50173 , ANSI/TIA/EIA 568

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) :BS EN 60332-1-2

    CABLE CONSTRUCTION

    Conductor : 24AWG solid bare copper.

    Insulation : PE.

    Twinning : Two coloured insulated conductors twisted together to form a pair.

    Outer Sheath : Thermoplastic PVC compound.

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

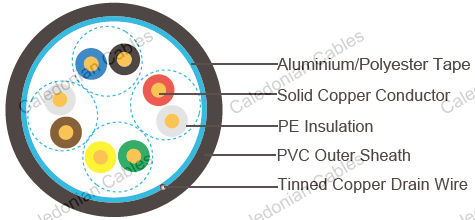

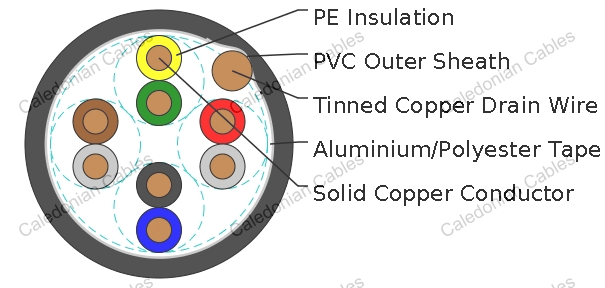

    Cat5EF/UTP : These cables have collective shielding of Aluminium/polyester tape with drain wire.

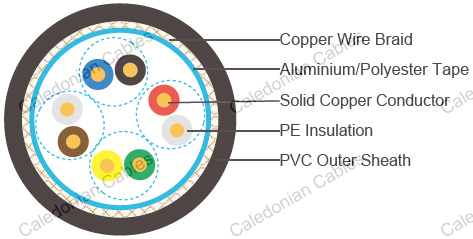

    Cat5ESF/UTP : These cables have double collective shielding of Aluminium/polyester tape & copper wire braid.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range : -30°C - +75°C

    Minimum bending radius during installation (mobile state) : 8 x Overall Diameter

    Minimum bending radius during operation (fixed state) : 4 x Overall Diameter

    ELECTRICAL PROPERTIES

    AWG   24
    Nominal Conductor Diameter mm 0.50/0.51/0.53
    Maximum DC Resistance@20°C Ω/100m 9.38
    Maximum DCR Unbalance % 5
    Maximum Mutual Capacitance pF/m 55.8
    Maximum Capacitance Unbalance pF/100m 330
    Characteristic Impedance@1-100MHz Ω 100±15
    Maximum Propagation Delay Skew ns/100m 45

    TRANSMISSION PROPERTIES

    FREQ Attenuation NEXT PSNEXT ELFEXT PSELFEXT RL
    MHz dB/100m dB dB dB/100m dB/100m dB
    0.772 1.8 67.0 64.0 66.0 63.0
    1 2.0 65.3 62.3 63.8 60.8 20.2
    4 4.1 56.3 53.3 51.7 48.7 23.0
    8 5.8 51.8 48.8 45.7 42.7 24.5
    10 6.5 50.3 47.3 43.8 40.8 25.0
    16 8.2 47.3 44.3 39.7 36.7 25.0
    20 9.3 45.8 42.8 37.7 34.7 25.0
    25 10.4 44.3 41.3 35.8 32.8 24.3
    31.25 11.7 42.9 39.9 33.9 30.9 23.6
    62.5 17.0 38.4 35.4 27.8 24.8 21.5
    100 22.0 35.3 32.3 23.8 20.8 20.1

    CONSTRUCTION PARAMETERS

    Cable Code Conductor Diameter Diameter Over Insulation Pairs Screen Approx. Overall Diameter
      mm mm     mm
    FGD-CAT5EU/UTP4P24 0.50/0.51 0.91 4 Nil 5.1
    FGD-CAT5EF/UTP4P24 0.53 1.00 4 Overall Aluminum Tape Screen 6.3
    FGD-CAT5ESF/UTP4P24 0.53 1.00 4 Overall Aluminum Tape Screen & Copper Wire Braid 6.6
