    Fire Resistant CAT5E CWB/SWB/SWA Armoured Data Cables

    FFX-CAT5EU/UTP4P24FR CWB/SWB/SWA

    FFX-CAT5EF/UTP4P24FR CWB/SWB/SWA

    FFX-CAT5ESF/UTP4P24FR CWB/SWB/SWA

    i
    • CAT5E CWB/SWB/SWA Armoured Data Cable

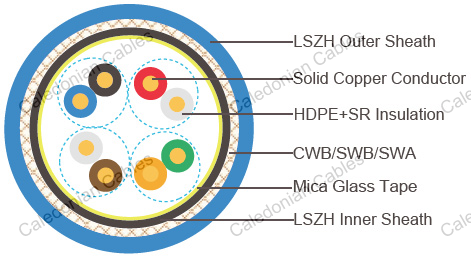

    • U/UTP CAT5E
    • F/UTP CAT5E
    • SF/UTP CAT5E

    APPLICATION

    Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

    STANDARDS

    ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568

    FIRE PERFORMANCE

    Circuit Integrity IEC 60331-23; BS 6387 CWZ (Optional)
    Flame Retardance (Single Vertical Wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2

    CABLE CONSTRUCTION

    Conductor 24AWG solid bare copper.
    Insulation HDPE+SR.
    Twinning Two coloured insulated conductors twisted together to form a pair.
    Overall Fire Barrier Mica glass tape.
    Inner Sheath Thermoplastic LSZH compound.
    Armouring: CWB: Copper Wire Braid
    SWB: Steel Wire Braid
    SWA: Steel Wire Armour
    Outer Sheath Halogen-free flame retardant thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
    Outer Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design.
    LSPVC can also be provided upon request.

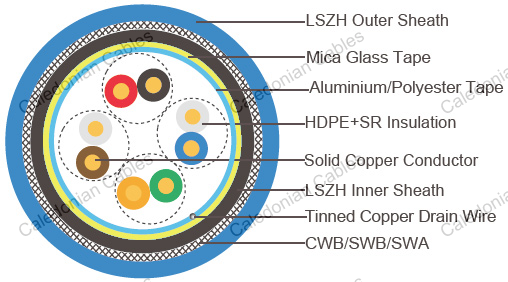

    Cat5EF/UTP These cables have collective shielding of Aluminium/polyester tape with drain wire.

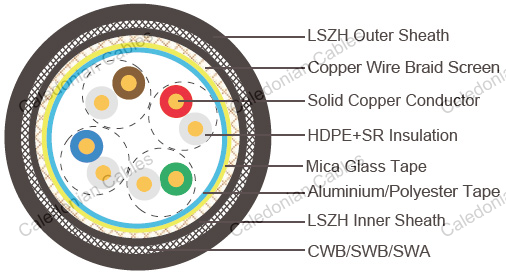

    Cat5ESF/UTP These cables have double collective shielding of Aluminium/polyester tape & copper wire braid.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range -30°C - +75°C
    Minimum bending radius during installation (mobile state) 8 x Overall Diameter
    Minimum bending radius during operation (fixed state) 4 x Overall Diameter

    ELECTRICAL PROPERTIES

    AWG   24
    Nominal Conductor Diameter mm 0.50/0.53
    Maximum DC Resistance@20°C Ω/100m 9.38
    Maximum DCR Unbalance % 5
    Maximum Mutual Capacitance pf/m 55.8
    Maximum Capacitance Unbalance pf/100m 330
    Characteristic Impedance@1-100MHz Ω 100±15
    Maximum Propagation Delay Skew ns/100m 45

    TRANSMISSION PROPERTIES

    FREQ Maximum Attenuation Minimum NEXT Minimum PSNEXT Minimum ELFEXT Minimum PSELFEXT Minimum RL
    MHz dB/100m dB dB dB/100m dB/100m dB
    0.772 1.8 67.0 64.0 66.0 63.0
    1 2.0 65.3 62.3 63.8 60.8 20.0
    4 4.1 56.3 53.3 51.7 48.7 23.0
    8 5.8 51.8 48.8 45.7 42.7 24.5
    10 6.5 50.3 47.3 43.8 40.8 25.0
    16 8.2 47.3 44.3 39.7 36.7 25.0
    20 9.3 45.8 42.8 37.7 34.7 25.0
    25 10.4 44.3 41.3 35.8 32.8 24.3
    31.25 11.7 42.9 39.9 33.9 30.9 23.6
    62.5 17.0 38.4 35.4 27.8 24.8 21.5
    100 22.0 35.3 32.3 23.8 20.8 20.1

    CONSTRUCTION PARAMETERS

    Cable Code Construction No. of Elements×No. of Cores in Element ×Conductor Diameter Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Outer Sheath Thickness Approx. Overall Diameter Nominal Weight
      mm mm mm mm mm kg/km
    FFX-CAT5EU/UTP4P24FR CWB 4×2×0.5 0.65 0.6 1.0 10.68 121
    FFX-CAT5EU/UTP4P24FR SWB 4×2×0.5 0.65 0.6 1.0 10.68 116
    FFX-CAT5EU/UTP4P24FR SWA 4×2×0.5 0.65 0.6 1.0 11.68 189
    FFX-CAT5EF/UTP4P24FR CWB 4×2×0.53 0.65 0.6 1.0 11.28 140
    FFX-CAT5EF/UTP4P24FR SWB 4×2×0.53 0.65 0.6 1.0 11.28 136
    FFX-CAT5EF/UTP4P24FR SWA 4×2×0.53 0.65 0.6 1.0 12.28 216
    FFX-CAT5ESF/UTP4P24FR CWB 4×2×0.53 0.65 0.6 1.0 11.76 147
    FFX-CA T5ESF/UTP4P24FR SWB 4×2×0.53 0.65 0.6 1.0 11.76 143
    FFX-CAT5ESF/UTP4P24FR SWA 4×2×0.53 0.65 0.6 1.0 12.76 240
