    Category 6 Cables

    Applications

    10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T

    Standards

    • ISO / IEC 11801
    • EN50173
    • TIA / EIA 568-B

    Product Construction Matrix

      U/UTP F/UTP U/FTP SF/UTP S/FTP
    Conductor 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper
    Insulation PE PE PE PE PE
    Screen Nil Overall Aluminum Tape Screen Individual Aluminum Tape Screen Overall Aluminum Tape Screen & Copper Wire Braid Individual Aluminum Tape Screen & Overall Copper Wire Braid
    Drain Wire Nil 1/0.5 mm 1/0.5 mm Nil Nil
    Jacket PE/PVC/LSF/LSZH/LSFROH PE/PVC/LSF/LSZH PE/PVC/LSF/LSZH/LSFROH

    Remark :

    PE - Polyethylene

    PVC - Polyvinyl Chloride

    LSF - Low Smoke & Fume

    LSZH - Low Smoke Zero Halogen

    LSFROH - Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C)

    PVC can be classified as CMX, CM, CMR and CMP.

    Working Frequency

    1 - 250 MHz

    Cat6 U/UTP Cat6 F/UTP Cat6 U/FTP
    Cat6 U/UTP Cat6 F/UTP Cat6 U/FTP

    Technical Parameters

    Characteristic Impedance 100±15Ω (1-250MHz)
    Nominal Velocity of Propagation (NVP) CMX, CM, CMR, LSZH 69%; CMP 72%
    Maximum Mutual Capacitance 5.6nF/100m
    Maximum Capacitance Unbalance 330pF/100m
    Maximum DC Resistance 7.5Ω/100m
    Maximum Resistance Unbalance 3%
    Maximum Propagation Delay Skew 30ns/100m (1-125MHz)
    Maximum Propagation Delay 536ns/100m@100MHz
    Minimum Bending Radius 10 x Overall Diameter
    Maximum Pulling Load 80N
    Working Temperature -20℃ ~ +60℃
    Storage Temperature -5℃ ~ +50℃
    Flame Retardancy UL 1581 (CM Jacket)
    UL 1666 (CMR Jacket)
    UL 910 (CMP Jacket)
    IEC 60332-1 (FRPVC & LSZH Jacket)
    IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

    Product Certification

    E222756

    Product Categories

    Construction Conductor Diameter Diameter Over Insulation Pairs Screen Overall Diameter Jacket
      mm mm     mm

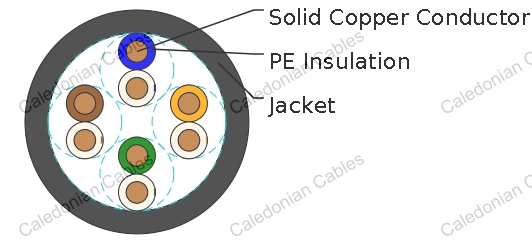

    U/UTP 0.57/0.58 1.02 4 Nil 6.0 PVC/LSZH
    U/UTP 0.57/0.58 1.02 4 Nil 6.5 LSFROH
    U/UTP 0.57/0.58 1.02 4 Nil 6.2 PE

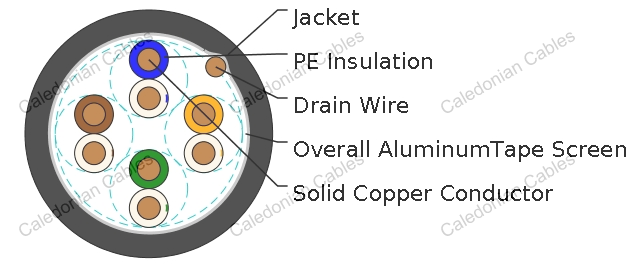

    F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.3 PVC/LSZH
    F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.5 PE

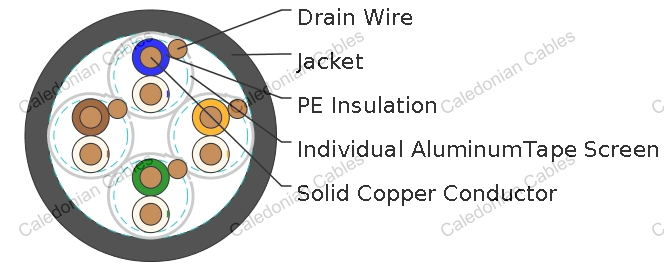

    U/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen 7.5 PVC/LSZH
    SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 6.6 PVC/LSZH
    SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 7.1 LSFROH

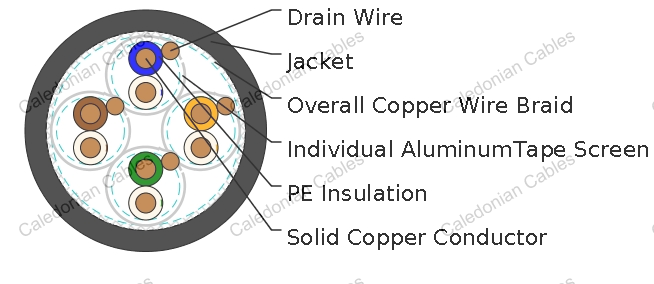

    S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.0 PVC/LSZH
    S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.4 LSFROH

    Product Highlights

    • Provide excellent bandwidth beyond 250 MHz.
    • Support 10 Gigabit Ethernet application.
    • Meet the strict flame retardancy and environmental requirements in Europe and US.
    • Different jacket materials available for choice.
    • Guaranteed ACR Value > 0dB @ 250MHz.
    • Special purpose cables can be offered according to customer request.
    • Different jacket color options available for choice.

    Transmission Properties

    FREQ (MHz) NEXT (dB/100m) (Minimum/ Typical/ Standard) Value IL (dB/100m) RL (dB/100m) (Minimum/ Typical/ Standard) Value ACR (dB/100m) (Minimum/ Typical/ Standard) Value ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSACR (dB/100m) (Minimum/ Typical/ Standard) Value PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value
    1 77.3/87.0/74.3 2.0 20.0/21.5/20.0 75.2/85.0/72.2 68.8/80.0/67.8 75.3/85.0/72.3 73.2/83.0/70.2 65.8/70.0/64.8
    4 68.3/77.0/65.3 3.8 23.0/24.7/23.0 64.4/73.0/61.4 56.8/66.0/55.8 66.3/74.0/63.3 62.5/71.0/59.5 53.8/63.0/52.8
    8 63.8/72.0/60.8 5.3 24.5/25.5/24.5 58.4/67.0/55.4 50.7/61.0/49.7 61.8/70.0/58.8 56.5/65.0/53.5 47.7/58.0/46.7
    10 62.3/70.0/59.3 6.0 25.0/28.0/25.0 56.3/64.0/53.3 48.8/57.0/47.8 60.3/68.0/57.3 54.3/62.0/51.3 45.8/54.0/44.8
    16 59.2/66.0/56.2 7.6 25.0/28.0/25.0 51.6/59.0/48.6 44.7/52.0/43.7 57.2/64.0/54.2 49.6/57.0/46.6 41.7/49.0/40.7
    20 57.8/65.0/54.8 8.5 25.0/28.0/25.0 49.3/57.0/46.3 42.8/50.0/41.8 55.8/63.0/52.8 47.3/55.0/44.3 39.8/47.0/38.8
    25 56.3/63.0/53.3 9.5 24.3/27.0/24.3 46.8/5 4.0/43.8 40.8/47.0/39.8 54.3/61.0/51.3 44.8/52.0/41.8 37.8/44.0/36.8
    31.25 54.9/61.0/51.9 10.7 23.6/26.5/23.6 44.1/51.0/41.1 38.9/45.0/37.9 52.9/59.0/49.9 42.1/49.0/39.1 35.9/42.0/34.9
    62.5 50.4/57.0/47.4 15.4 21.5/24.6/21.5 34.9/42.0/31.9 32.9/38.0/31.9 48.4/55.0/45.4 32.9/40.0/29.9 29.9/35.0/28.9
    100 47.3/53.0/44.3 19.8 20.1/23.7/20.1 27.4/33.0/24.4 28.8/34.0/27.8 45.3/51.0/42.3 25.4/31.0/22.4 25.8/31.0/24.8
    200 42.8/48.0/39.8 29.0 18.0/22.2/18.0 13.6/21.0/10.6 22.8/27.0/21.8 40.8/46.0/37.8 11.6/19.0/8.6 19.8/24.0/18.8
    250 41.3/46.0/38.3 32.8 17.3/21.6/17.3 8.3/14.0/5.3 20.8/24.0/19.8 39.3/44.0/36.3 6.3/12.0/3.3 17.8/21.0/16.8
    300 37.1/45.0/37.1 36.4 16.8/20.7/16.8 0.5/11.0/0.5 18.3/23.0/18.3 35.1/43.0/35.1 -1.5/9.0/-1.5 15.3/20.0/15.3
    350 36.1/44.0/36.1 39.8 16.3/20.3/16.3 -3.8/6.6/-3.8 16.9/21.0/16.9 34.1/42.0/34.1 -5.8/4.6/-5.8 13.9/18.0/13.9
    400 35.3/43.0/35.3 43.0 15.9/16.8/15.9 -7.9/2.6/-7.9 15.8/20.0/15.8 33.3/41.0/33.3 -9.9/0.6/-9.9 12.8/17.0/12.8
    450 34.5/42.0/34.5 46.3 15.5/16.5/15.5 -10.5/-1.1/-10.5 14.7/18.0/14.7 32.5/40.0/32.5 -12.5/-3.1/-12.5 11.7/15.0/11.7
    500 33.8/41.0/33.8 48.9 15.2/16.1/15.2 -15.3/-6.2/-15.3 13.8/18.0/13.8 31.8/39.0/31.8 -17.3/-8.2/-17.3 10.8/15.0/10.8
    550 33.2/41.0/33.2 51.8 14.9/15.7/14.9 -18.6/-12.0/-18.6 12.9/17.0/12.9 31.2/39.0/31.2 -20.6/-14.0/-20.6 9.9/13.0/9.9
    600 32.4/33.0/32.4 54.5 14.7/15.0/14.7 -21.9/-21.0/-21.9 12.2/14.0/12.2 30.6/31.0/30.6 -23.9/-23.0/-23.9 9.2/11.0/9.2

    *Data for 250MHz above are for reference only
