    Category 5 Multipair Cables

    Applications

    10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM

    Standards

    • ISO/IEC 11801
    • ANSI/TIA/EIA-568-B

    Product Construction Matrix

        U/UTP F/UTP SF/UTP
    Conductor Material Solid Plain Copper Solid Plain Copper Solid Plain Copper
    Stranding( No./mm ) 1/0.5 1/0.5 1/0.5
    Gauge 24AWG 24AWG 24AWG
    Insulation Material PE PE PE
    Diameter 0.86 mm 0.86 mm 0.86 mm
    Screen Material Nil Overall Aluminum Tape Screen Overall Aluminum Tape Screen & Copper Wire Braid
    Drain Wire Material Nil 1/0.5 mm 1/0.5 mm
    Assembly No of Pairs 25/50/100 25/50/100 25/50/100
    Jacket Material PE/PVC/LSF/LSZH PE/PVC/LSF/LSZH PE/PVC/LSF/LSZH

    Remark :

    PE-Polyethylene

    PVC-Polyvinyl Chloride

    LSF-Low Smoke & Fume

    LSZH-Low Smoke Zero Halogen

    LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C)

    PVC can be classified as CMX, CM, CMR and CMP

    Working Frequency

    1 - 100 MHz


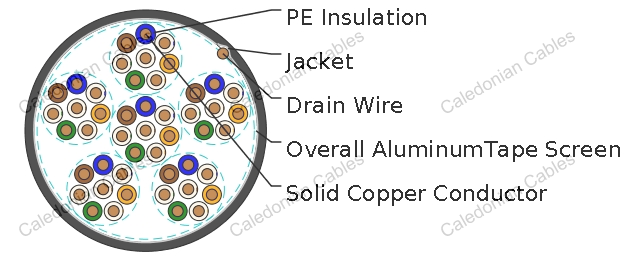

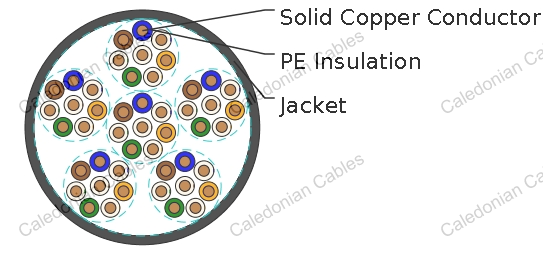

    Cat5 U/UTP Cat5 F/UTP Cat5 SF/UTP

    Technical Parameters

    Characteristic Impedance 100±15Ω
    Nominal Velocity of Propagation (NVP) 69%
    Maximum Mutual Capacitance 5.6 nF/100m
    Maximum Capacitance Unbalance 330 pF/100m
    Maximum DC Resistance 9.38Ω/100m
    Maximum Resistance Unbalance 5%
    Maximum Propagation Delay Skew 30 ns/100m
    Maximum Propagation Delay 536 ns/100m@100 MHz
    Minimum Bending Radius 10 x Overall Diameter
    Voltage Rating 60V rms
    Maximum Pulling Load 80N
    Working Temperature -20℃ ~ +60℃
    Storage Temperature -5℃ ~ +50℃
    Flame Retardancy UL 1581 (CM Jacket)
    UL 1666 (CMR Jacket)
    UL 910 (CMP Jacket)
    IEC 60332-1 (FRPVC & LSZH Jacket)
    IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

    Product Certification

    E222756

    Product Highlights

    • Provide excellent bandwidth beyond 100 MHz.
    • Designed for use in data and voice backbone application.
    • Meet the strict flame retardancy and environmental requirements in Europe and US.
    • Easily identifiable color code for ease of installation.

    Transmission Properties

    FREQ NEXT(dB/100m) IL SRL (dB/100m)
    (MHz) Minimum Value/Typical Value/Standard Value (dB/100m) Minimum Value/Typical Value/Standard Value
    1 64.0/71.0/62.0 2.0 24.5/26.0/23.0
    4 55.0/62.0/53.0 4.0 24.5/26.0/23.0
    8 49.5/57.0/48.0 5.7 24.5/26.0/23.0
    10 49.0/56.0/47.0 6.4 24.5/26.0/23.0
    16 44.9/52.0/44.0 8.2 24.5/26.0/23.0
    20 42.5/48.0/42.0 9.2 24.5/26.0/23.0
    25 42.0/48.0/41.0 10.3 24.5/26.0/23.0
    31.25 40.6/48.0/39.0 11.6 22.5/24.0/21.0
    62.5 36.1/43.0/35.0 16.9 19.5/22.0/18.0
    100 34.0/40.0/32.0 21.8 17.5/20.0/16.0
