    1xRG6 + 3x2.5 Power cable + 2x1x2x22AWG Data Pairs SWB LSZH Sheathed Composite Cable

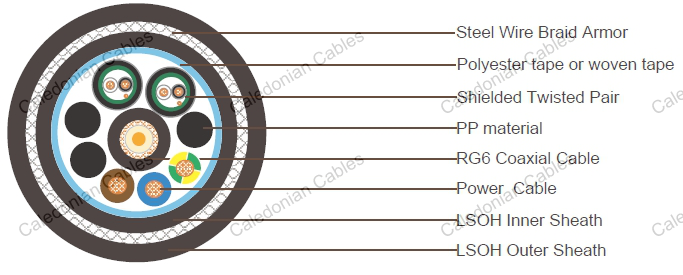

    Construction

    1X75OHM RG6 COAXIAL CABLE ( IN THE CENTER OF THE CABLE CORE)

    CONDUCTOR 1.02mm Solid bare copper
    INSULATION Polyethylene. Diameter 4.57mm.
    SHIELD 1 Al-Polyester Tape
    SHIELD 2 Braid of bare copper wire. Coverage:95%
    SHEATH LSZH sheath. Nominal outer diameter is 6.91mm.
    SHEATH COLOR Black

    2X1X2X22AWG SHIELDED TWISTED PAIR ( AROUND COAXIAL CABLE)

    CONDUCTOR 7/0.254mm Stranded tinned copper.
    INSULATION PVC material. Thickness 0.50mm.
    INSULATION COLOR White and black
    INDIVIDUAL SHIELD Aluminum polyester tape
    DRAIN WIRE 24 AWG stranded tinned copper
    SHEATH LSZH sheath. Thickness 0.5mm.
    SHEATH COLOR Black with white number code

    3X2.5MM² POWER CABLE ( AROUND COAXIAL CABLE)



    CONDUCTOR 2.5mm² Stranded tinned copper wire.
    INSULATION XLPE. Outer diameter 3.6mm
    INSULATION COLOR Blue, Brown and Green/Yellow

    Element Assembly

    FILLER PE or PP material
    WRAPPING TAPE Polyester tape or woven tape
    INNER SHEATH Black LSZH, thickness 0.75mm
    ARMOR Steel wire braid, dia. 0.2mm, coverage 95%
    OUTER SHEATH LSZH, thickness 1.5mm, nominal outer diameter 21.0mm. Approx.
    SHEATH COLOR Black
    CABLE WEIGHT 485kg/km

    Electrical and Physical Properties@20°C:

    COAXIAL CABLE

    Conductor Resistance @ 20°C : 22 ohm/km
    Impedance: 75±3Ohm (@1MHz)
    Max. Attenuation: 5.2dB/100m @50MHz

    POWER CABLE

    Conductor Resistance @ 20°C: 7.41Ohm/km
    Insulation Resistance: ≥5500 MOhmxkm Data Pairs
    Electrical Resistance: 49Ohm/km
    Insulation Resistance: ≥1000 MOhmxkm
