    1x RG59 + 4x2.5 Power Cable + 2x1x2x22AWG Data Pairs SWB LSZH Sheathed Composite Cable

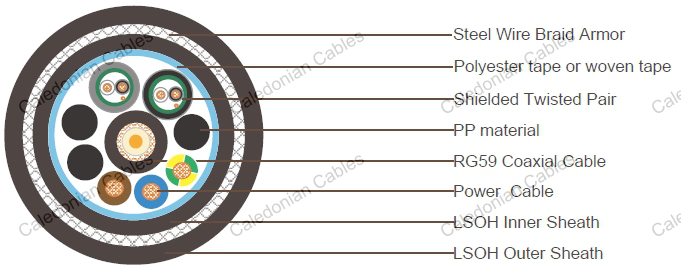

    Construction

    1x75Ohm RG59 Coaxial Cable( in the center of the cable core)

    CONDUCTOR 0.58 Solid copperweld (CCS).
    INSULATION Polyethylene. Thickness 1.56mm
    SHIELD Braid of bare copper wire. Coverage ≥ 92%
    SHEATH LSZH sheath, nominal outer diameter 6.2mm
    SHEATH COLOR Black

    2x1x2x24/7 AWG Shielded Twisted Pair ( around coaxial cable)

    CONDUCTOR 7/0.2mm Stranded tinned copper
    INSULATION PVC material. Thickness 0.47mm
    INSULATION COLOR Black and white
    SHIELD Aluminium polyester tape
    DRAIN WIRE 24 AWG stranded tinned copper drain wire
    SHEATH LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
    SHEATH COLOR Black and Grey

    3x3mm² Power Cable ( around coaxial cable)

    CONDUCTOR 12AWG (3mm² Stranded tinned copper wire
    INSULATION XLPE. Thickness 0.85mm. Outer diameter 3.65mm
    INSULTION COLOR Blue, Brown and Green/Yellow

    Element Assembly

    FILLER PP material (around coaxial cable)
    WRAPPING TAPE Polyester tape
    INNER SHEATH Black LSZH, thickness 0.8mm
    ARMOR Steel wire braid,coverage 95%
    OUTER SHEATH LSZH, thickness 1.5mm, norminal outer diameter 22.0mm
    SHEATH COLOR Black

    Electrical and Physical Properties @20°C:

    Coaxial Cable

    Impedance: 75±3Ohm (@1MHz)
    Max. Attenuation: 7.5dB/100m @50MHz

    Power Cable

    Electrical Resistance: 6.6Ohm/km
    Insulation Resistance: ≥5500 MOhmxkm Data Pairs
    Electrical Resistance: 90Ohm/km
    Insulation Resistance: ≥1000 MOhmxkm

    Element Assembly

    Min Bending Radius: 420mm
    Operating Temperature: -35°C/+80°C

    Fire Performance:

    Flame Propagation: IEC60332-1
    Low Smoke Capacity:IEC61034-1/2
    Halogen Free:IEC60754-1/2
