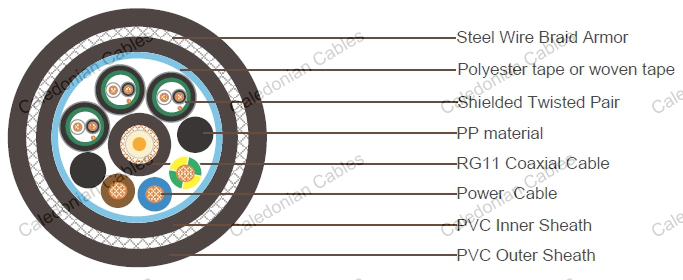

1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs SWB PVC Sheathed Composite Cable

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)

CONDUCTOR	1.63mm Solid bare copper
INSULATION	Polyethylene.Thickness 7.25mm.
SHIELD	Braidofbare copperwire.Coverage95%
SHEATH	PVCsheath. Nominalouterdiameteris10.3mm.
SHEATH COLOR	Black

3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)

3x2.5mm² Power Cable ( around coaxial cable)

CONDUCTOR	2.5mm² Strandedtinnedcopper wire.
INSULATION	XLPE.Outerdiameter3.41mm
INSULATION COLOR	Blue,Brown and Green/Yellow

FILLER	PPmaterial(aroundcoaxialcable)
WRAPPINGTAPE	Polyestertape orwoven tape.
INNER SHEATH	BlackPVC,thickness1.0mm
ARMOR	Steelwire braid, dia. 0.2mm,coverage85%
OUTER SHEATH	PVC,thickness1.8mm,nominalouterdiameter28.3mm
SHEATH COLOR	Black
CABLE WEIGHT	550kg/km

Electrical and Physical Properties @20°C:

Impedance: 75±3Ohm (@1MHz)
Max.Attenuation: 3.3dB/100m@50MHz

Electrical Resistance: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm

Electrical Resistance: 49Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
