    1x2x2.5mm² Power Cable +9x1x2x1.0mm² Control Cable SWA PVC Sheathed Composite Cable

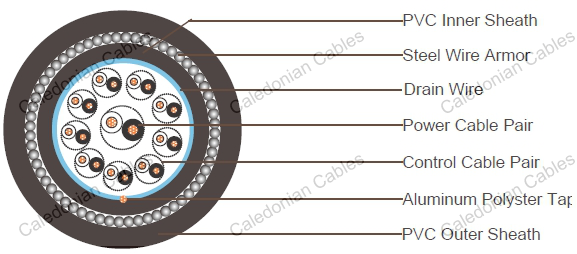

    Construction

    1x2x2.5mm² Power Cable

    CONDUCTOR 2.5mm² annealed copper
    INSULATION XLPE material.
    INSULATION COLOR Black and white

    9x1x2x1.0mm² Control Cable

    CONDUCTOR 1.0mm² annealed copper
    INSULATION PE material.
    INSULATION COLOR Black and white with pair number
    OVERALL SCREEN Aluminium polyester tape with 24 AWG stranded tinned copper drain wire

    Element Assembly

    SHIELD Aluminium polyester tape
    DRAIN WIRE 24 AWG stranded tinned copper drain wire
    BEDDING PVC
    ARMOUR 1.6mm Steel wire armor.
    SHEATH PVC sheath. Nominal outer diameter 31.0mm. Thickness 2.0mm
    SHEATH COLOR Black
    CABLE WEIGHT 1415 kg/km

    Electrical and Physical Properties @20°C:

    Power Cable

    Max. Conductor Resistance: 7.41Ohm/km at 20ºC

    Control Cable

    Max. Conductor Resistance: 18.5Ohm/km at 20ºC
    Operating Temperature: -20°C/+90°C
    Voltage Rating: 600/1000V
