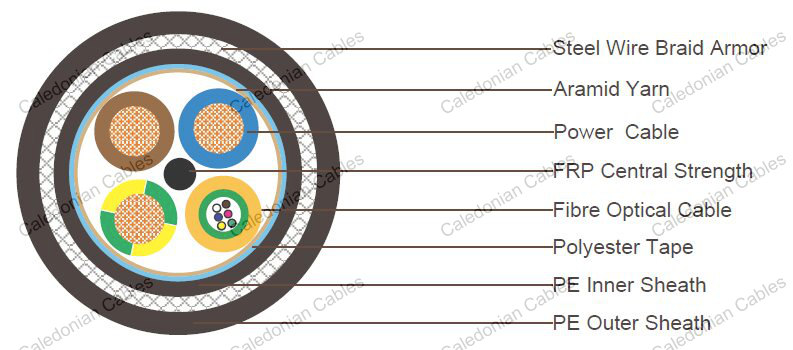

    3x2.5 Power Cable + 6C Fiber Optic Cable SWB Armored Composite Cable

    Construction

    3x2.5mm² Power Cables

    CONDUCTOR 7/0.67mm Stranded bare copper wire
    INSULATION XLPE compound. Nominal outer diameter 3.41mm
    INSULATION COLOR Blue, Brown and Green/Yellow

    6 Core Central Loose Tube Fiber Optic Cable

    OPTICAL FIBER Single-mode cabled fibers meet or exceed the requirements of ITUTG.652.D specification
    LOOSE TUBE PBT tubes1.80±0.1mm outer diameter, contains 6 fibers, The tubes are filled with a thixotropic gel to prevent the ingress of water
    FIBER GLASS YARN Fiber Glass Yarn is laid over the tube core to serve as peripheral strength member.
    SHEATH PE outer Sheathis extruded over the glass yarn, Nominal outer diameter is about 3.40mm
    SHEATH COLOR Black

    Element Assembly

    CENTRAL STRENGTH MEMBER 1.5mm FRP central strength member with PE/PVC coating if necessary
    STRENGTH MEMBER Aramid yarn helically is applied over cable core.
    INNER JACKET BlackPE, thickness 1.00mm
    ARMOR Steel wire braid, coverage 80%, 0.25mm steel tape armor is optional
    SHEATH PE, thickness 1.80mm, nominal outer diameter 16.00±1.0mm
    SHEATH COLOR Black

    Optical CharacteristicsSingle-mode fibers meet or exceed the requirements of ITUT G.652.D, as listed in below:

      PARAMETER   STANDARD SINGLE MODE FIBER PERITU-T G.652D NON-ZERODISPERSION SHIFTED FIBER PER ITU-T G.655 NON-ZERODISPERSION SHIFTED FIBER PER ITU-T G.656   UNITS
    FIBER CODE 9 8 7
    Attenuation, Loose Tube Cables @1310nm ≤0.35 N/A N/A dB/km
    @1550nm ≤0.22 ≤0.22 ≤0.22 dB/km
    @1625nm ≤0.25 ≤0.26 ≤0.26 dB/km
    Attenuation,Tight Buffer or Semi-Tight Cables @1310nm ≤0.38 N/A dB/km
    @1550nm ≤0.28 N/A dB/km
    Chromatic Dispersion between 1260 and 1360nm (O Band)  ≤3.5  N/A  N/A  ps/(nm*km)
    between 1460 and 1530nm (S Band)  N/A  N/A  2.0-7.0  ps/(nm*km)
    between 1530 and 1565nm (C Band)  ≤18  1.0-10.0  7.0-10.0  ps/(nm*km)
    between 1565 and 1625nm (L Band)  ≤22  7.0-12.0  10.0-14.0  ps/(nm*km)
    Zero Dispersion Wavelength 1310±11 1530-1560 1460-1565 nm
    Zero Dispersion Slope 0.093 0.093 0.093 ps/(nm2.km)
    Point Discontinuity at 1300nm&1550nm 0.1 0.1 0.1 dB
    Mode FieldDiameter @1300nm 9.3±0.5 N/A N/A um
      @1550nm 10.4±0.8 8.5±0.6 9.0±0.5 um
    CABLE CUT-OFF WAVELENGTH ≤1260 ≤1450 ≤1450 nm
    PMD (INDIVIDUAL FIBER) ≤0.2 ≤0.2 ≤0.2 ps/km1/2
    CLADDING DIAMETER 125±1 125±1 125±1 um
    CORE/CLADDING CONCENTRICITYERROR ≤0.5 ≤0.5 ≤0.6 um
    CLADDING NON-CIRCULARITY ≤1.0 ≤1.0 ≤1.0 %
    COATING NON-CIRCULARITY ≤6.0 ≤6.0 ≤6.0 %
    PRIMARY COATING DIAMETER 245±10 245±10 245±10 um
    PROOF-TEST LEVEL 100 (0.7) 100 (0.7) 100 (0.7) Kpsi/GN/m2
    FATIGUE COEFFICIENT ≥20 ≥20 ≥20
    TEMPERATURE DEPENDENCEBETWEEN 0°C ~ +70°C @ 1310 &1550NM  0.1  0.1  0.1  Db/km

    The fibers contain no splices.

    Mechanical Properties:

    Minimum Bending Radius: Under Installation: 25×OD
    During Operation: 12.5×OD

    Temperature Range:
    Operating Temperature Range: -40°C (-40 oF to +70°C (+158 oF)
    StorageTemperature Range: -50°C (-58 oF to +70°C (+158 oF)

    Maximum Crush Resistance:

    Long Term:300N
    Short Term:10000N Minimum
    Tensile Resistance: Under Installation: 1500N
    During Operation: 600N.
    Repeated Impact: 4.0 N.m (J
    Twist (Torsion): 180x10 times, 125xOD
    Cyclic Flexing: 25 cycles for armoured cables;
