    DVI Analog Cable(3 Coax, 7 Pair + 1Pair+5c)

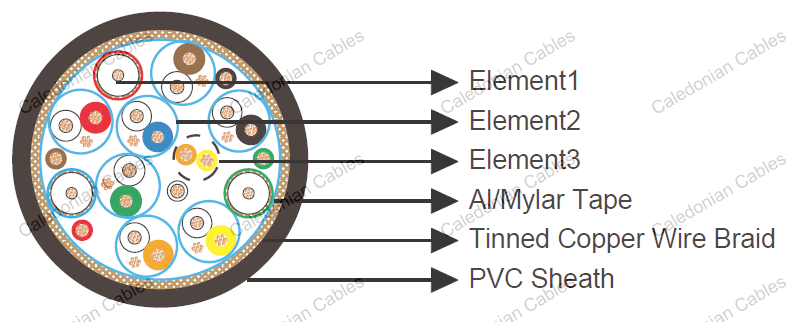

    Construction

    ELEMENT 1: 3 COAXIAL(CU/FOAM PE+SKIN/TC BRAID+ PVC)

    CONDUCTOR Stranded annealed tinned copper wire, 30AWG(7/38AWG)
    INSULATION Foam PE+Skin. Thickness 0.50mm. Outer diameter 1.37+0.05mm
    SHIELD Tinned copper braid, 0.1mm, 90% coverage
    SHEATH PVC, Thickness 0.219mm. Outer diameter 2.15mm
    SHEATH COLOR Green/Blue/Red

    ELEMENT 2: 7PRX28AWG(7/36AWG) STRANDED TC/FOAM PE+SKIN

    CONDUCTOR Stranded annealed tinned copper wire, 7/36AWG
    INSULATION Foam PE+Skin. Thickness 0.25mm. Outer diameter 0.98+0.05mm
    INSULATION COLOR Yellow and orange
    INDIVIDUAL SHIELD Aluminum/ mylar laminated tape applied with the metallic side down
    in electrical contact with a 28AWG tinned copper drain wire (7 strands
    formation).
    A 23 micron mylar tape is applied over the screening tape with a minimum
    25% overlap.

    ELEMENT 3: 1P+5CX28AWG(7/36AWG) STRANDED TC/PE

    CONDUCTOR Stranded annealed tinned copper wire, 7/36AWG
    INSULATION High density polyethylene. Thickness 0.12mm. Outer diameter 0.7+0.05mm
    INSULATION COLOR Black/Brown/Red/Green/White

    ELEMENT ASSEMBLY

    OVERALL SCREEN Aluminum/ mylar tape
    BRAID SHIELD Braid of tinned copper wire. 24x10x0.12mm
    OUTER SHEATH LSFROH elastomeric sheath,Thickness 0.51mm. Outer diameter 9.5
    +0.2mm, other materail is optional
    SHEATH COLOR Black or as per the client's requirement

    Physical Properties:

    Temperature rating: -25°C to +80°C
    Minimum bending radius: 3 x Overall Diameter

    Electrical Properties:

    Rated voltage: 30V
    Max conductor resistance at 20°C: 28AWG ≤237 Ohm/Km
    30AWG ≤376 Ohm/Km
    Min insulation resistance: ≥100M Ohm/m
    Nom. differential impedance: Pairs 100+15 Ohm
    Coaxial 75 Ohm

    Fire Performance in General:

    Vertical flame propagation for a single insulated wire or cable
    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)
    Vertical flame spread of vertically mounted bunched wires or cables
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804
    Low Smoke Emission
    EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816
    Halogen Free
    EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815
    Low Corrosivity (Acidity & Conductivity)
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813
    Low Toxicity
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    Smoke Index
    NF F 63 808; BS6853; NF F 16 101

    Fire Performance Relating to Rolling Stock Application:

    DIN 5510-2
    BS 6853
    NF F16 101
    NF F 63 808
