    Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant & Mud Resistant Composite Cable

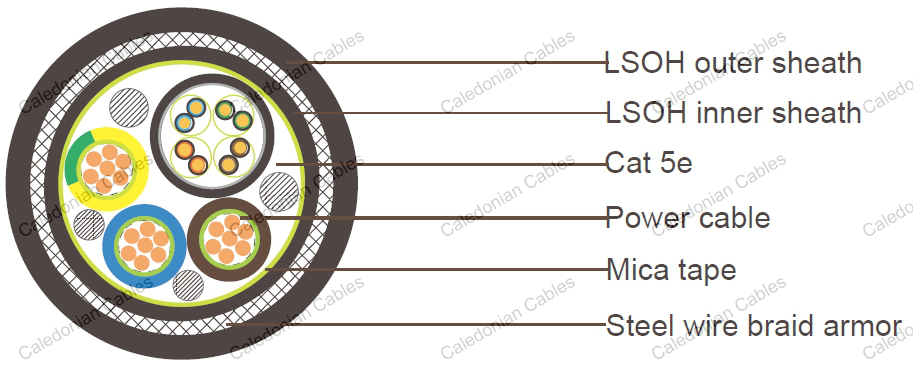

    Construction

    CAT5E 4x2x24AWG

    CONDUCTOR Solid copper conductor
    INSULATION Polyethylene/Silicone Rubber
    FIRE BARRIER Mica tape
    SHEATH FRLSZH sheath. Nominal outer diameter 9.5mm
    SHEATH COLOR Black

    3x2.5mm² Power Cable

    CONDUCTOR



    2.5mm² Stranded tinned copper wire



    FIRE BARRIER Mica tape
    INSULATION



    XLPE. Nominal outer diameter 5.0mm



    INSULATION COLOR Blue, Brown and Green/Yellow

    Element Assembly



    INNER SHEATH



    PE or PP material



    FIRE BARRIER Mica tape
    INNER SHEATH Thermoplastic SHF1, black, thickness 1.0mm
    ARMOR Galvanized steel wire braid, coverage 95%
    OUTER SHEATH SHF1/SHF Mud, thickness 1.5mm,nominal outer diameter 23.0±1.5mm
    SHEATH COLOR Black

    Electrical and Physical Properties @20°C:

    Cat5e

    Power Cable

    Electrical Resistance: 12.1Ohm/km
    Insulation Resistance: ≥5500 MOhmxkm

    Element Assembly:

    Min Bending Radius: 420mm
    Operating Temperature:-30°C/+80°C
    Fire Performance:
    Low Smoke Capacity: IEC61034-1/2
    Halogen Free: IEC60754-1/2
    Flame Propagation:IEC60332
    Fire Resistant:IEC60331
    Mud Resistant:NEK606
