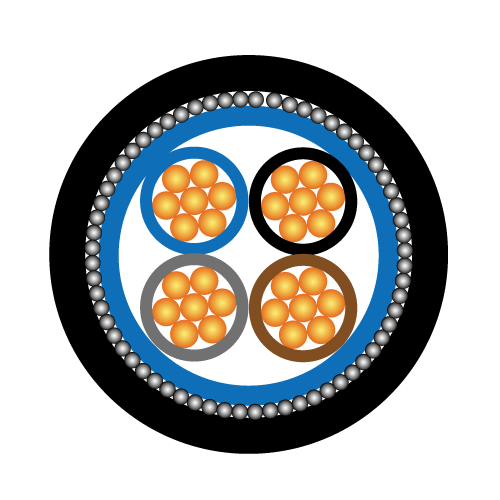

  • Fire Resistant Cables
  • EN50288-7 Cables

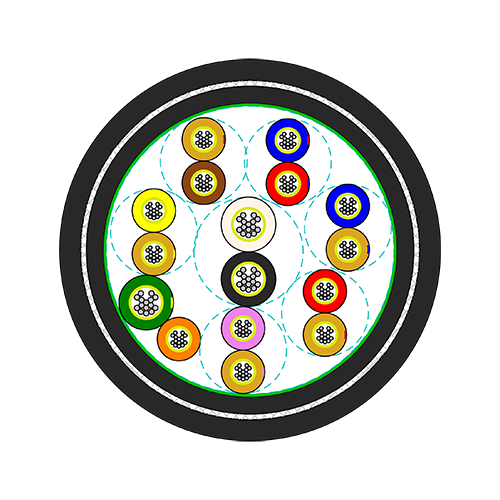

  • Composite Cables
  • EN50288-7 Cables

Certificate

  • Caledonian
  • Caledonian
  • Caledonian
  • Caledonian
  • Caledonian

Join the newsletter

Subscribe to get our latest content by email.

    We won't send you spam.

    Unsubscribe at any time.

    Tri-RG179

    Construction

    Inner conductor

    Silver plated copper covered steel

    7 x 0.10 mm

    Dielectric

    Solid PTFE

    Φ1.60±0.10mm

    Outer conductor(shield1)

    Silver plated copper (0.1mm)

    Φ2.15 0.10mm

    Inner sheath

    FEP

    Φ2.55±0.10mm

    Outer conducto (shield2)

    Silver plated copper (0.1mm)

    Φ3.15±0.10mm

    Outer sheath

    FEP

    Φ3.6±0.10mm

    Electrical & Mechanical Characteristics

    Impedance

    75±5 Ohm

    Nominal capacitance

    63 pF/m

    Velocity of propagation

    70%

    Insulation resistance

    -Mohm.Km

    Inner conductor resistance

    800.5 Ohm/Km

    Outer conductor resistance

    27.9 Ohm/Km

    Operatig Voltage(max)

    0.9 KV

    Test Voltage



    Operating temperature range

    -55°C - +200 °C

    Cable weight (approx.)

    31 Kg/Km

    Screening effectiveness

    >60 dB

    Attenuation

    Frequency (MHz)

    Attenuation (dB/100 m)

    Max. Attenuation(dB/100ft)

    100 28 8.5

    200

    39

    11.9

    400

    56

    17.1

    900

    85

    25.9

    1200

    98

    29.9

    1500

    110

    33.5

    1800

    121

    36.9

    2000

    128

    39

    2500

    144

    43.9
