    SF086C-FEP

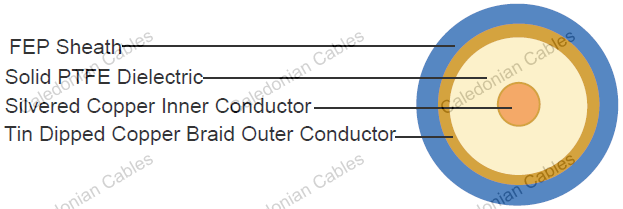

    Construction

    Inner conductor Silver plated copper Φ0.51 mm
    Dielectric Solid PTFE Φ1.68 ± 0.10 mm
    Outer conductor Tin Dipped Copper Braid Φ2.20 ± 0.10mm
    Shield coverage   100%
    Sheath FEP Φ2.69 mm

    Electrical & Mechanical Characteristics

    Impedance 50±2 Ohm
    Nominal capacitance 95 pF/m
    Velocity of propagation -
    Insulation resistance -
    Inner conductor resistance -
    Outer conductor resistance -
    Max. operating voltage 1.5KV
    Operating temperature range -55°C - +155 °C
    Min. bending radius 4 mm

    Attenuation

    Frequency (GHz) Max. Attenuation (dB/100m) Max. Attenuation (dB/100ft)
    0.5 49 15.0
    1 67 20.0
    5 164 50.0
    10 246 75.0
    20 360 110.0
