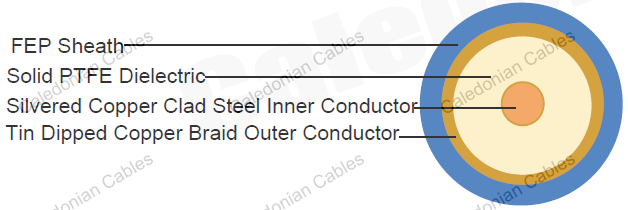

| Inner conductor | Silver plated copper clad steel | Φ0.51 mm |
| Dielectric | Solid PTFE | Φ1.68 ± 0.10 mm |
| Outer conductor | Tin Dipped Copper Braid | Φ2.20 ± 0.10mm |
| Shield coverage | 100% | |
| Sheath | FEP | Φ2.69 mm |
| Impedance | 50±2 Ohm |
| Nominal capacitance | 95 pF/m |
| Velocity of propagation | - |
| Insulation resistance | - |
| Inner conductor resistance | - |
| Outer conductor resistance | - |
| Max. operating voltage | 1.5KV |
| Operating temperature range | -55°C - +155 °C |
| Min. bending radius | 4 mm |
| Frequency (GHz) | Max. Attenuation (dB/100m) | Max. Attenuation (dB/100ft) |
|---|---|---|
| 0.5 | 49 | 15.0 |
| 1 | 67 | 20.0 |
| 5 | 164 | 50.0 |
| 10 | 246 | 75.0 |
| 20 | 360 | 110.0 |
